7-24
IM WX101-01E
Partial Expanded Display
Position (%)
Set the boundary for the partial expanded display. The range is from 1 to 99%.
Boundary
The conditions used to set the boundary vary depending on the measurement and
computation channels as follows:
• Measurement channel
When SCALE and SQRT are not used: Span L < boundary < span U
When SCALE and SQRT are used:
Scale L < boundary < scale U
• Computation channel
Span L < boundary < span U
Note
The partial expansion settings take effect when the partial expansion function is set to [Use] in
the [Aux] section of the [Setup] tab.
Display Color
You can select the display color of each channel from 16 colors.
Copying and Pasting Setup Data
The items checked in [Copy Details] can be copied and pasted. Click the channel
number to select the copy source or paste destination.
To select multiple channels to be copied, drag the channel number to specify the range
to be copied. To select multiple copy destinations, select the range in a similar fashion.

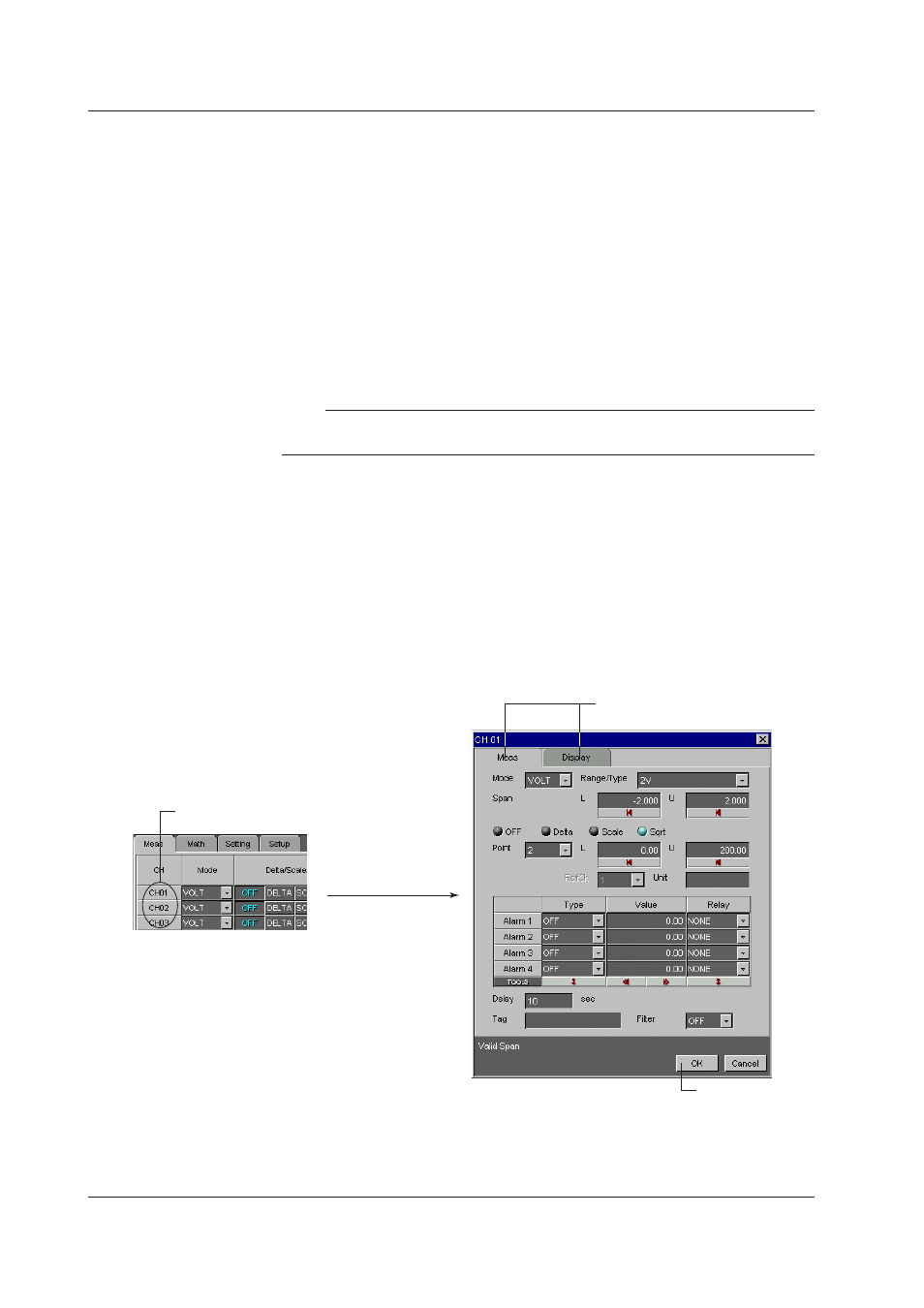

Setting One Channel at a Time
2. The channel setting
dialog box opens.
3. Select the tab of the item
to be configured.
4. After setting the
items, click here.
1. Double-click the
channel you wish to set.
The items in the measurement channel tab can be configured for each channel. The
items that are configured are the same as those configured on the spreadsheet. For
details, see the page corresponding to the item.
7.6 Setting DX100, DX200, MV100, MV200
