Setting the Recorder
Annunciator (Release number 3 or later)

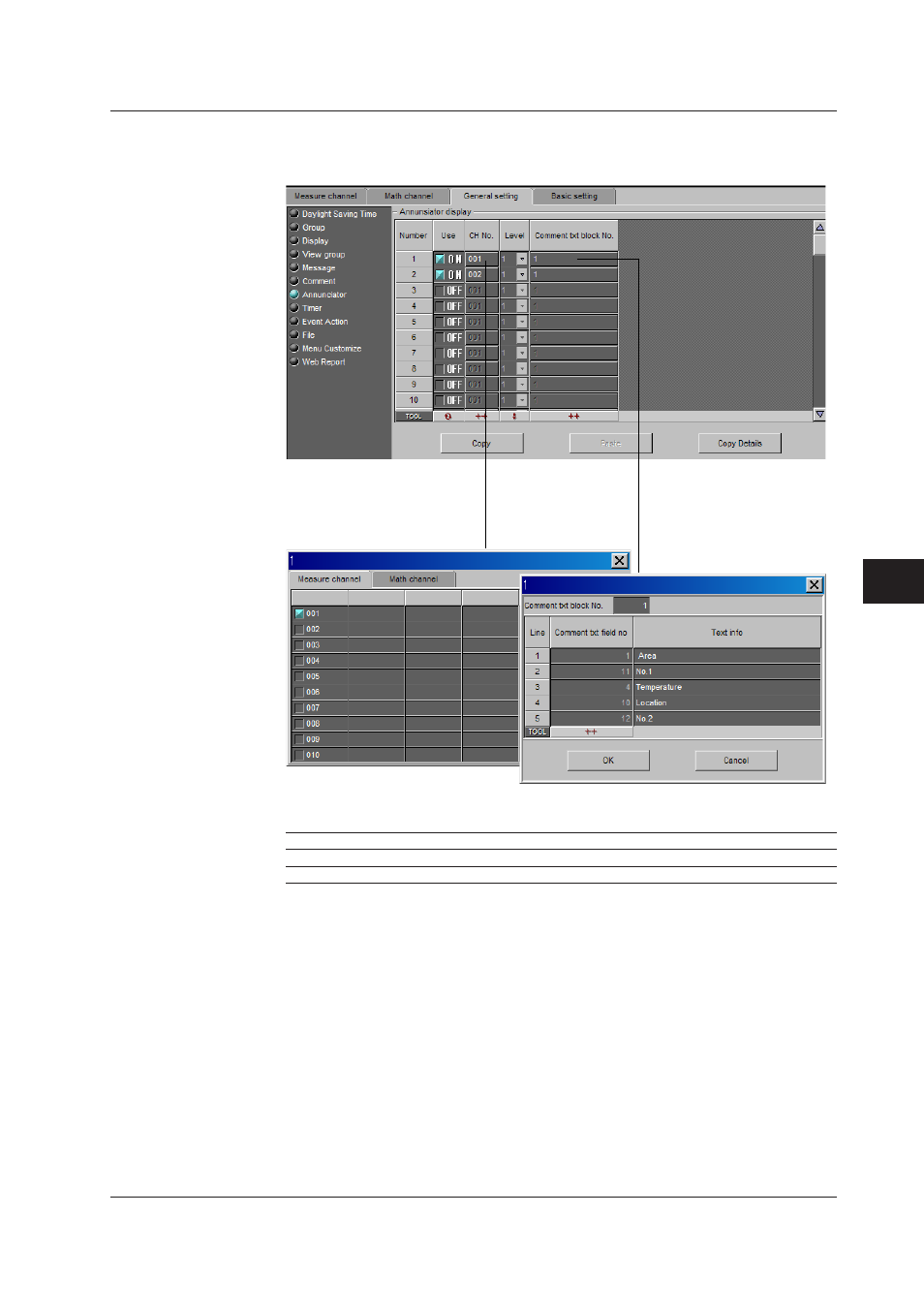

These settings are activated when the annunciator mode is set to [ON] (by accessing
[Basic Setting] > [Alarm] > [Alarm action] > Annunciator mode]).
Click here to open the channel
selection dialog box
Click the desired channel
numbers to select them
Click here to open a dialog box
for specifying a comment text
block
Enter values in the [Comment
txt block no] boxes, check the
character strings that appear,
and click OK
Number
The position of the annunciator window.
Model Displayed Windows
DX1000 24 or less
DX2000 80 or less
Use
Set the annunciator position that you want to use to [ON].
Starting with 1, consecutively set all annunciator positions that you want to use to [ON].
After a position has been set to [OFF], all of the positions after it will also be turned off
even if they are set to [ON].
CH No. and Level
You can assign alarms to annunciator windows by specifying channel numbers and alarm
levels.
You can set [Level] to [1], [2], [3], [4], or [All]. If you select [All], all of the alarms in the
specified channel are assigned to the specified window.
Comment txt block No.
You can select a text string (label) to display in the annunciator window by selecting a
comment text block number.
