Setting the Recorder

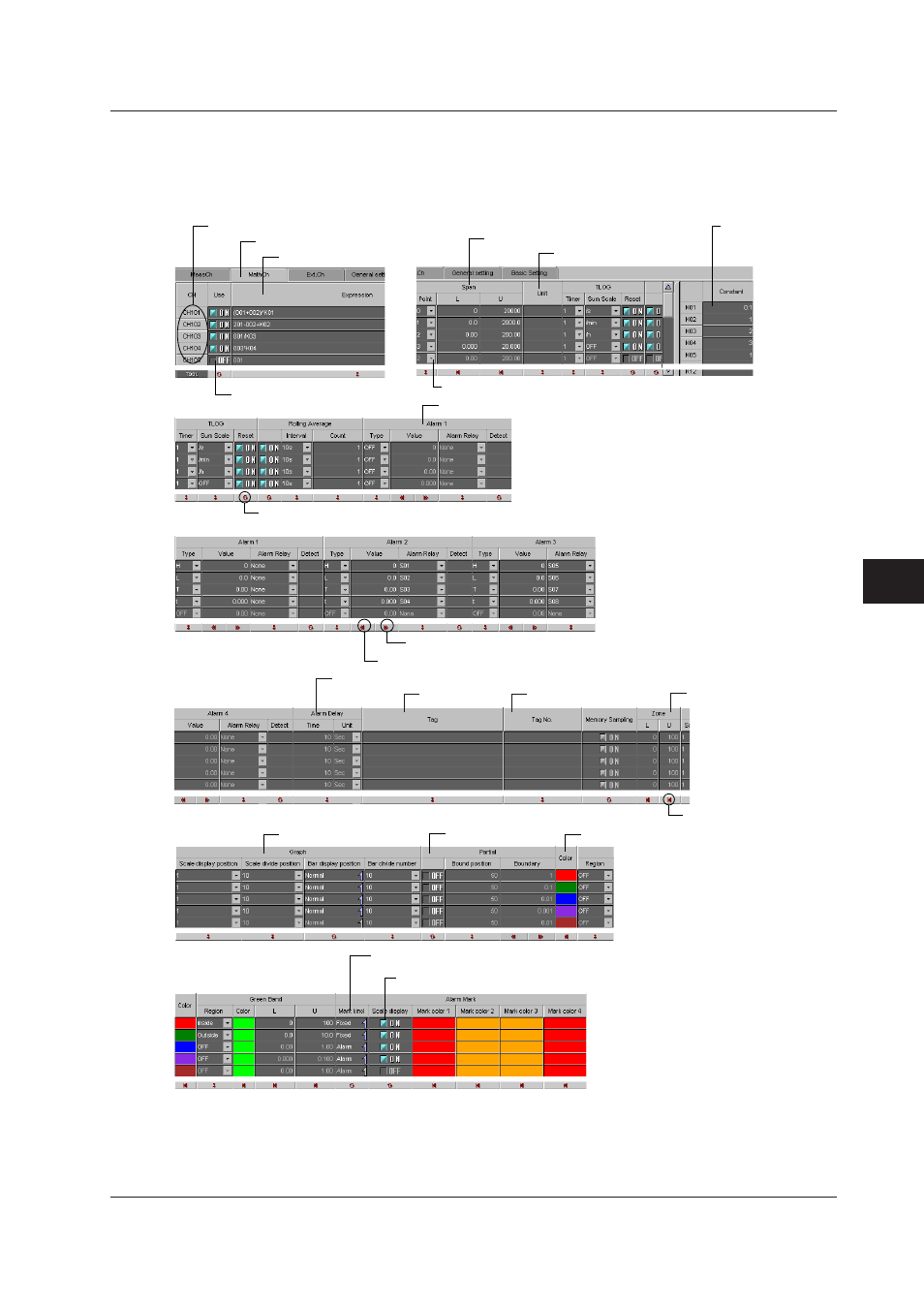

Setting the Computation Channels
Double-clicking the “CH” cell in this panel opens the “Channel Setting” dialog box (see
page 7-52) for input. You can input from either the panel or the dialog box.
Double-click when setting each channel
Select this tab
Set the alarm
Set the graph Partial expansion Display color
Turn ON/OFF computation
Select the number of digits to the right the decimal
Enter the expression
Set the display span
Enter the unit
Enter the constant
to be used in the
expression
Select the mark type
Turn ON/OFF scale display
Turn ON/OFF all at once
Set he value to the maximum value possible
Set the value to the minimum value possible
Initialize
Enter the tag
Enter the alarm delay time
Enter the tag number Display zone
7.7 Setting DX1000/DX2000
