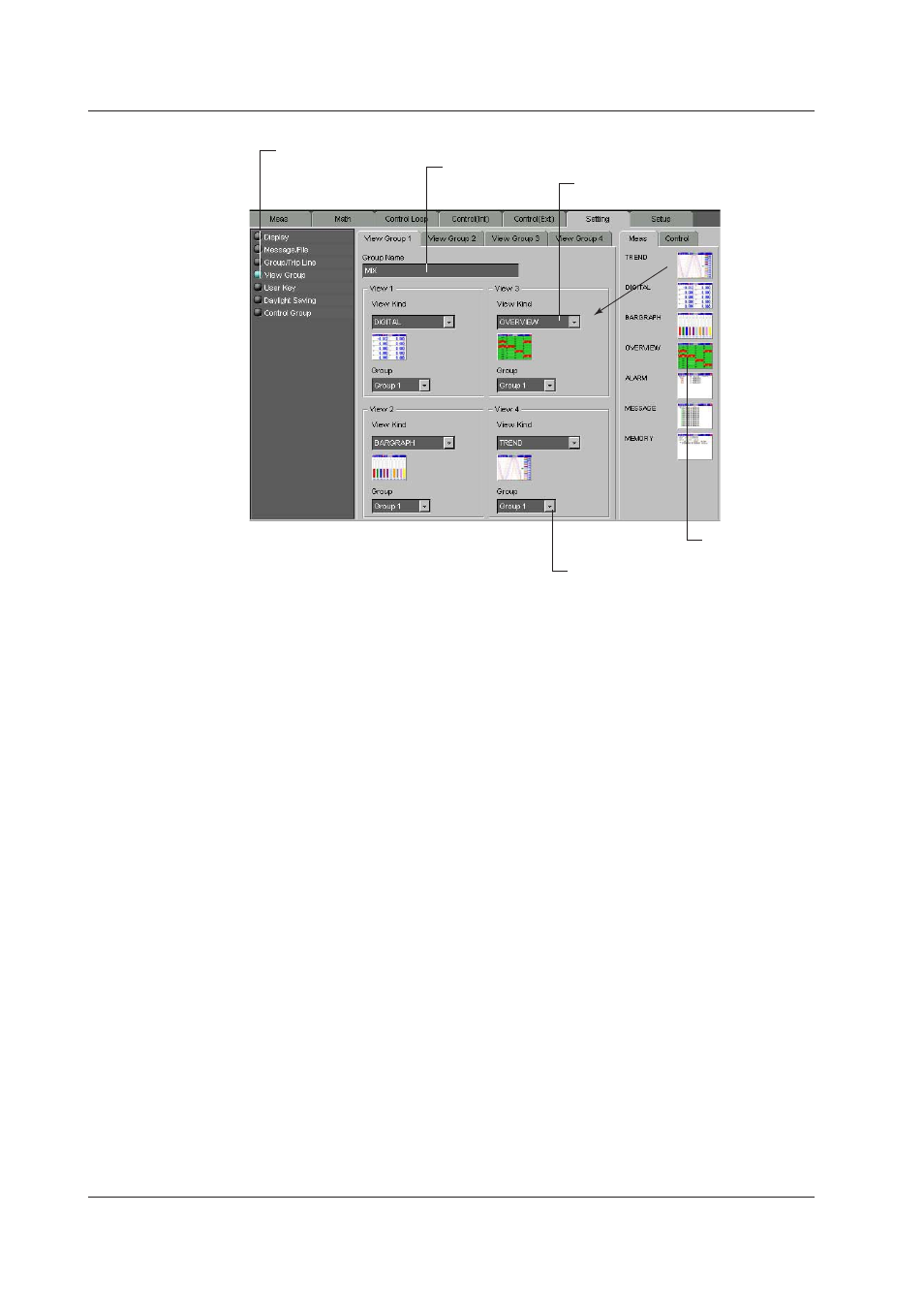

View Group (only for CX2000)
Click here. (Or choose the [Setting] menu - [SET [Regular] Setting].)
Specify a view group name
Select or drag from the right the type of
screen to be displayed.
Select the group to be displayed.
Type of screens
available.
View Groups
Up to four view groups can be registered.
Group Name
Use up to 16 characters can be entered for the group name. The group name appears
as a sub menu of the [4 PANEL] display of the CX2000.
View Kind
The view group consists of four views. Select the type of screen to display in each view.
On 0 measurement channel models, the OVERVIEW view kind cannot be selected
without the option installed.
Group
Depending on the type of view selected, the group displayed varies. When selecting a
view from the [Meas] tag, select the group from the measurement groups (Group 1 to
10). When you selecting a view from the [Control] tag, select the group from the control
groups (Group 1 to 8).
7.10 Setting CX Series
