4-14 IM WX101-01E
Note
Displayed trip points and grid are those for the Y-axis scale displayed in the most right of the
Y-axis display area.
Limiting the display
Set the style in which to display the portion of the waveform that extends off the
waveform display area.
Procedure

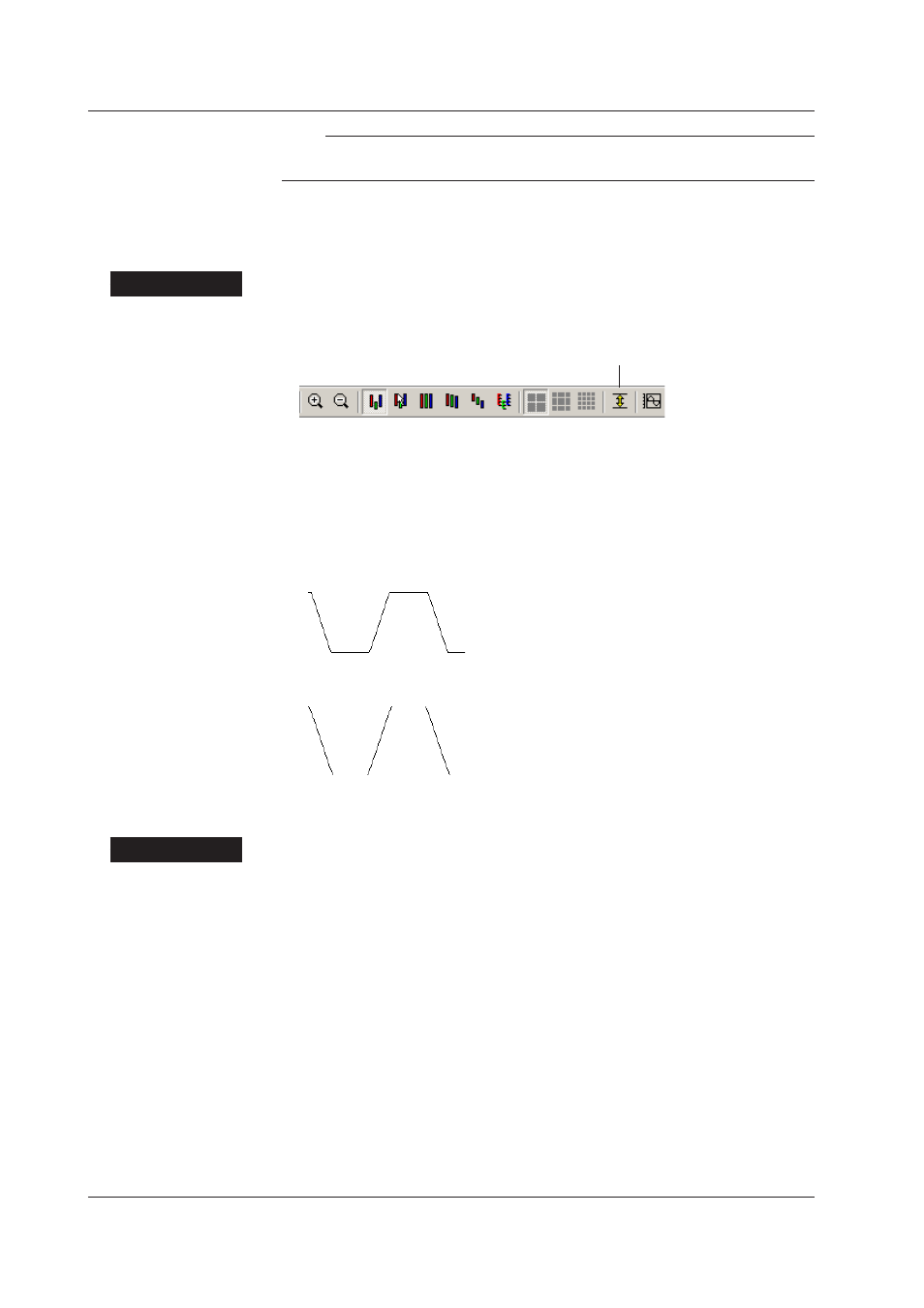

1. Click the “Clip” button on the toolbar or select “Y-Axis” from the menu bar then select
“Clip.”
Clip button
The waveform display range along Y-axis is limited to the minimum and maximum
scale values set in the “General Display Settings” dialog box. The measured
values are displayed so that the values smaller than the minimum scale value attach
themselves to the minimum scale value and those larger than the maximum scale
value attach themselves to the maximum scale value.
• Display example in which the display limit is set
• Display example in which the display limit is not set
Turning ON/OFF the waveform display
To observe a certain waveform more clearly, turn OFF other waveform displays.
Procedure
1. Click the “Waveform display ON/OFF” button of the waveform you wish to turn ON
(blue)/OFF (gray).
(The buttons are located under the corresponding zone bars.)
4.3 Changing the Viewer Window
