Setting the Recorder
7.8 Setting MV1000/MV2000

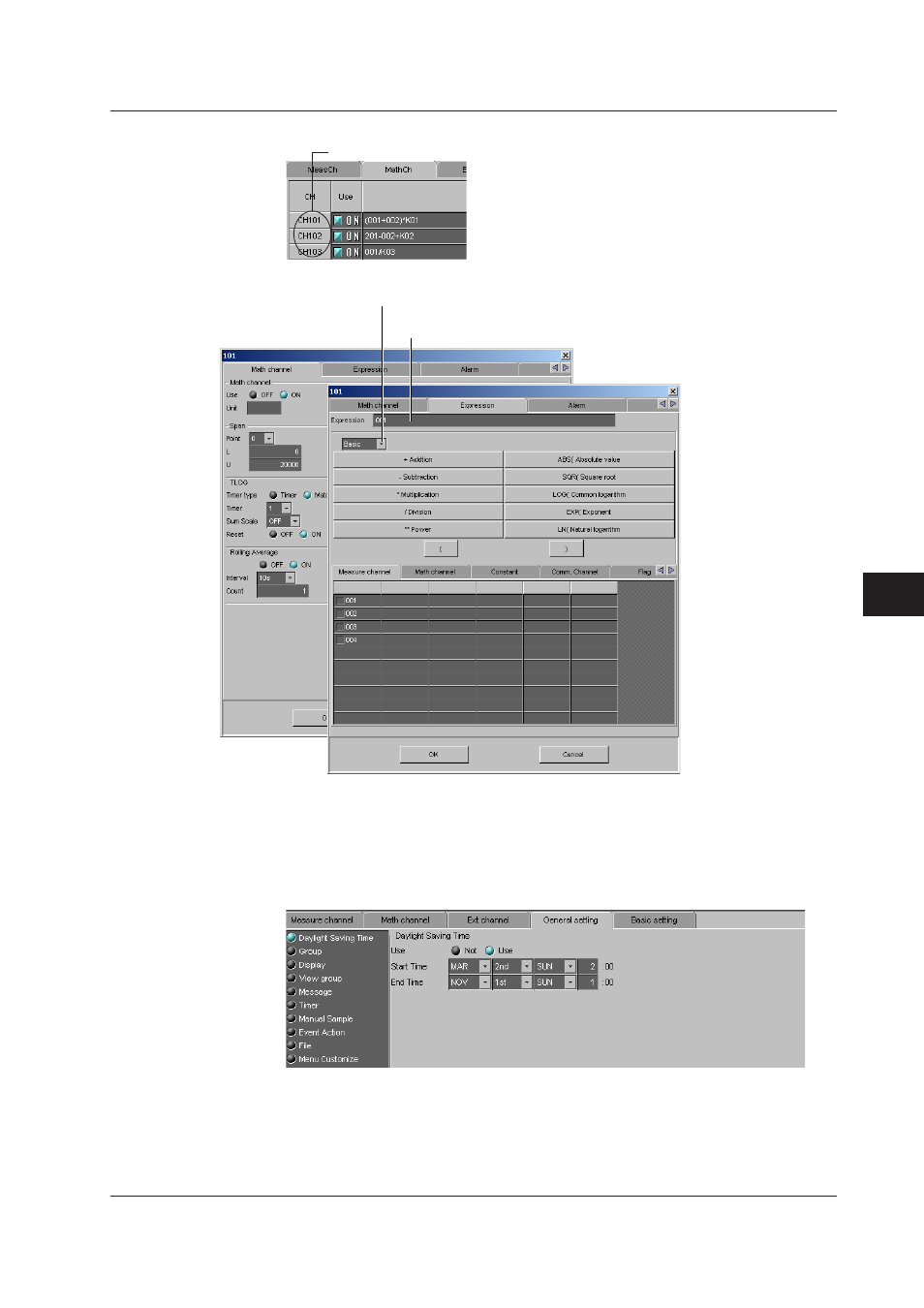

Setting One Computation Channel at a Time
2. The channel setting dialog box opens.
1. Double-click the channel you wish to set.
Clicking here and selecting the list of operators switches the display
Select channels on the Measure channel, Math channel, and Ext channel
tabbed pages and select desired operators to create an expression.
The items in the math channel tab can be configured for each channel. The items that
are configured are the same as those configured on the spreadsheet. For details, see
the page corresponding to the item.
Entering General Settings
Summer Time
On/Off To switch between summer time and standard time, select [On].
Start Time Specify the date/time to switch from standard time to summer time. Set the
month, the nth week, the day of the week, and the time.
End Time Specify the date/time to switch from summer time to standard time. Set the
month, the nth week, the day of the week, and the time.
