7.9 Setting DARWIN
Changing any of the system configurations, will result in initialization of Hardware
Configurator settings. Therefore, perform system configuration before making any other
settings.
If you wish to change the module configuration, see “Changing Module configuration.”
Selecting Setting Screen
Settings screen contents differ depending on whether a DA100, DC100, or DR is the
object. Select a setting screen by selecting Settings > SET (Regular) Settings, or
Settings > SETUP (Basic) Settings, followed by the desired setting item; or by clicking a

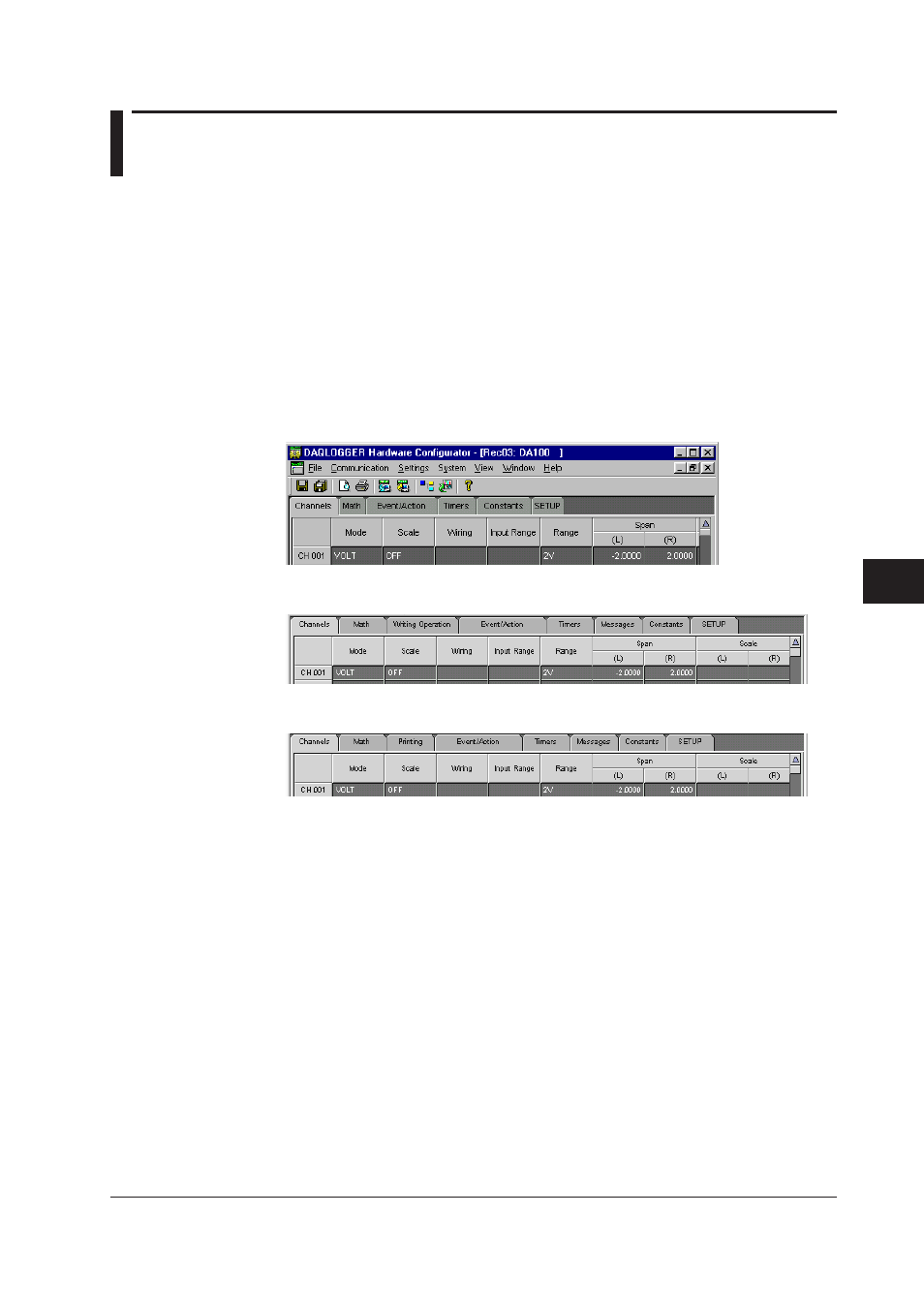

contents tab. Below examples of instrument setting screens.
DA100
DC100
DR
For details on each setup item, see the respective recorder manual.
Setting Input Range, Span, and Linear Scaling
Double-clicking the “CH” cell in these panels opens the “Channel Setting” dialog box for
inputting values. You can enter values in either the panel or the dialog box.
