Using Historical V
iewer

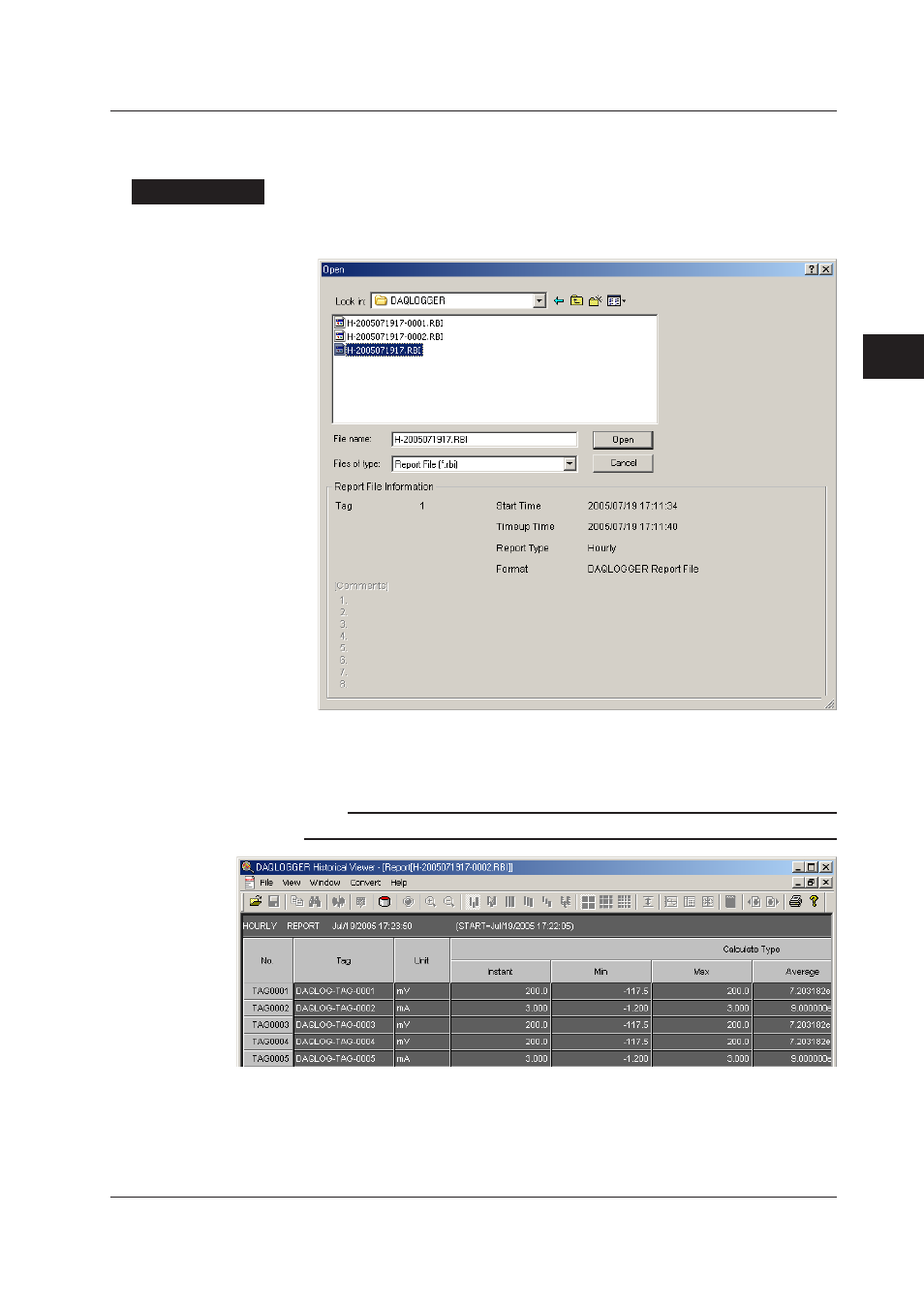

Displaying the binary report file data
Data in a binary report file is displayed in a sheet.
Procedure
1. Carry out the step 1 operation in “
Opening a saved data file” (P.4-2) to open the
“Open” dialog box.
2. Select the file type of binary report file (file extension: .rbi) to list the file names.
3. Select the file you wish to open from the file list, then click the “Open” button.
The report data is displayed in a sheet.
Note
You can convert and print the binary report file data, but it cannot be edited.
4.1 Displaying Waveforms on the Viewer Window
