3-14 IM WX101-01E

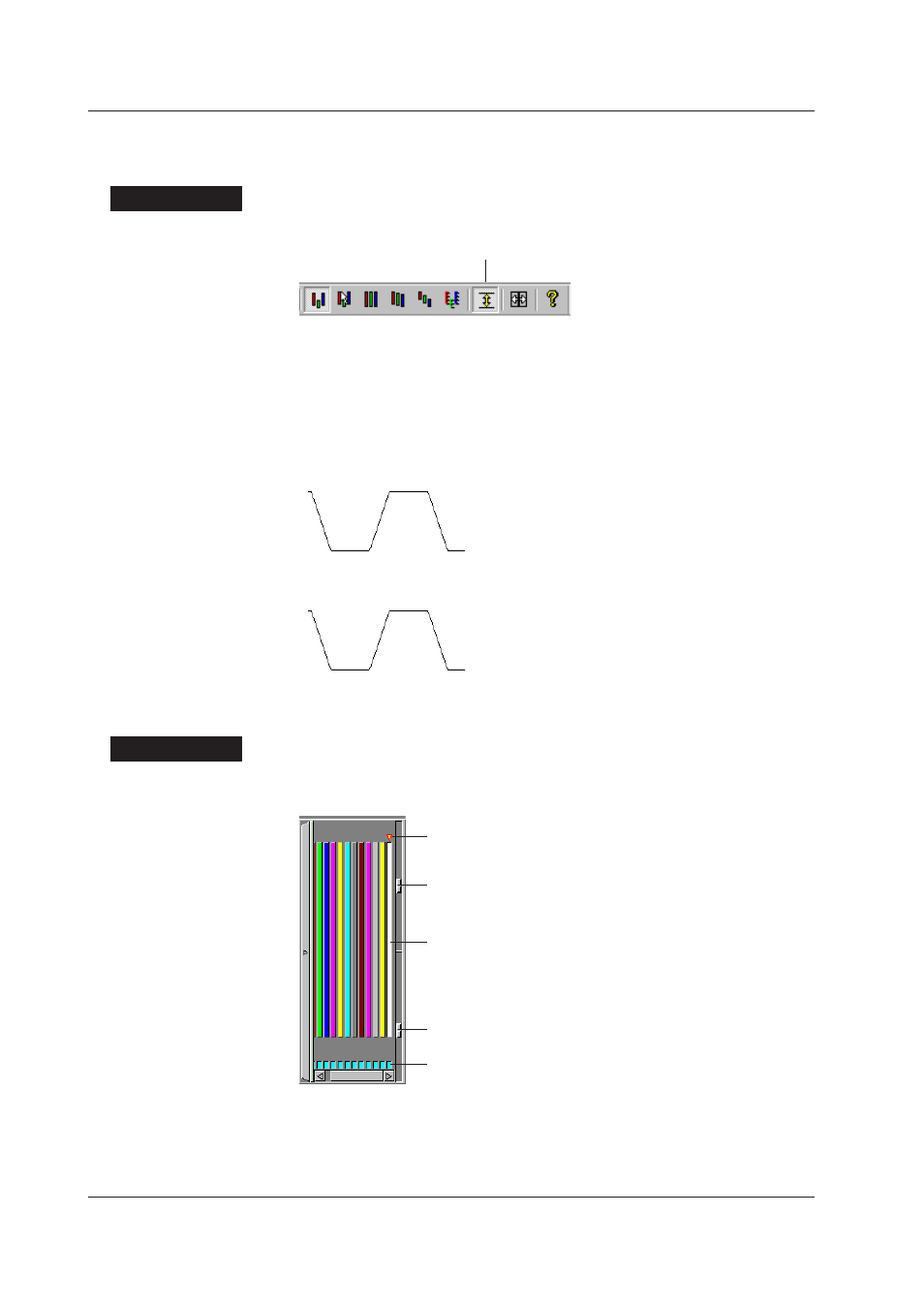

Limiting the display
Set the style in which to display the portion of the waveform that extends off the
waveform display area.
Procedure
1. Click the “Clip” button on the toolbar or, from the menu bar, select “Y-Axis” then “Clip.”
Clip button
The waveform display range along Y-axis is limited to the minimum and maximum
scale values set in the “Display Settings” dialog box. The measured values are
displayed so that the values smaller than the minimum scale value attach themselves
to the minimum scale value and those larger than the maximum scale value attach
themselves to the maximum scale value.
• Display example in which the display limit is set
• Display example in which the display limit is not set
Turning ON/OFF the waveform display
To observe a certain waveform more clearly, turn OFF other waveform displays.
Procedure
1. Click the “Waveform display ON/OFF” button of the waveform you wish to turn ON
(blue)/OFF (gray).
Current waveform indicator
Adjust the brightness of the grid
Zone bar
Adjust the brightness of the waveform display area
Waveform display ON/OFF button
3.3 Changing the Display Settings of Monitor Windows
