7-220 IM WX101-01E
KIND
Select the loops numbers, measurement channel numbers, or DIO numbers (Style 3
or later) you want to assign to a Group. For the CX1000, you can select 1 or 2 internal
loops and 1 to 4 external loops. For the CX2000, you can select 1 to 6 internal loops, 1
to 16 external loops, and 1 to 36 DIOs.
Group1 consists of up to 4 types on the CX1000, or up to 6 types on the CX2000
corresponding to the control loops and measurement channels.

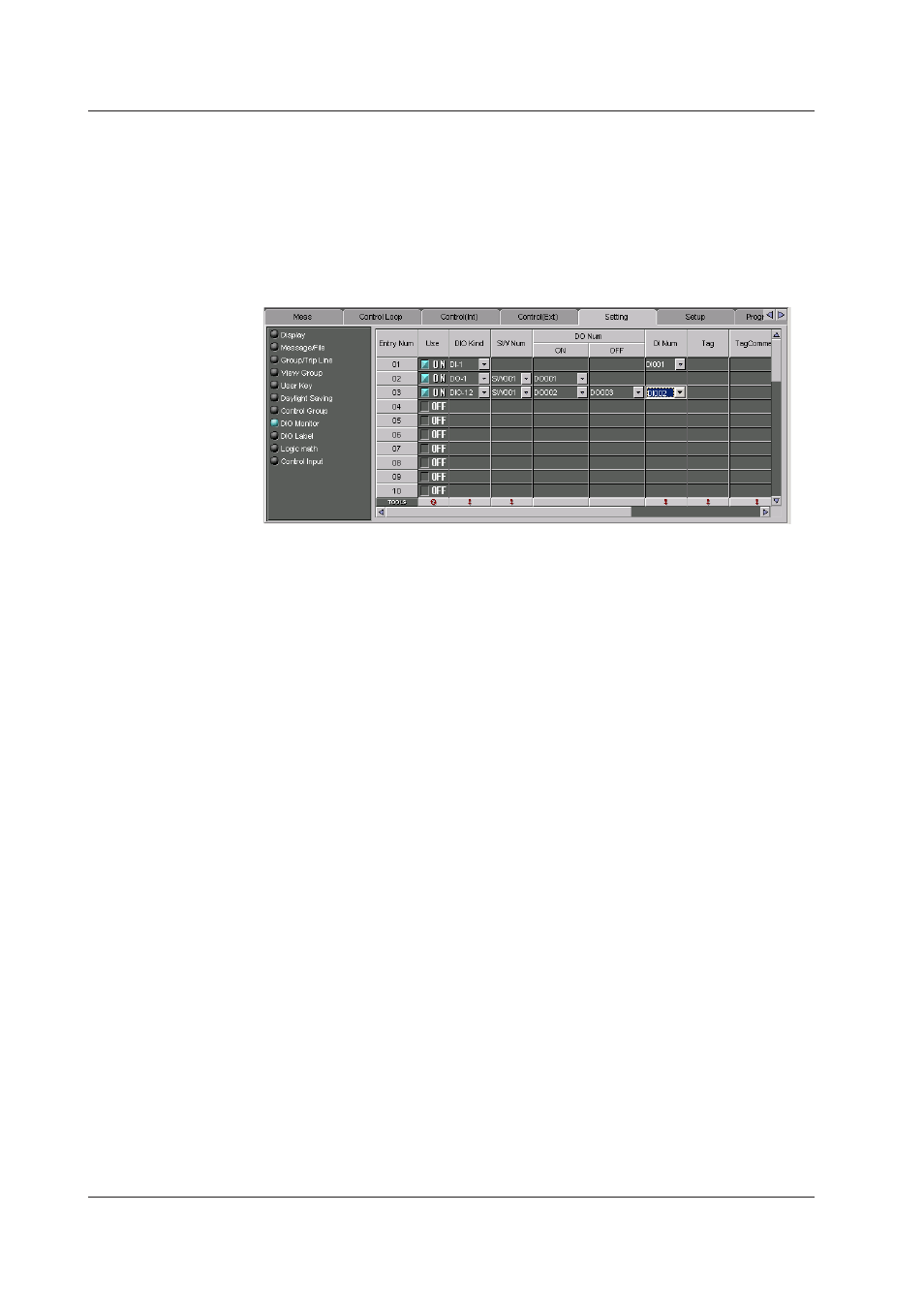

DIO Monitor (CX Style Number S3 or Later)
Entry Num
Set the value in the range from 1 to 36.
Use
Turn ON/OFF the specified DIO entry number.
DIO Kind
Set the method of DIO monitor.
DI-1: Indicates the DI input status. The internal switch status is not output.
DO-1: Outputs the internal switch status using a single DO. If the internal switch is
ON, 1 (ON) is output. If it is OFF, 0 (OFF) is output.
DO-2: Outputs the internal switch ON/OFF status using separate DOs. If the
internal switch is ON, 1 (ON) is output from the ON output DO. If it is OFF, 0
(OFF) is output from the OFF output DO. If the internal switch is OFF, 1 (ON)
is output from the ON output DO. If it is OFF, 0 (OFF) is output from the OFF
output DO.
DIO-11: Displays the input status of the specified DI as well as operates in the same
fashion as D0-1.
DIO-12: Displays the input status of the specified DI as well as operates in the same
fashion as D0-2.
DO-2P: Outputs the internal switch ON/OFF status using separate DOs. If the
internal switch is ON, a pulse signal of 1- to 2-second pulse width is output
from the ON output DO. If it is OFF, a pulse signal of 1- to 2-second pulse
width is output from the OFF output DO
DOI-12P: Displays the input status of the specified DI as well as operates in the same
fashion as D0-2P.
SW Num
Set the internal switch number to be assigned to the DO.
7.10 Setting CX Series
