Setting the Recorder
Setting the Computation Channels

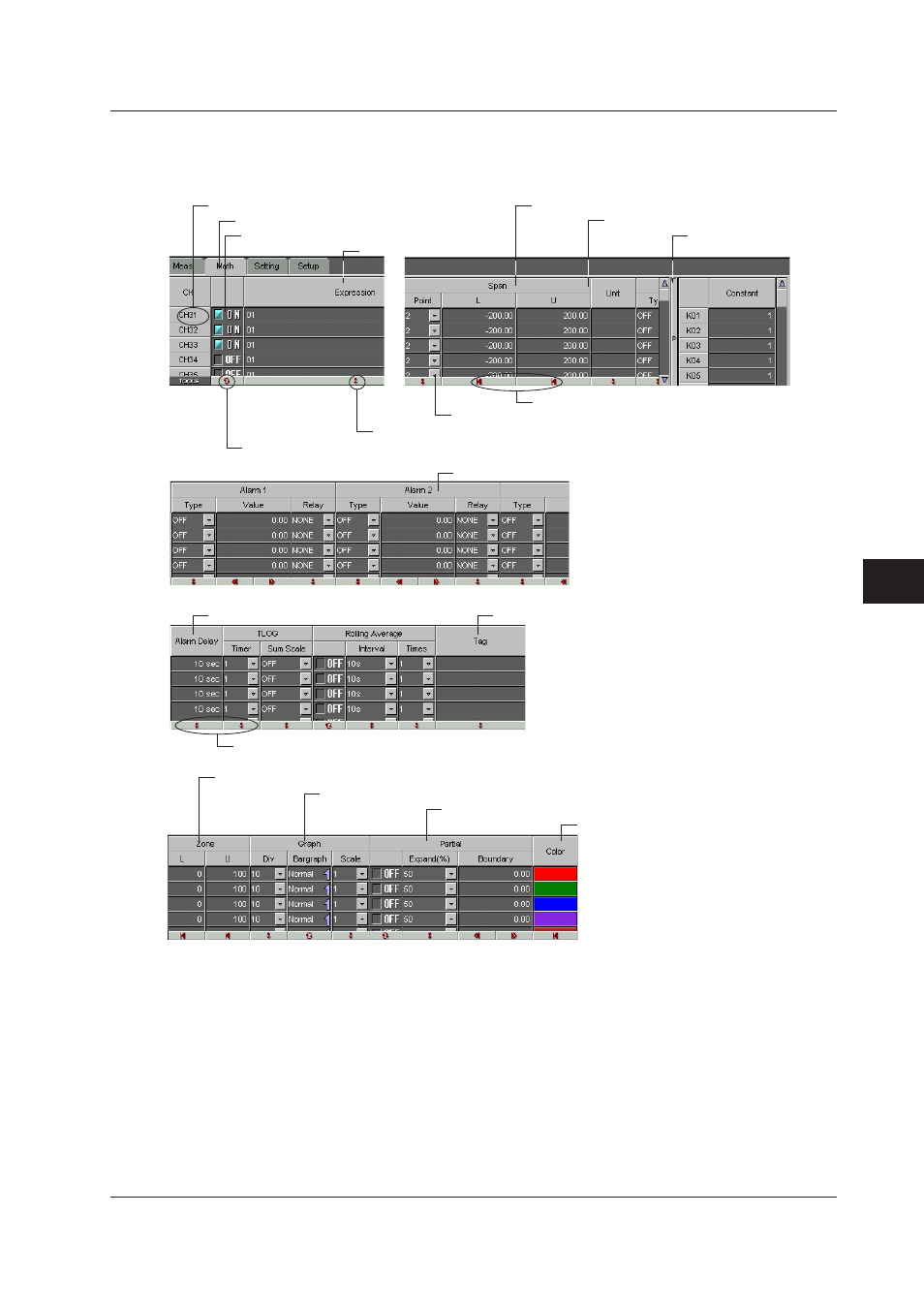

Double-clicking the “CH” cell in this panel opens a dialog box for input.
You can input from either the panel or the dialog box.
Double-click when setting each channel
Select this tab
Set the alarm (section 3.2)
Enter the tag (section 3.2) Enter the alarm period
Display zone (section 3.2)
Set the graph (section 3.2)
Partial expansion (section 3.2)
Display color (section 3.2)
Turn ON/OFF computation
Select the number of digits to the right the decimal
Enter the expression
Set the display span (6 characters or less)
Enter the unit
Enter the constant to be
used in the expression
Turn ON/OFF at once
Copy the settings of the first channel in the selected range to
all other channels
Initialize
Copy the settings of the first channel in the selected range to all other channels
Turning ON/OFF Computation
Select whether or not to perform computation for each channel.
Expression
Enter the expression using up to 40 characters. For details related to the expression,
see the DX100/DX200/DX200C/MV100/MV200 User’s Manual.
Display Span
Sets the upper and lower limits of the display.
The range is from –9999999 to 99999999. Set the number of digits to the right the
decimal to four digits or less.
