Setting the Recorder
Aux
Set the handling of the DO and internal switch when the communication buffer recovers
and the auto recovery of the communication with the Modbus master and Green Series
controller. These items are valid when serial communication is installed.

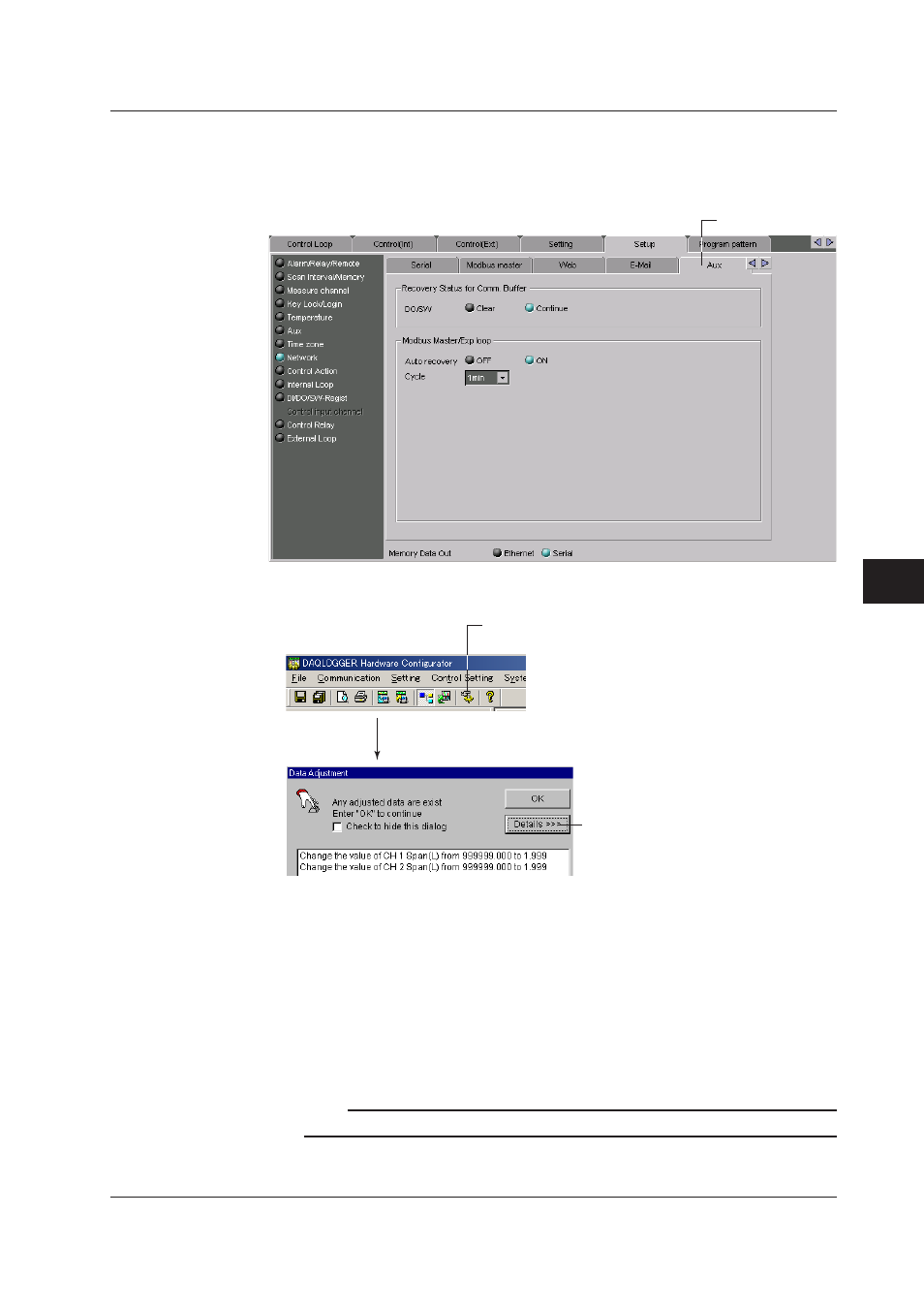

Click this tab
Setup Data Adjustment
2. If the data is not consistent,
the following dialog box opens.
1. Click here. (Or choose the [System]
menu - [Data Adjustment].)
Click here to display the correction list.
Checks whether the specified setup is consistent with the actual system. If not, the data
is automatically corrected.
Data is corrected in the following cases:
• When values of items of the Meas/Math tab are outside the specified range.
• When an invalid character string is used.
[Data Adjustment] Dialog Box
If [Data Adjustment] Dialog on the [View] menu is checked, the [Data Adjustment] dialog
box opens when data is not consistent checking data or transmitting data.
Note
Perform the data check before sending the new setup data to the CX.
