8-8 IM WX101-01E

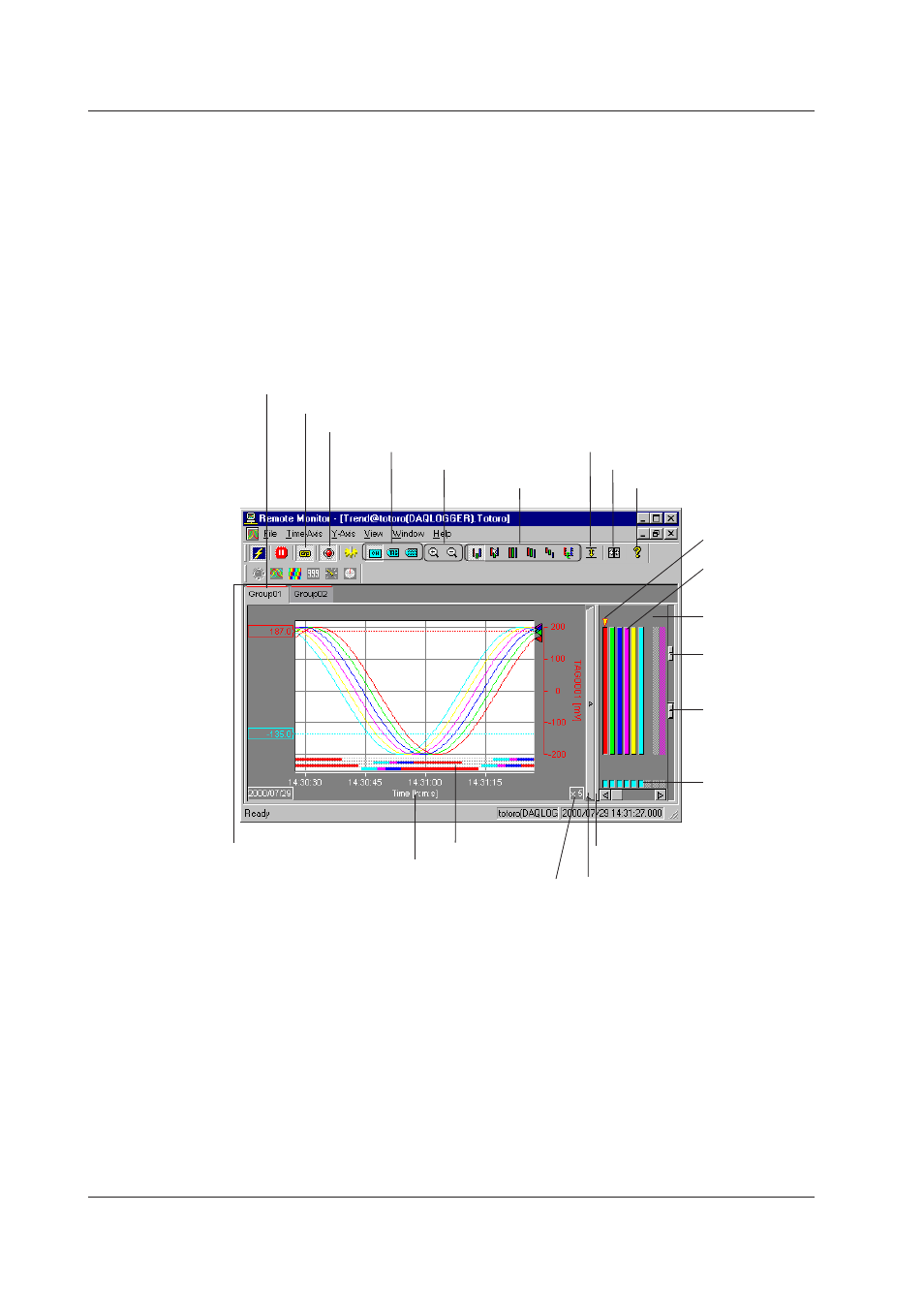

Trend Monitor
For the operating procedure, see “Changes Common to Monitor Windows” and “Trend
Monitor” in section 3.3, “Changing the Display Settings of Monitor Windows.”
For operations using the cursor, see section 3.4, “Using the Cursors.”
For details on general display settings, see “Setting the Display Conditions” in this
section (page 8-13).
However, the following operations are different.
Switching tag number/name display
1. To display tag numbers, select “Tag No.” or “Channel No.” from the “View” menu or
click “Tag No.” or “Channel No.” on the toolbar.
To display tag names, select “Tag Comment” from the “View” menu or click “Tag
Comment” on the toolbar.
Turn ON/OFF
waveform display
Select the displayed group
Turn ON/OFF the link
Turn ON/OFF the alarm indication
Switch tag number/tag name
Zoom in or out of the time axis
Waveform display zone
Waveform display limit (clip)
Cursor value display button
Display version information
Current waveform
mark
Zone bar
Zone display area
Adjust the grid
brightness
Group alarm condition Alarm indication
Absolute or relative time
Zoom factor Show/Hide condition of the zone
display area
Drag this bar to adjust the width of
the waveform display area
Adjust the
brightness of the
waveform display
area
8.2 Monitoring the Data
