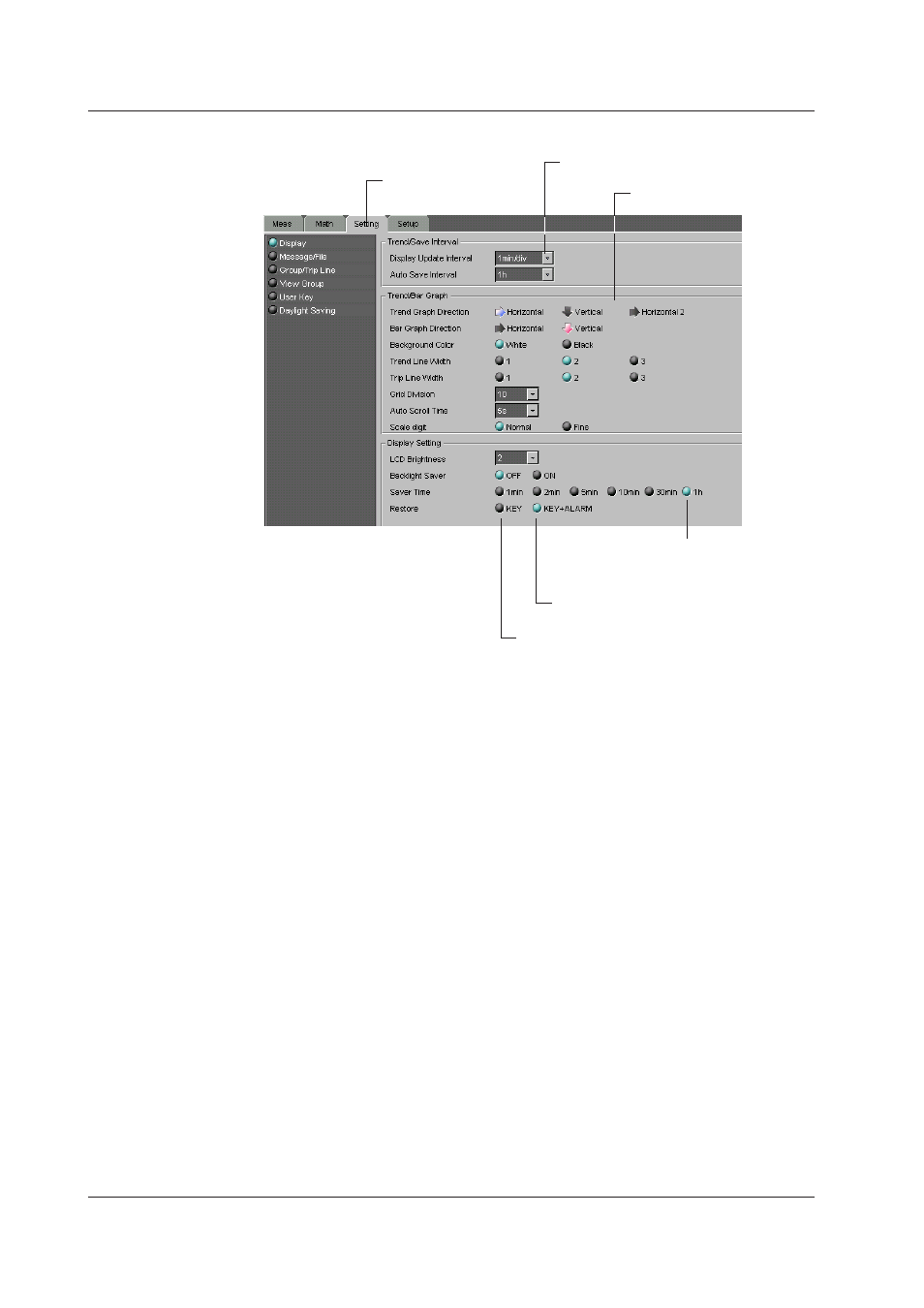

Screen Display
Select this tab
Select the time per 1 division
Select the display format of
the trend and bar graph
Recover by a key operation
Recover by a key operation
or alarm occurrence
The screen saver function is activated,
when there is no key operation or alarm
occurrence for the specified time period.
If you selected MV100 in the “System Configuration” dialog box, “User key” on the “Setting”
page will not be displayed.
Display update interval
You can select the display update interval from 15 sec/div
*1
, 30 sec/div
*1
, 1 min/div, 2
min/div, 5 min/div, 10 min/div, 20 min/div, 30 min/div, 1 h/div, 2 h/div, 4 h/div, and 10
h/div
*2
.
*1 Can be specified on the DX102, DX104, DX204, DX208, DX204C, DX208C, MV102,
MV104, MV204, and MV208 style number S4.
*2 Can be specified on the DX and MV style number S4.
Auto save interval
The auto save interval can be specified when the [Save] is set to [Auto] (see page 8-17)
and the data type is set to [DISPLAY] or [EVENT&DISP] in the memory sample section
of the setup tab.
Auto scroll time
This is the time period used to automatically switch the displayed group. It can be
specified when the style number of the DX or MV is S2 or later.
Scale Display Digits
Select [Normal] or [Fine].
Fine If the scale value is displayed with two digits, it can be changed to three digits.
7.6 Setting DX100, DX200, MV100, MV200
