7-19 IM WX101-01E
1
2
3
4
5
6
7
8
9
Index

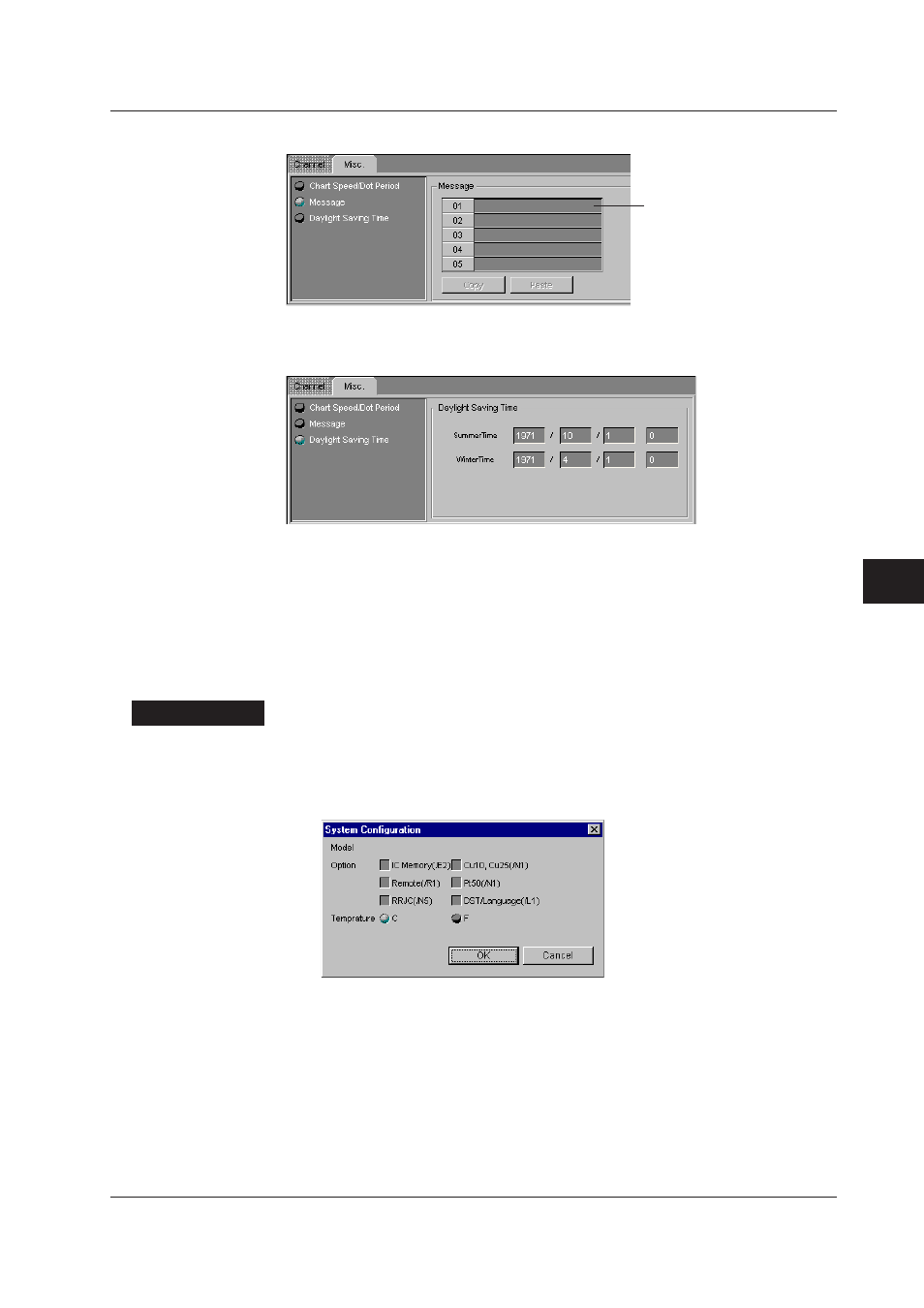

Setting the Recorder
Message
Up to 16 characters
Daylight Saving Time
Set the “Summer Time” and “Winter Time.”
Changing µR system configuration
If necessary, change the system configuration such as the presence or absence of
options to match the µR that is to be configured.
Changing the system configuration initializes the settings of the SET mode and SETUP
mode. Perform changes in the system configuration first.
The changes in options are reflected in the “Recorder List” window.
Procedure
1. Open the setting window of the µR of which the system configuration is to be
changed, and select “System Configuration” from the “System” menu of the
“DAQLOGGER Hardware Configurator” window. The “System Configuration” dialog
box opens.
2. Set the model, options, etc. to match the µR.
3. When you finish setting the parameters, click “OK.” The setup parameters are
applied to the setup items in the tab panel.
7.5 Setting µR Series
