Setting the Recorder

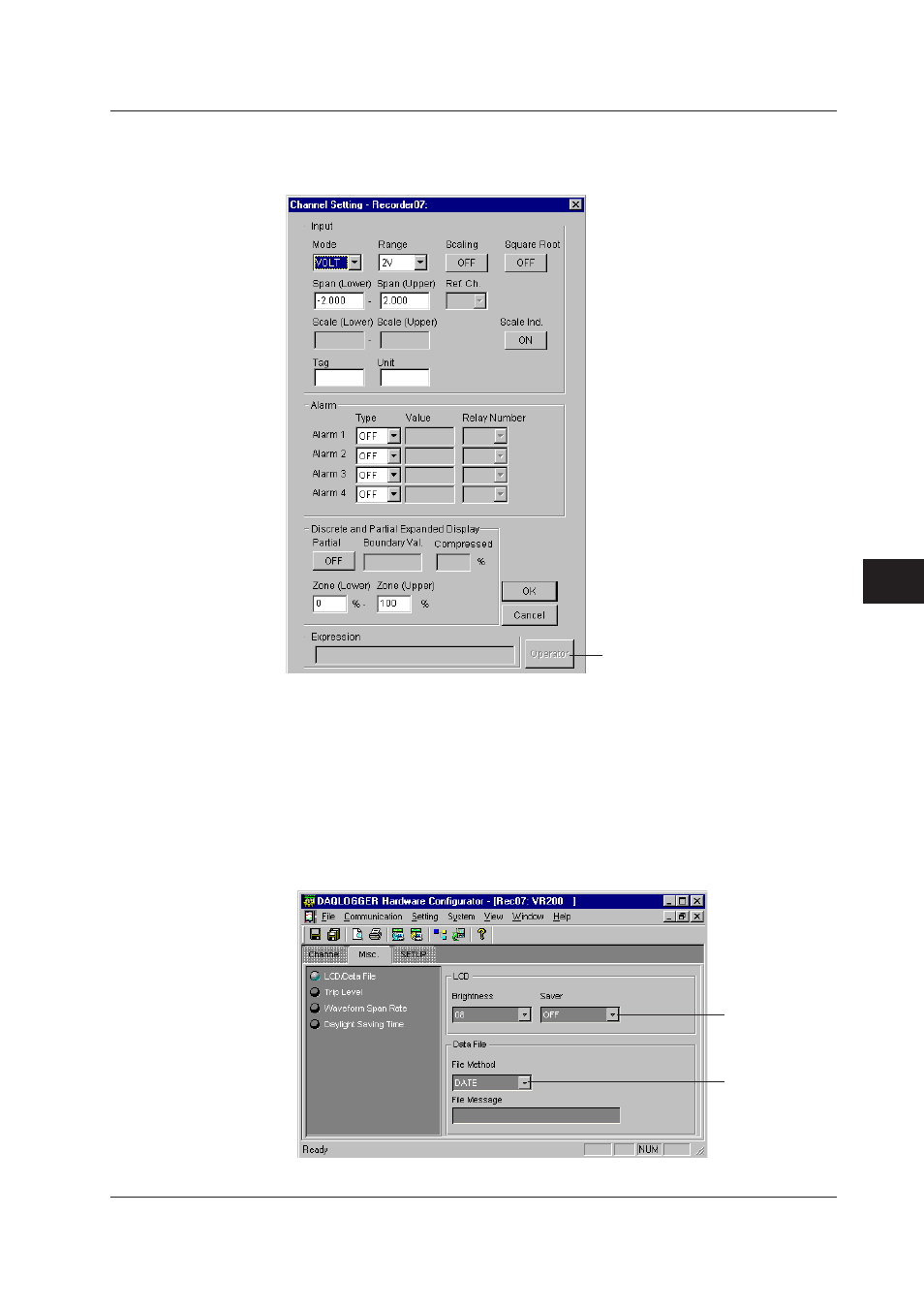

“Channel Setting” dialog box
This dialog box is designed to facilitate the input operation of the “Channel” tab panel. It
appears when you double-click the “CH” cell in the “Channel” tab panel.
Pressing the “Operator”
button shows the dialog
box to select operators
when “Mode” is set to
“MATH”
“Misc.” tab panel
From this panel, set items regarding LCD, data file, trip level, wave span rate, and
messages.
The display contents are switched by selecting an item listed in the left part of this panel.
• LCD/Data File
Set the brightness of the LCD, the function to dim the backlight when there is no key
operation for a certain period of time, and how the file is named when saving a data
file to the floppy disk.
The backlight will
be dimmed when
there is no key
operation for the
time period set
here.
Select how the file
is named when
saving a data file
to the floppy disk.
