Setting the Recorder
7.4 Setting VR Series
Changing any of the system configurations, will result in initialization of Hardware
Configurator settings. Therefore, perform system configuration before making any other
settings.
Editing the Settings
Open the setting window of VR100, VR200, or VR200 S2 and click the appropriate tab or
select the setup item from the menu.
Unavailable items appear dimmed (you cannot enter values for them). For details on
each setup item, see the respective recorder manual.
The following examples of windows are those of VR200.

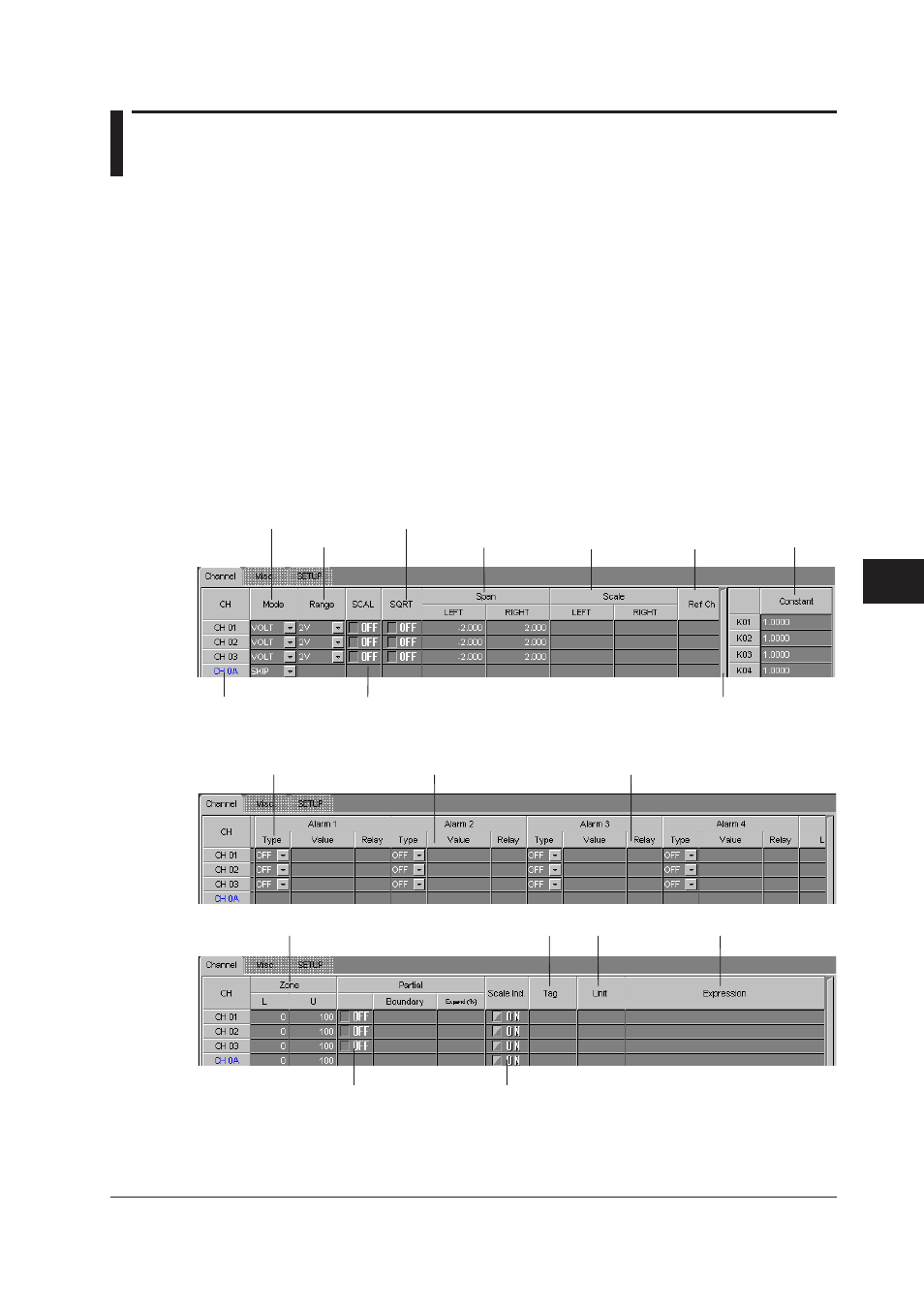

“Channel Setting” tab
Double-clicking the “CH” cell in this panel opens the “Channel Setting” dialog box (see
page 7-11) for inputting values. You can enter values in either the panel or the dialog
box.
Enter the constant
to be used in the
expression Enter the scale
Pressing this bar closes/opens
the “Constant” dialog box
Double clicking here
shows the “Channel
Setting” dialog box
Set the span
Turn ON/OFF the square
root computation
Turn ON/OFF the scaling
Select the range type
Select the input mode
Select the
reference for
the difference
computation
Enter the alarm value Select the alarm type Select the relay number
Enter the display zone
Turn ON/OFF the partial expanded display Turn ON/OFF displaying the scale
Enter the tag name Enter the unit Enter the expression
• Mode
Input type. Select “MATH” for a computation channel.
