2-34 IM WX101-01E
To manually assign the tags to groups or to change the assignment, perform the following
procedure.

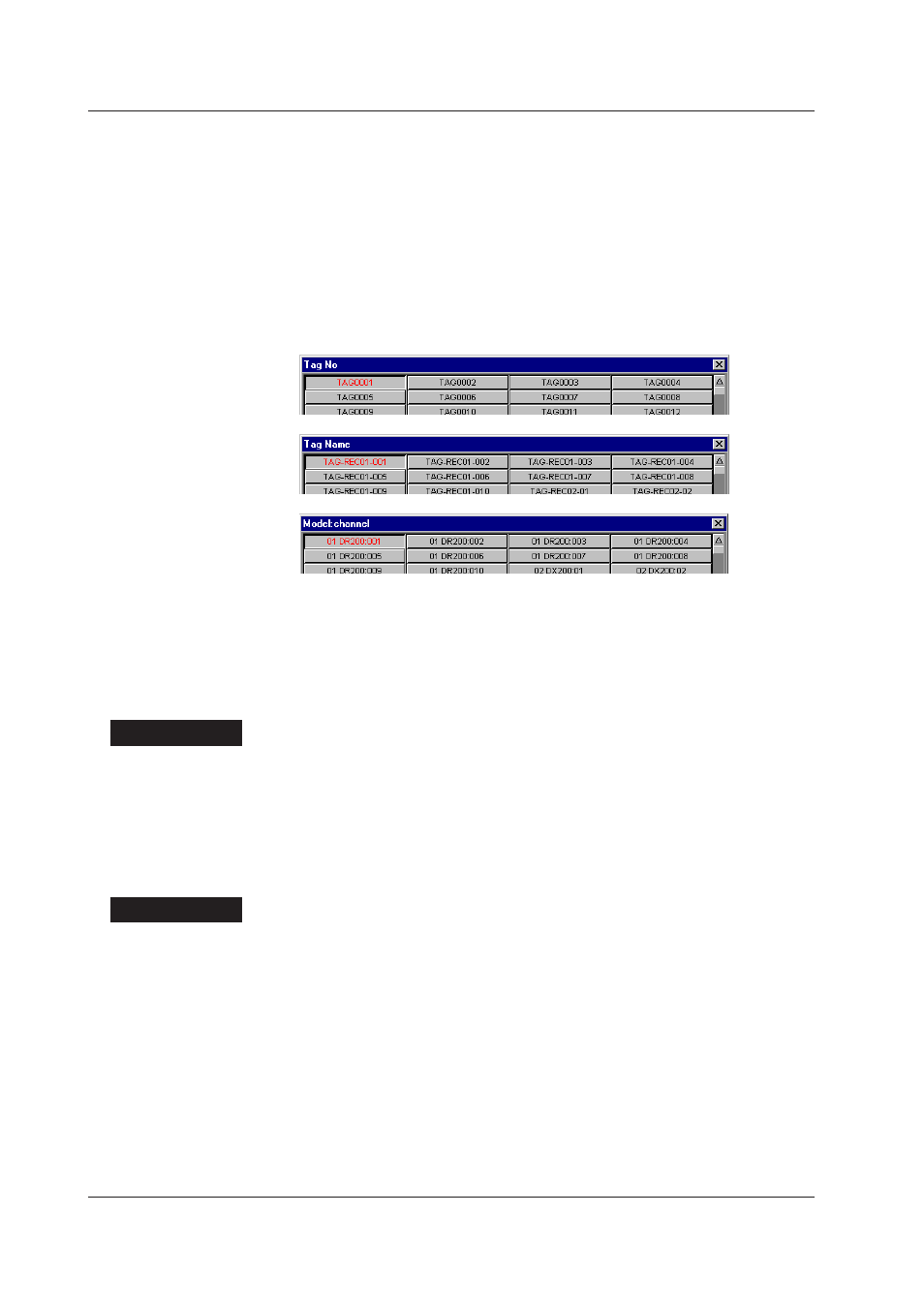

4. Click the tab to select the group to assign the tags.
5. Click the “Tag No.,” “Tag Name,” or “Model: Channel” cell of the waveform number
to assign the tag. A dialog box for selecting “Tag No.,” “Tag Name,” or “Model:
Channel” appears.
Select the “Tag No.,” “Tag Name,” or “Model: Channel” to be assigned. Select “None,”
if the tag is not to be assigned.
Changing any one of “Tag No.,” “Tag Name,” and “Model: Channel” automatically
changes the other two.
If the waveform number are selected in a series, click the tool cell in the bottom
to set tag names in order from the tag name of the first waveform number in the
selected range.
Showing/Hiding Tags
Procedure
1. Click the check box of the “No.” column cell to switch the show and hide condition of
the tag.
By clicking the tool cell at the bottom when consecutive cells selected, you can
switch between show and hide in the selected range at once.
Changing the Group Name
Procedure
1. Click the “Group Name” cell in the group list section or click the group name display
section in the tag assignment display section. Then, enter the group name using the
keyboard. Changing the name in one changes the other.
2.8 Setting Groups
