Setting the Recorder
PV Event-Relay output, Time Event-Relay output, and Program pattern end
signal
• Output
Turn OFF/ON the control relay output.
• Number
Select the number of the relay output terminal from the following.
DO001 to 006, DO101 to 106, DO201 to 206, RO001 to 012 (on models with the
expansion DIO terminal block)
• Action
Displays the relay output action (energized or de-energized) according to the [Control
Relay] settings under the [Setup] tab.

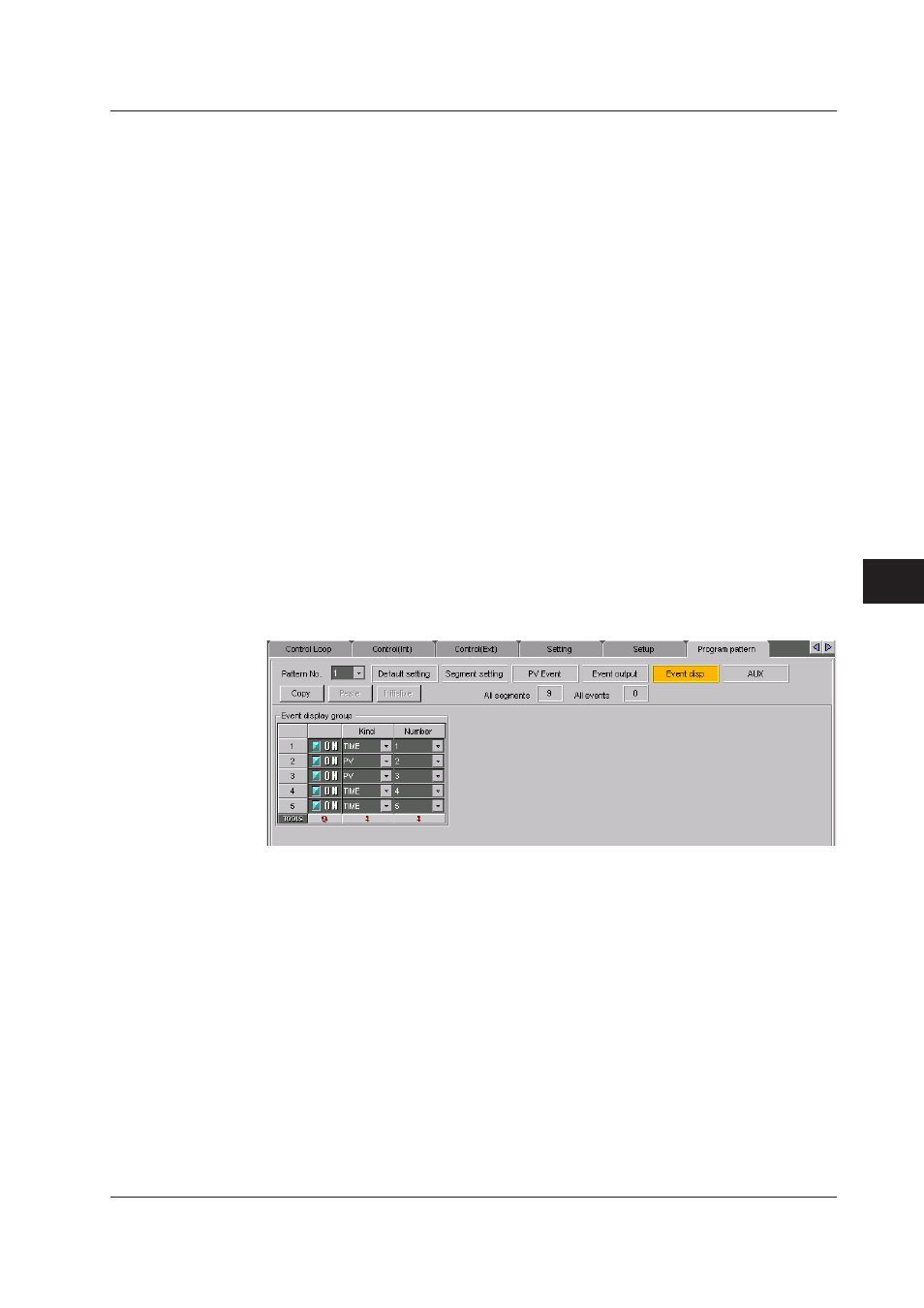

Event display group
Select the event for displaying groups on the CX Program Selection Display and Program
Control Display. Up to 5 events can be specified.
• ON/OFF
Turn ON/OFF the display.
• Kind
Select PV event or time event.
• Number
Set the event number.
7.10 Setting CX Series
