Setting the Recorder
F: Used to specify the flag on DC100 with the style number 7 or later, and DA100 and
DR with the style number 8 or later.
Restrictions in equations
• The specified computation equation for a computation channel No. can contain only
computation channel Nos. as variable which are equal to or smaller than setting
computation channel No.
(Example) A02=001+A01
In this example, any computation channel No. which is equal to or greater than A03
cannot be used.
• Either TLOG or CLOG can be used in an equation.
Note
• Each equation must consist of up to 40 characters.
• The total number of channels and constants to be used for each equation is 16 or smaller.
Span
Set the display/recording span in the –9999999~9999999 range. The number of digits to
the right the decimal is four digits or less.
Unit
Set the Unit you want to use for calculation using maximum 6 alphanumericals or the
symbols #, %, &, ( ), *, +, -, ., and /.
Setting Retransmission Output (only DA/DC)
Assign channels to the retransmission outputs when the retransmission module is used.
For the setting of the output filter, see “Setting Filter of Retransmission Output.”

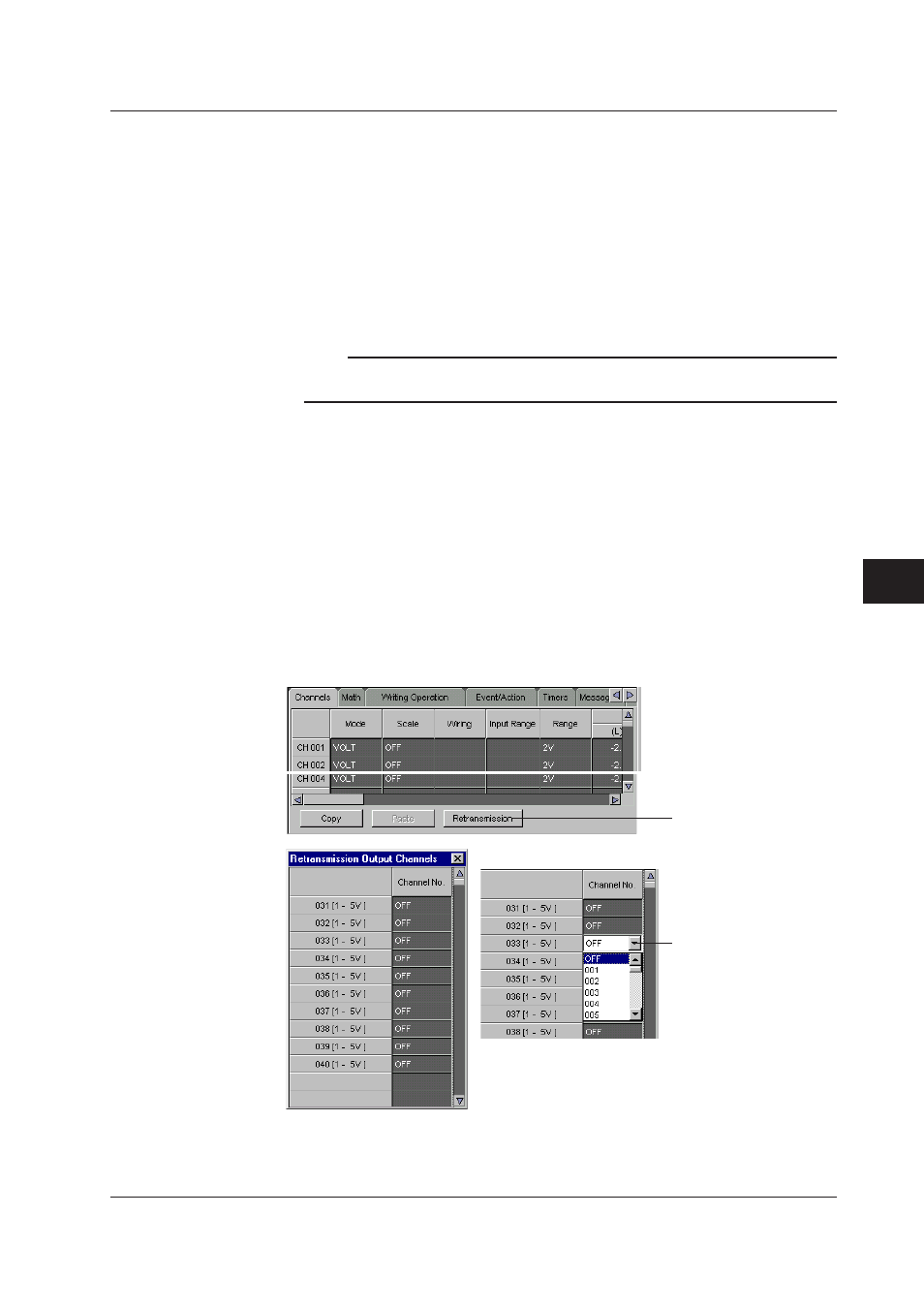

To open the Retransmission Output Channels setting screen, click the “Retransmission”
button on the Channels tab screen or Math tab screen.
Click to open
“Retransmission
Output Channels”
dialog box
Click to open a list
box for selecting
the channel
