Using Data Monitor
3.2 Setting the Display Conditions
In this section, set the display conditions common to all types of monitors, such as scale,
zone, and waveform color. Also set the meter type for the meter monitor.
Note
In the following descriptions, “Tag Name” will be used to identify tags. If you wish to display
and use “Tag Number” instead, click the tag number display button in the tool bar.
Basic Operation
To select waveform number(s)
• Click the waveform number (“No.” cell).
• To select waveform numbers in a series, click the first cell, then, pressing the SHIFT
key, click the last cell.
To switch the Use/Not Use of the settings
• Click the check box to switch the Use (blue)/Not Use.
• If waveform numbers are selected in a series, click the tool cell in the bottom to switch
the settings in the selected area at the same time.
To copy the display conditions
This operation is to copy the display conditions of a selected waveform number to
another waveform number.
1. In the “Display Settings” dialog box (see next page), click the “Copy Setting...”
button.

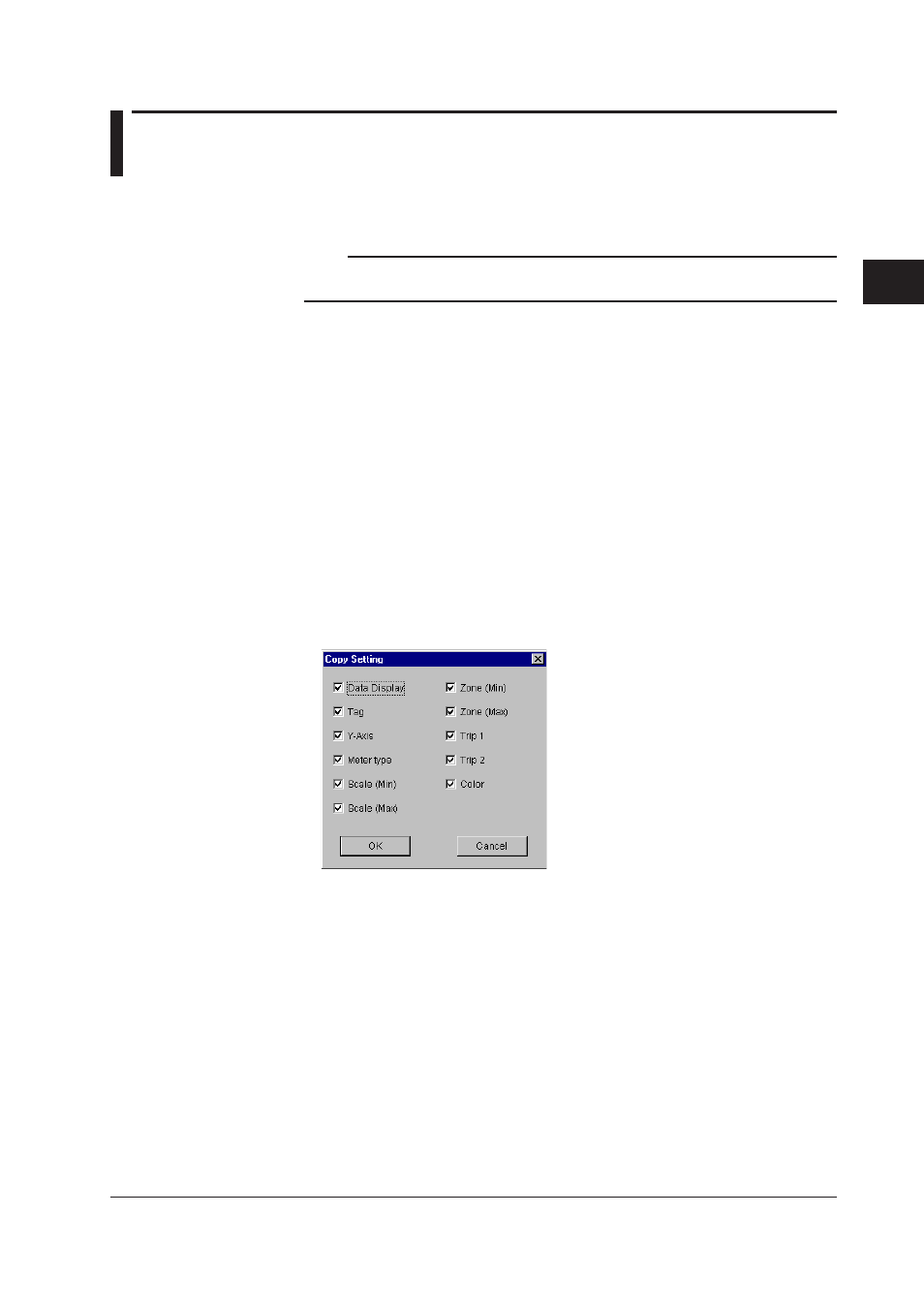

The “Copy Setting” dialog box opens.
2. Check the items you wish to copy and click “OK.”
3. Click the “No.” cell of the copy source.
4. Click the “Copy” button.
5. Select the “No.” cell(s) of the copy destination.
To select consecutive numbers, click the first cell then, pressing the SHIFT key, click
the last cell.
When you have finished selecting numbers, click the “Paste” button.
