Configuring the DAQLOGGER
Click “OK” to activate the new settings and close the subunit selection dialog box.
Click “Revert” to set the settings back to the settings that existed when the subunit
selection dialog box was opened.
Click “Cancel” to discard the settings and close the subunit selection dialog box.
The method to set the modules for the subunit is the same as the method described in
the aforementioned section, “Setting the modules.”
By clicking the tool cell at the bottom of the “Recorder Setting” tab, you can copy
the module configuration of the first subunit in the selected range to all the DA100,
DR200, DC100 expandable models in the selected range.
Setting the Environment When Communicating with a PC with Software
Applications Installed
Before you start this setting operation, obtain information about the target PC: the IP
address, the port number of the monitor server, etc.

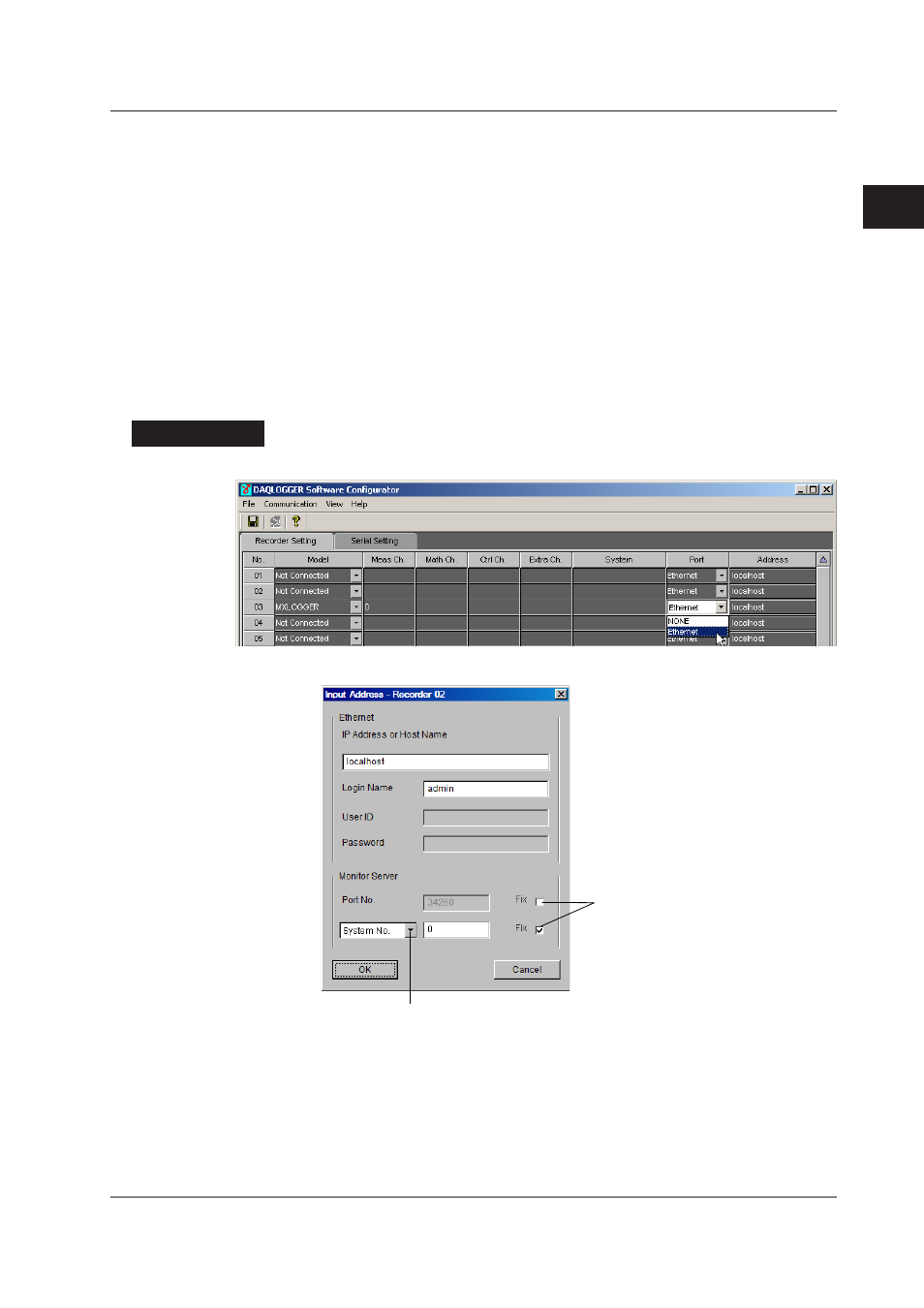

Procedure
1. To set the communication port, click the cell in the “Port” column and select “Ethernet.”
2. Click the “Address” cell and set the IP address or host name of the target PC.
Select these check boxes when
multiple monitor servers are
running on the connected PC and
the port number or system number
is to be specified.
If you are specifying the system number (specified in the text
box to the right) and acquiring data, select “System No.”
(If you are connecting to Gate, you can acquire data from all
systems by selecting “All System No.”
IP address or host name
Enter the IP address or host name of the target PC (up to 255 alphanumeric characters).
2.6 Setting Communications and the Connected Recorder
