Using Data Monitor
Specifying the waveform line width
Procedure
1. In the menu bar, click “View” then select “Thin Line,” “Medium Line,” or “Thick Line.”
Adjusting the brightness
The brightness of the grid and background can be adjusted.
Procedure
1. Drag the corresponding brightness control slider located on the right of the zone bar
display area to change the brightness.
Moving the trip points
The trip points can be moved when the monitor is paused.
Turning ON/OFF the trip point display is only possible from the “Display Settings” dialog
box.
Procedure
1. Click the “Pause” button or in the menu bar, select “Monitor” then “Pause.”
The monitor stops updating the display.
2. Drag the trip point to the desired position.

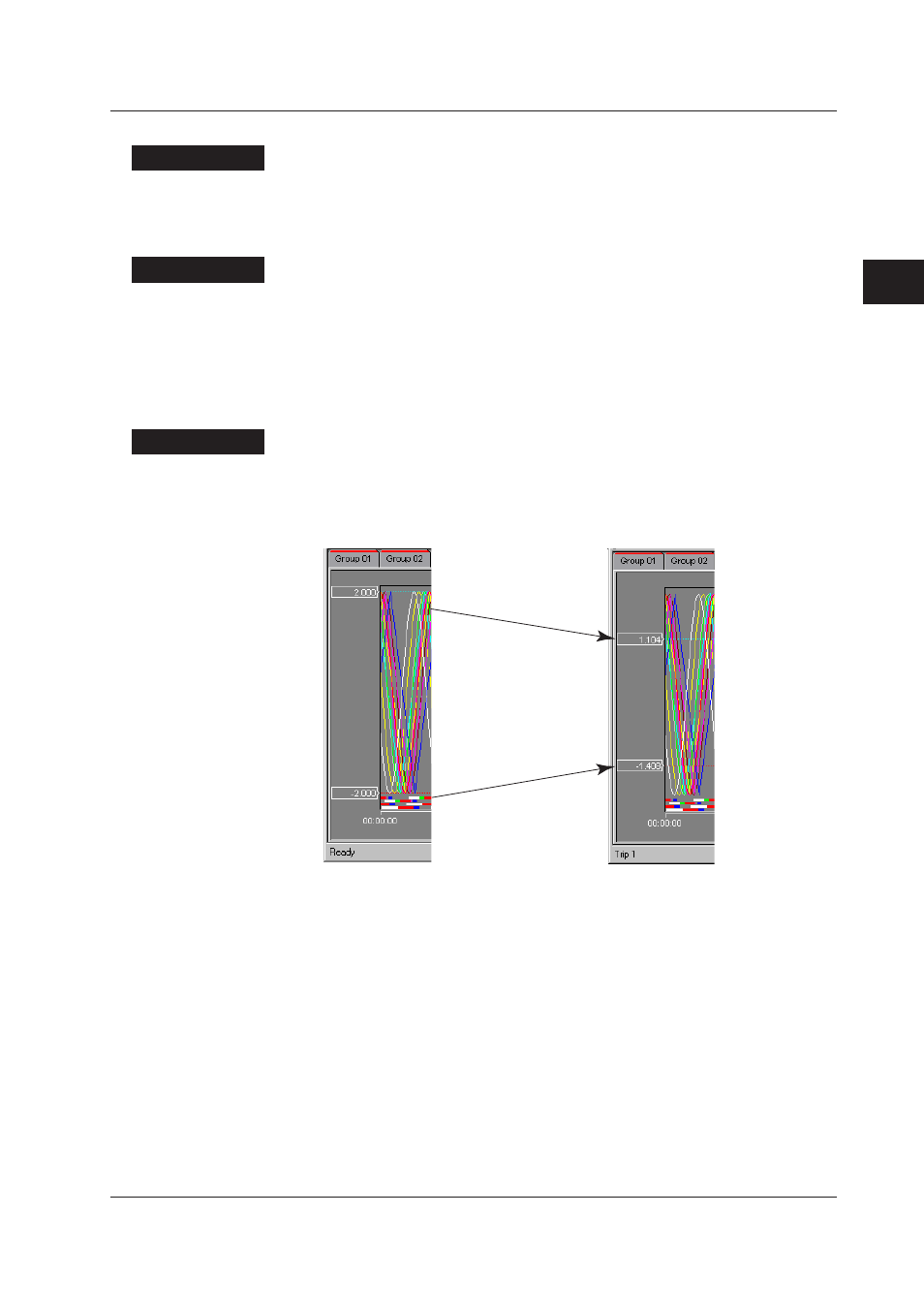

Before dragging
After dragging
3.3 Changing the Display Settings of Monitor Windows
