Setting the Recorder

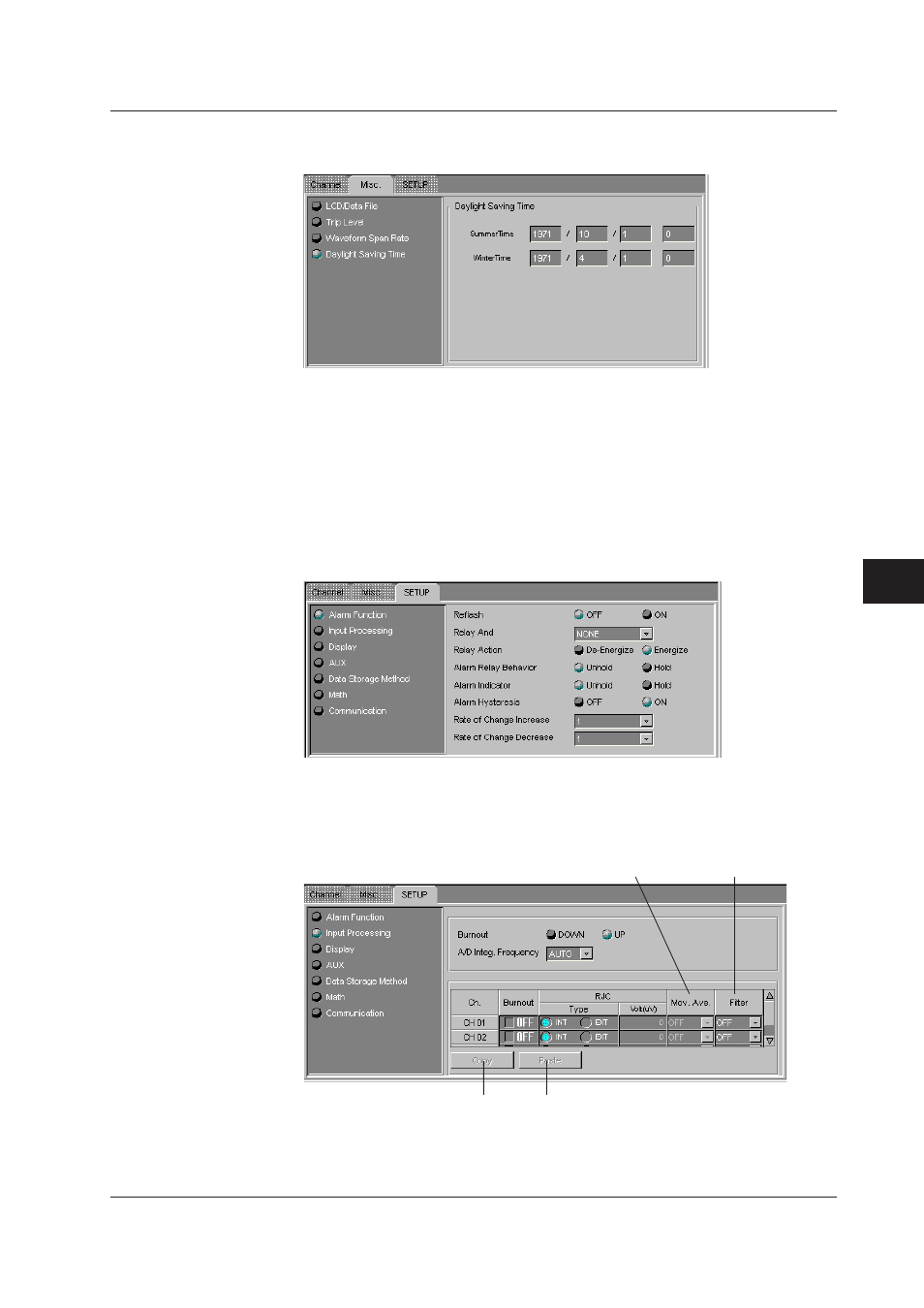

• Daylight Saving Time
Set the “Summer Time” and “Winter Time.”
“SETUP” tab panel
From this panel, set items regarding alarm function, input processing, display, data
storage method, remote control, TLOG computation, communication, selection of channel
or tag display, message display language, memory end time, password, and temperature
unit.
The display contents are switched by selecting an item listed in the left part of this panel.
• Alarm Function
“Relay AND”: Select the relays that are to use the AND logic.
• Input Processing
Set the burnout action, the integral time of A/D converter, the reference junction
compensation function, the moving average, and the filter.
For VR106, VR206,
and VR206 S2
For VR104, VR204,
VR202 S2, and VR204 S2
Copy and paste the channel settings
7.4 Setting VR Series
