Configuring the DAQLOGGER
Saving the Group Settings
Group settings cannot be saved while scanning or recording is in progress.
Procedure
1. In the “DAQLOGGER Group Editor” window, select “Save” from the “File” menu.
The settings are saved.
Note
The group setting items are items that can also be set or changed in the display settings of
Data Monitor. If you change the tag assignments, show/hide condition of tags, or group names
and save the information, the information is also reflected in Data Monitor. However, other
items set in the display settings of Data Monitor (“Scale” and “Meter Type,” for example) are left
unchanged (Even if you change the tag assignments, other tag settings do not change).

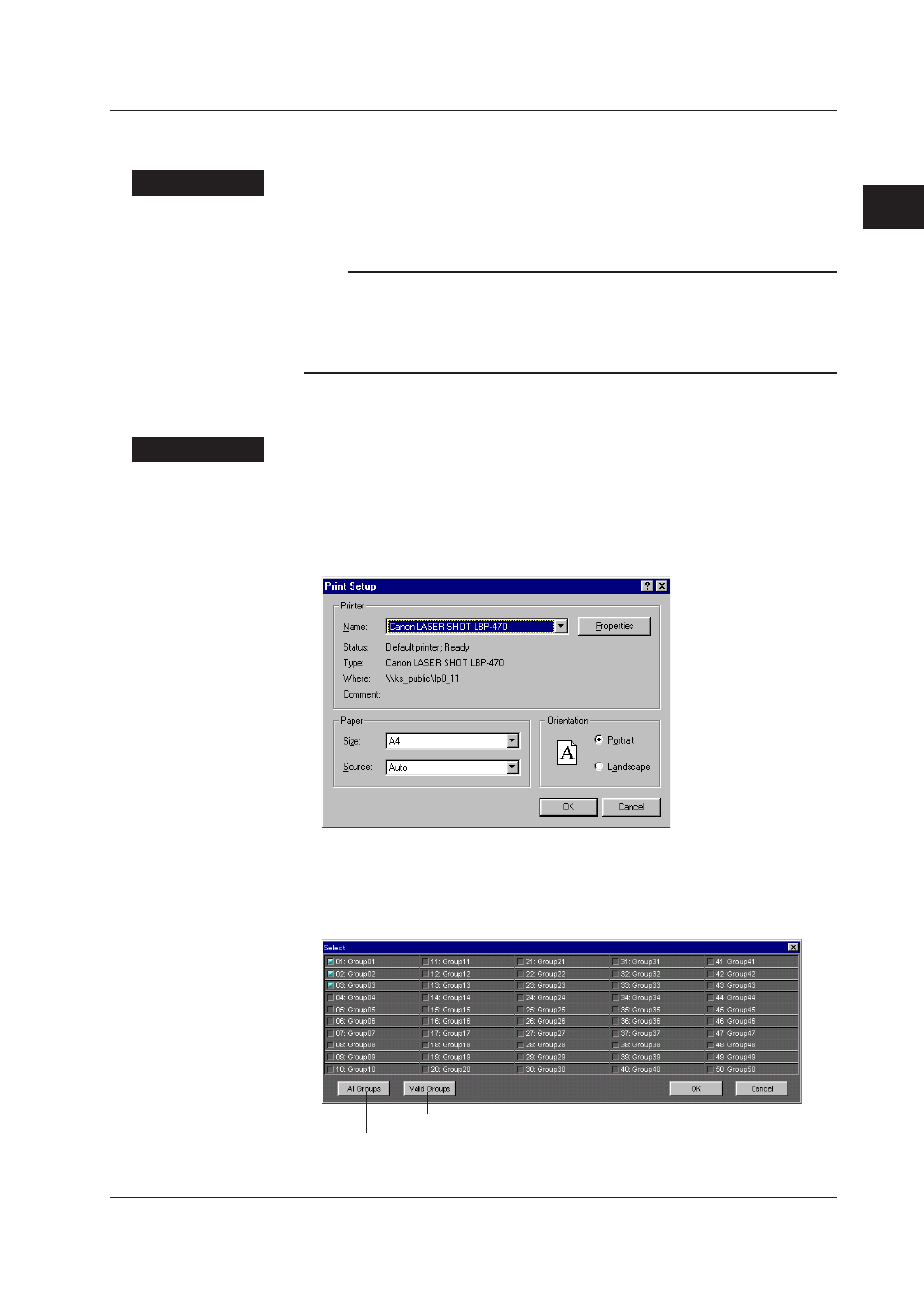

Printing the Group Setting Information
Procedure
Setting the printer
1. In the “DAQLOGGER Group Editor” dialog box, choose “Print Setup” from the “File”
menu.
2. The “Print Setup” dialog box appears. Set “Printer,” “Paper,” and “Orientation”
according to the printer that you are using.
Displaying the print preview of the group setting information
3. In the “DAQLOGGER Group Editor” dialog box, choose “Print Preview” from the “File”
menu or click the “Print Preview” icon on the tool bar.
4. A dialog box for selecting the group to be printed appears. Select the group.
Selects only valid groups (group in which at least one tag is assigned).
Selects all groups.
