Setting the Recorder
Tag
Specify a tag using a maximum of 8 characters.
Tag Comment
Specify a tag comment using a maximum of 8 alphanumeric characters.
PV/SP/OUT
Set the decimal place and units of PV, SP, and OUT.
Control Span
Set the control span between the upper and lower limits.
Control Mode
Select the control mode from the following (The available control modes differ
depending on the connected instrument.):
[SingleLoopControl], [CascadePrimaryLoop], [CascadeSecondaryLoop],
[CascadeControl], [ControlBackUp], PVSwitching], [PVAutoSelector], or
[PVHoldFunction].
Control Output
Select the type of control output from the following:
[Relay], [Voltage-pulse], [Current-output], and [On/Off-control]
Alarm
Select the type of alarm from the following:
[OFF], [PV-High(Energ)], [PV-Low(Energ)], [Deviation-High(Energ)], [Deviation-
Low(Energ)], [Deviation-High(Deenerg)], [Deviation-Low(Deenerg)], [Deviation-
H&L(Energ)], [Dev-within-H&L(Energ)], [PV-High(Deenerg)], [PV-Low(Deenerg)], [PV-
High(Energ/Standby)], [PV-Low(Energ/Standby)], [Dev-High(Energ/Standby)], [Dev-
Low(Energ/Standby)], [Dev-High(Deenerg/Standby)], [Dev-Low(Deenerg/Standby)],
[Dev-H&L(Energ/Standby)], [Dev-w-H&L(Energ/Standby)], [PV-High(Deenerg/
Standby)], [PV-Low(Deenerg/Standby)], [Timer-upward(h:m)], [Timer-downward(h:
m)], [Timer-upward(m:s)], [Timer-downward(m:s)], [Sensor-grounding], [Problem-
diagnostic], [FAIL-output], [SP-High], [SP-Low], [Output-High], [Output-Low], [Header-
burnout1], and [Header-burnout2].

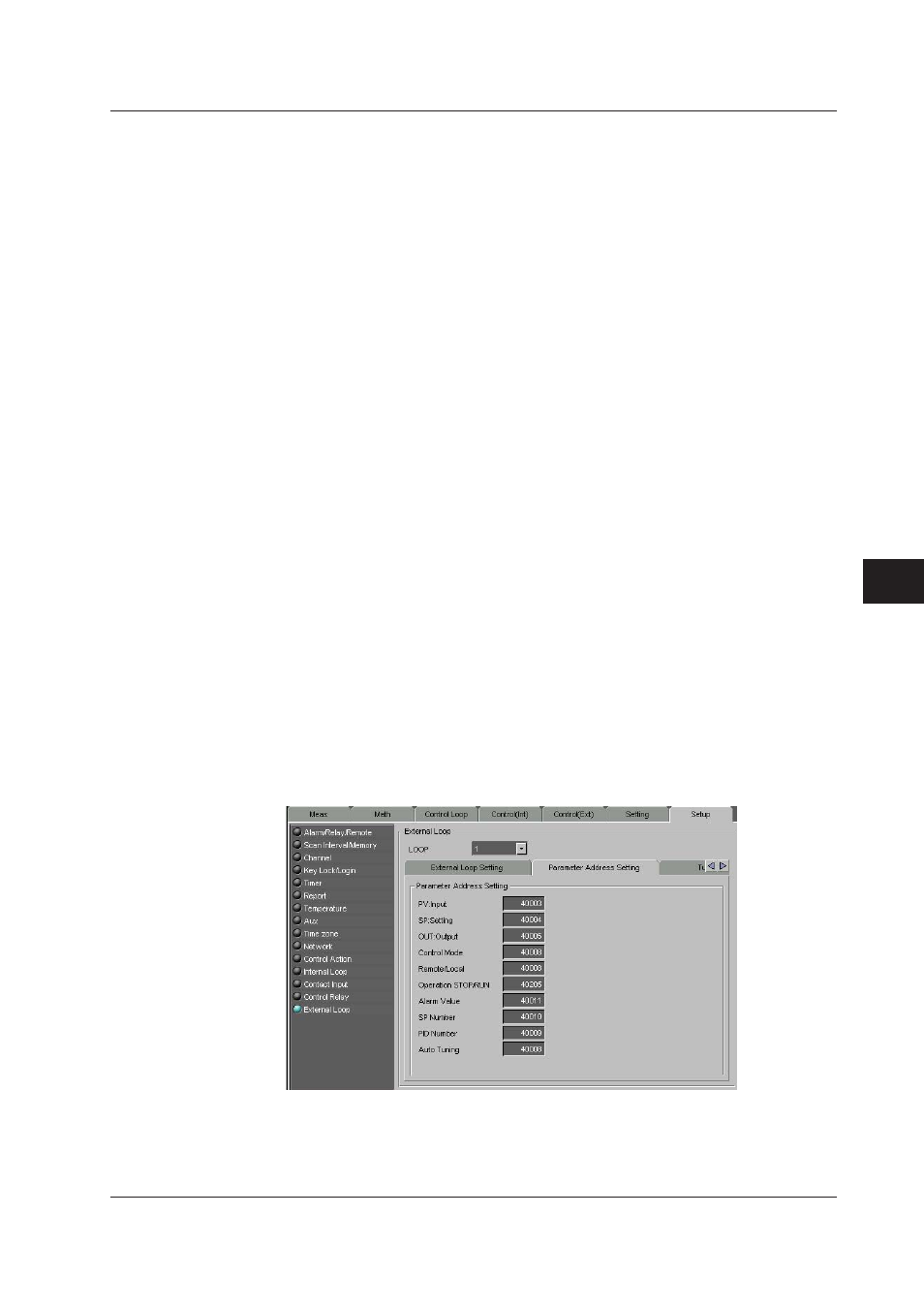

[Parameter Address Setting] Tab
Select the parameter address settings from the following ranges.
30001 to 39999, 300001 to 365535, 40001 to 49999, 400001 to 465535.
