Setting the Recorder

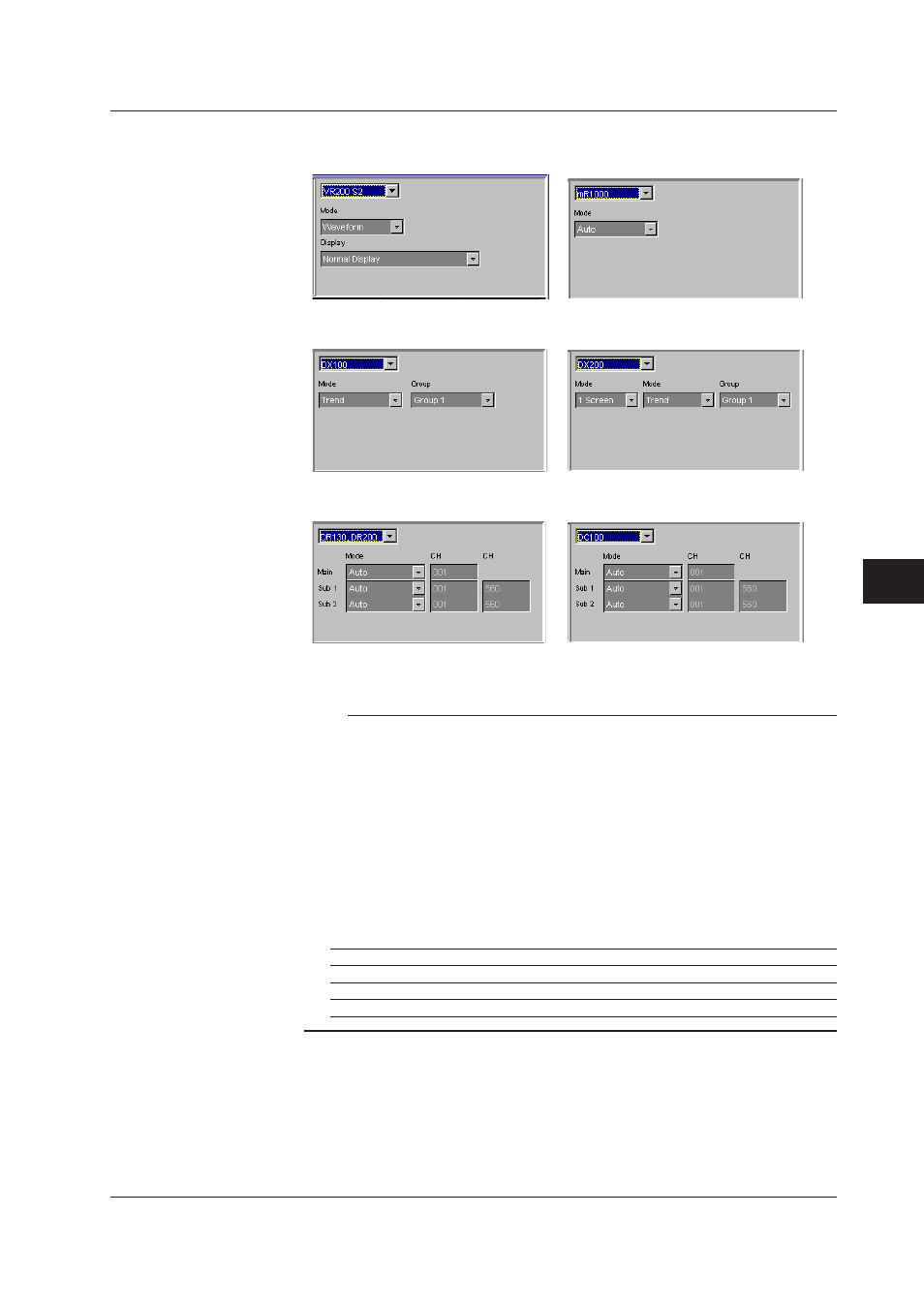

“Display” command differs from recorder models as follows.
VR200 S2 µR1000/µR1800
DX100/MV100/CX1000 DX200/DX200C/MV200/CX2000
DR130/DR200 DC100
With “Display” command, note the following.
Note
• With models other than VR206 and VR106, sending any non-standard display will cause an
error.
• When manual display is selected with the µR series, you can select channels which do
not exist in the connected recorder. However, selecting nonexisting channels and sending
commands will cause a communication error.
• As for DR and DC, no communication error results, even if the display command that is not
applicable to the connected recorder is sent.
• With CX series instruments, if you enter settings related to program operation in “Mode” on
models with the /PG1 or /PG2 option prior to transmission, an error will occur.
• Batch recording can only be started if the Batch function is included on the instrument to
which the command is sent, and the Batch function is enabled.
Commands are sent as follows according to the batch setting.
Batch Setting Sent Commands
Multibatch All batch recording commands can be sent
Batch ON ALL, and batch group 1 batch recording commands can be sent
Batch OFF Batch recording commands cannot be sent (error)
7.16 Transmitting Control Commands to the Recorder
