Setting the Recorder
Scale check mark printing (SCALE TIC PR)
For dot recording, a tic mark indicating the scale mark positions can be printed.
• OFF: no mark printing.
• ON: printing the tic mark.
Horizontal or vertical printing (LOG FORMAT)
In logging mode, select either horizontal or vertical printing of the channel number/Tag.
• Horizontal: horizontal printout
• Vertical: vertical printout
Recording Interval in Digital Printing/ Logging Mode (LOG INTERVAL)
Select to record channel numbers/Tags and measured values at one interval or at a
selected interval for each channel using the 6 timers.
SINGLE:
• Digital print: The interval is determined by the chart speed and the number of columns
to be printed.
• Logging mode: interval for timer No. 1.
MULTIPLE: intervals selected for each channel from 6 kinds of timers for either Digital
printing or the Logging mode.

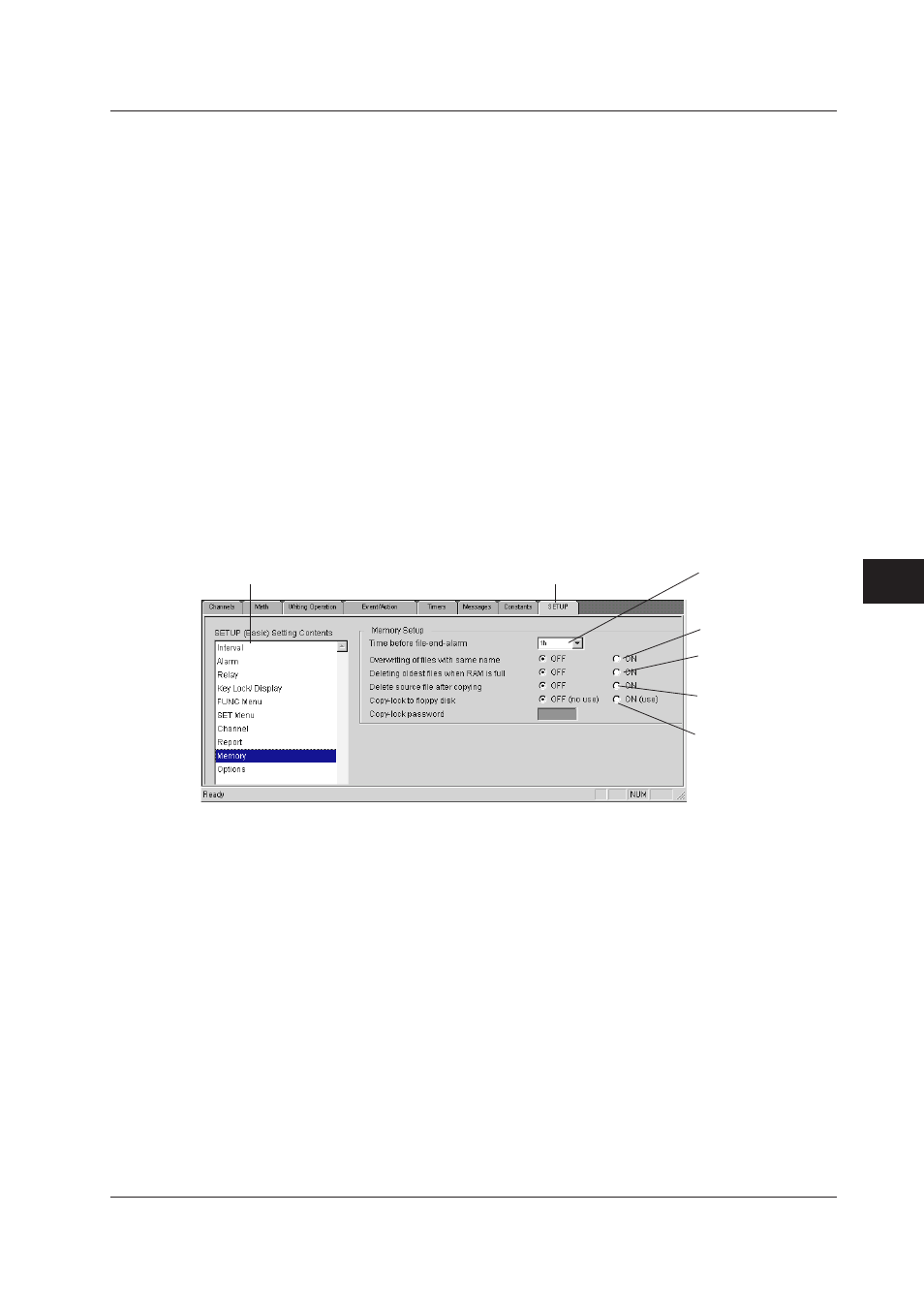

Memory-related Settings (DC100 only)
Select the SETUP topic Setup tab
Alarm when the
remaining file capacity
to write to RAM becomes
below specified time.
Copy lock settings
Set to overwrite files
with same name
Deleting oldest files
when RAM is full
File deletion when
copying a file
Time before file-end-alarm (FILE ALARM)
• This outputs a file alarm from a relay when the remaining file capacity becomes below
the one corresponding to the specified time while the measured/computed data are
being written in the built-in RAM disk. Select the remaining time from the following:
0h : Outputs an alarm when file has been created (file is closed).
1h, 2h, 3h, 4h, or 5h: Outputs an alarm when the remaining time reaches the specified
time.
Overwriting of files with the same name (FILE OVERWRITE)
• When measured/computed data are written, if there is a file with the same name in the
built-in RAM disk, set whether to overwrite the file or not.
ON : Overwrites the file.
OFF : Stops writing.
7.9 Setting DARWIN
