3-12 IM WX101-01E
• User Zone
Waveforms are displayed in the zones set in the “Display Settings” dialog box.
Zones settings cannot be changed in the trend monitor window, but can be
changed in the “Display Settings” dialog box.
For details about settings in the “Display Settings” dialog box, see section 3.2
“Setting the Display Conditions” (P.3-5).
• Edit Zone
Waveforms are displayed in the zones set in the “Display Settings” dialog box.
Zones can be changed in the zone bar display area of the trend monitor window.
In the zone bar display area, change the zone by dragging the control tips in both
ends of the individual zone bars. The zones changed in the zone bar display area
will be reflected in the “Display Settings” dialog box. Accordingly, if you switch
to the “User Zone” after changing the zones in the zone bar display area, the
waveforms are displayed using the new zones.

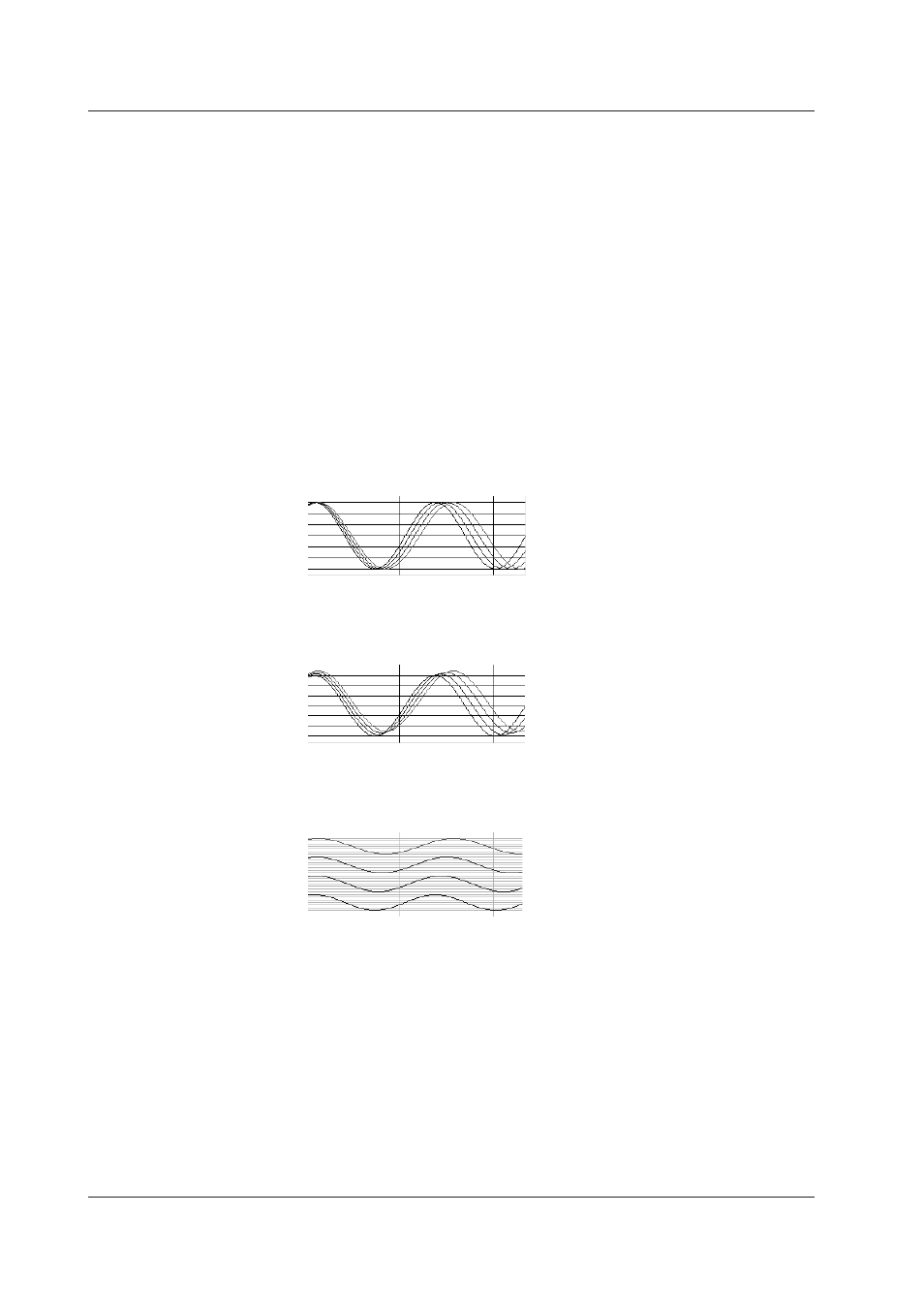

• Full Zone
All waveforms are displayed in full zones.
• Slide Zone
Waveforms are displayed by vertically offsetting the position of each waveform.
Each waveform is displayed with the same zone width.
• Auto Zone
The waveform display area is equally divided according to the number of displayed
waveforms. The waveform is displayed in each divided zone.
3.3 Changing the Display Settings of Monitor Windows
