Setting the Recorder

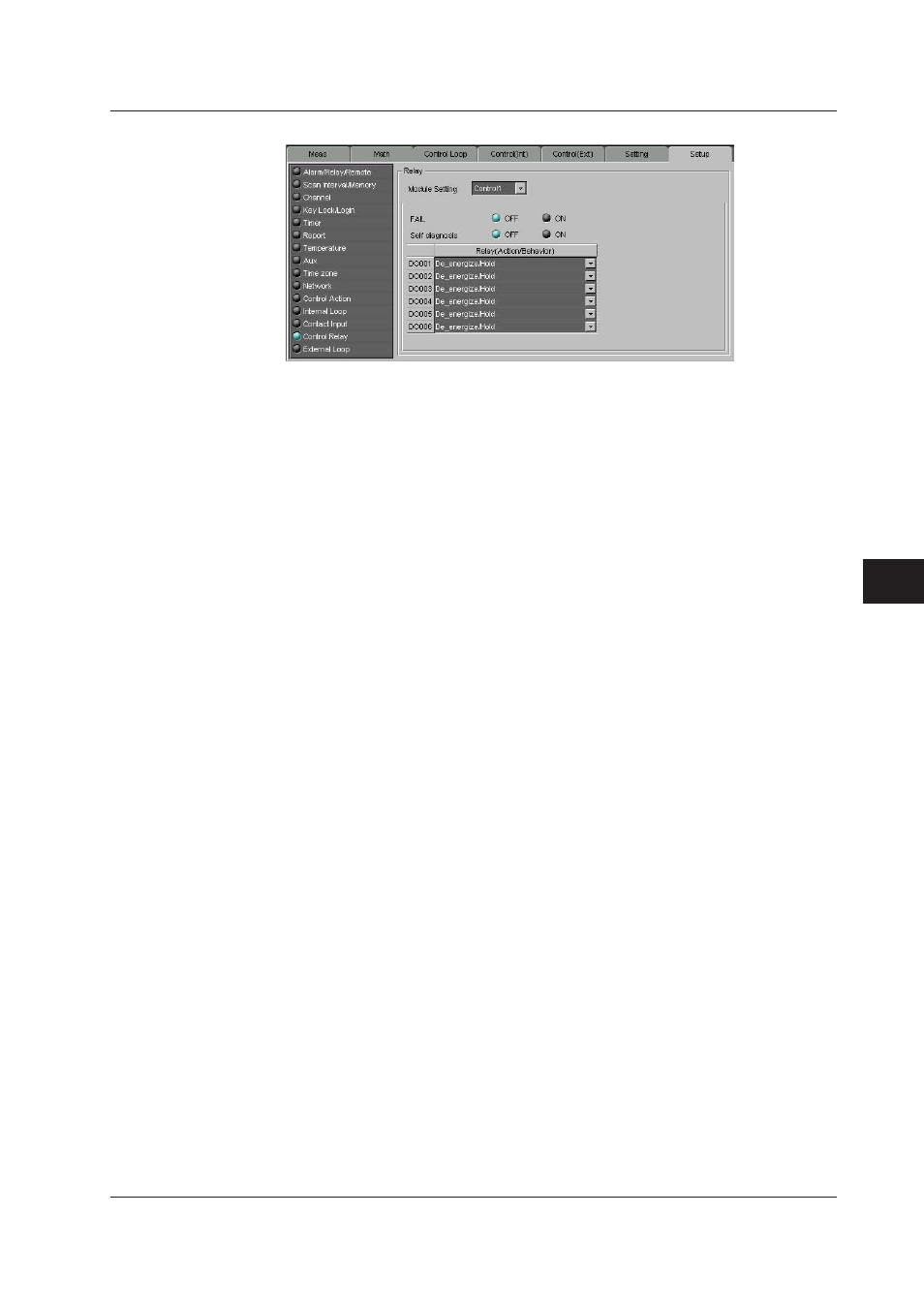

Control Relay
Module Setting
Select the terminal blocks where you want to register contact inputs from [CTRL1-2],
[CTRL3-4], [CTRL5-6], or [EXTDIO]. [CTRL3-4], [CTRL5-6], and [EXTDIO] are available
only for the CX2000.
FAIL
Activates the output of a relay contact signal (FAIL signal) if a fault occurs in the CX
CPU. When it is [ON] (default: [OFF]), contact output number [DO001] of control output
terminal block 1 is automatically assigned to [De_energize/Nonhold].
Self Diagnosis
Activates the output of a relay contact signal in the event of input burnout, an A/D
converter fault, or reference contact compensation failure. When it is [ON] (default:
[OFF]), contact output number [DO002] of control output terminal block 1 is automatically
assigned to [De_energize/Nonhold].
Relay (Action/Behavior)
Set the contact output relay operating mode to [De_energize/Hold], [De_energize/
Nonhold], [Energize/Hold], or [Energize/Nonhold].
7.10 Setting CX Series
