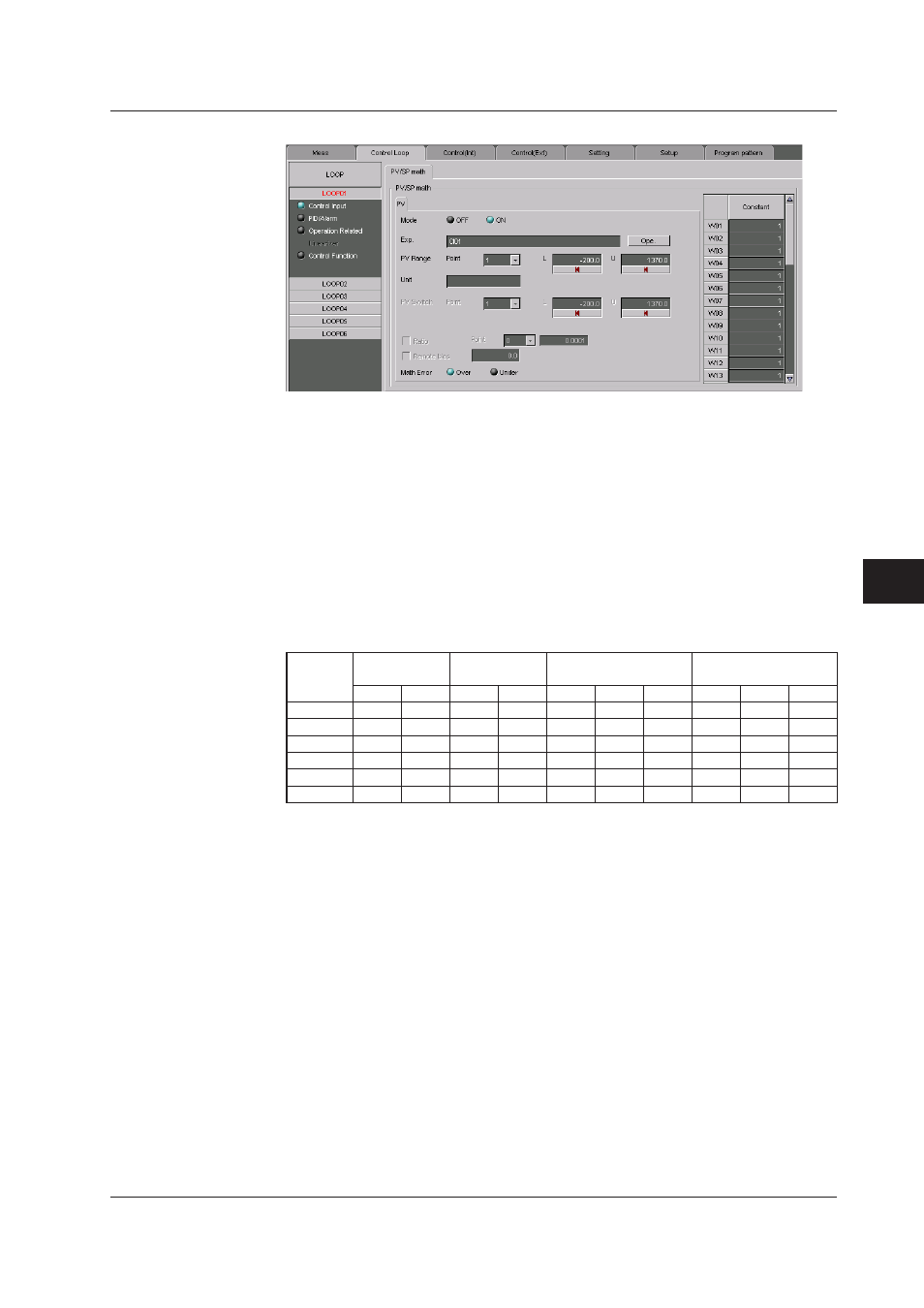

Setting the Recorder
When the PV/SP Math Function Is ON
Enter PV or SP settings.
If the control mode is set to Retransmission, a menu for entering retransmission settings
appears. See the next page.
PV/SP Math Function
Select the item you wish to set, PV, PV1, PV2, or SP. If the control mode is set to Basic
or Cascade, set PV. If the mode is set to PVswitch, set PV1 and PV2. You can select
SP when [Internal loop] > [Remote setting] under the [Setup] tab is ON.
Mode
Select ON or OFF.
ON: Enables the expression.
OFF: The control input channel below is assigned to the expression.
Control
mode Basic Cascade PVswitch
(4 loops)
PVswitch
(6 loops)
PV SP PV(1) SP PV1 PV2 SP PV1 PV2 SP
Loop 1 CI01 CI02 CI01 CI02 CI01 CI02 CI03 CI01 CI02 CI01
Loop 2 CI04 CI05 CI04 — CI04 CI05 CI01 CI04 CI05 CI01
Loop 3 CI06 CI07 CI06 CI07 CI06 CI07 CI08 CI06 CI07 CI01
Loop 4 CI09 CI10 CI09 — CI09 CI10 CI01 CI09 CI10 CI01
Loop 5 CI03 CI01 — — — — — — — —
Loop 6 CI08 CI01 — — — — — — — —
Exp.
Enter the PV/SP expression. You cannot enter the expression if Mode is OFF.
PV Range (PV or PV1)
Set the maximum value, minimum value, decimal point position (0 to 4), and unit (up to 6
alphanumeric characters).
Set the maximum and minimum values between –30000 and 30000. The maximum
value must be greater than the minimum value and the difference between the two must
be less than or equal to 30000.
You can set PV1 even when the mode is OFF.
