Circular Save Interval
Select the size of a record data file. The recorded data is divided by the file size
specified here. The available settings vary in the range of [10min] to [31day] depending
on the [Time Per revolution] setting.
Circular Offset Time
The time at the reference position on the circle can be offset in unit of an hour up to 23
hours. The available settings vary depending on the [Time Per revolution] setting.
Display Update 2nd Interval
Enabled when [Trend Rate Switching] is turned [ON] under [Environment] - [Detail
Setting] in the [Basic Setting] tab. Select a rate from the list.
The selectable 2nd intervals are the same as those for Trend interval.
Direction
Set the display direction of the trends to [Horizontal], [Vertical], [Wide], or [Split].
Trend Clear
Settings
Description
ON
Clears the displayed waveform when the memory sampling is started.
OFF
Does not clear the waveform when the memory sampling is started.
This is fixed at [ON] if you are using the multi batch function (/BT2 option; release
number 3 or later). You can set the multi batch function by setting [Batch operation qty]
under [Environment] - [Detail Setting] in the [Basic setting] tab.
Message direction
Set the display direction of messages to [Horizontal] or [Vertical]. When the trend is set
to Vertical, the message direction is fixed to [Horizontal].
Scale Digit
Select the [Normal] or [Fine].

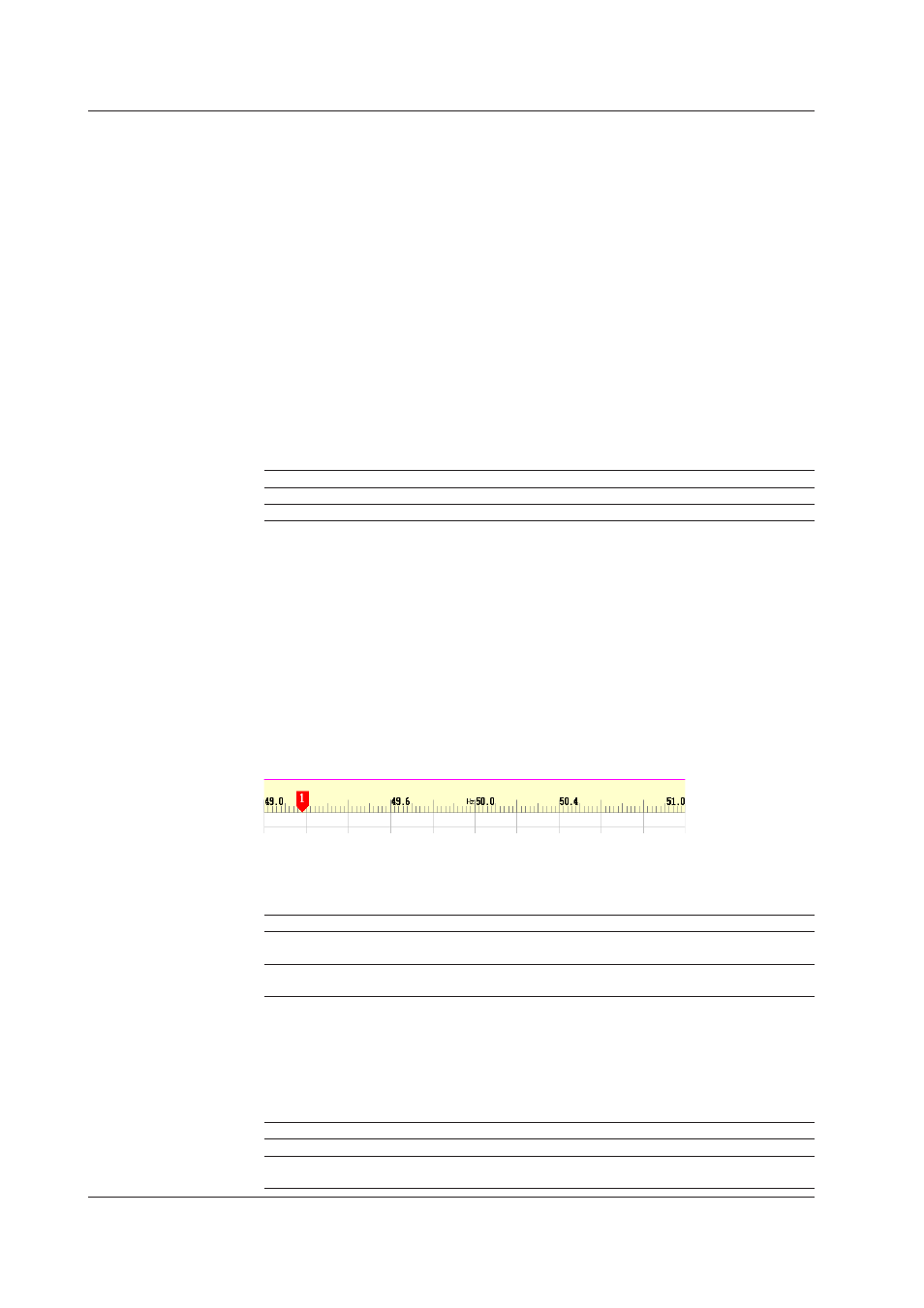

Fine If the scale value is two-digit display, it can be changed to three digits. For
example, if the scale range is “49.0 to 51.0,” the scale values are displayed using 3
digits as shown below.
Value Indicator
The current value is displayed as a mark or a bar graph.
Full Circle Action
Settings
Description
Allclear
Clears the entire waveform when one revolution of waveform is recorded and
continues the recording of the next revolution.
Divclear
Clears one division of the old waveform when the remaining amount of
waveform to be recorded falls to one division and continues the recording.
Trend Line
Set the line width of the trend in dots (1 to 3).
Grid
Select the number of grids to be displayed in the waveform display area of the trend
display.
Settings
Description
4 to 12
Displays a grid that divides the display width into 4 to 12 sections.
Auto
Displays the same number of grids as the number of scale divisions of the
first assigned channel of the group.
