Section 13A
Connecting 8520 Digital Drive Systems
13A-13

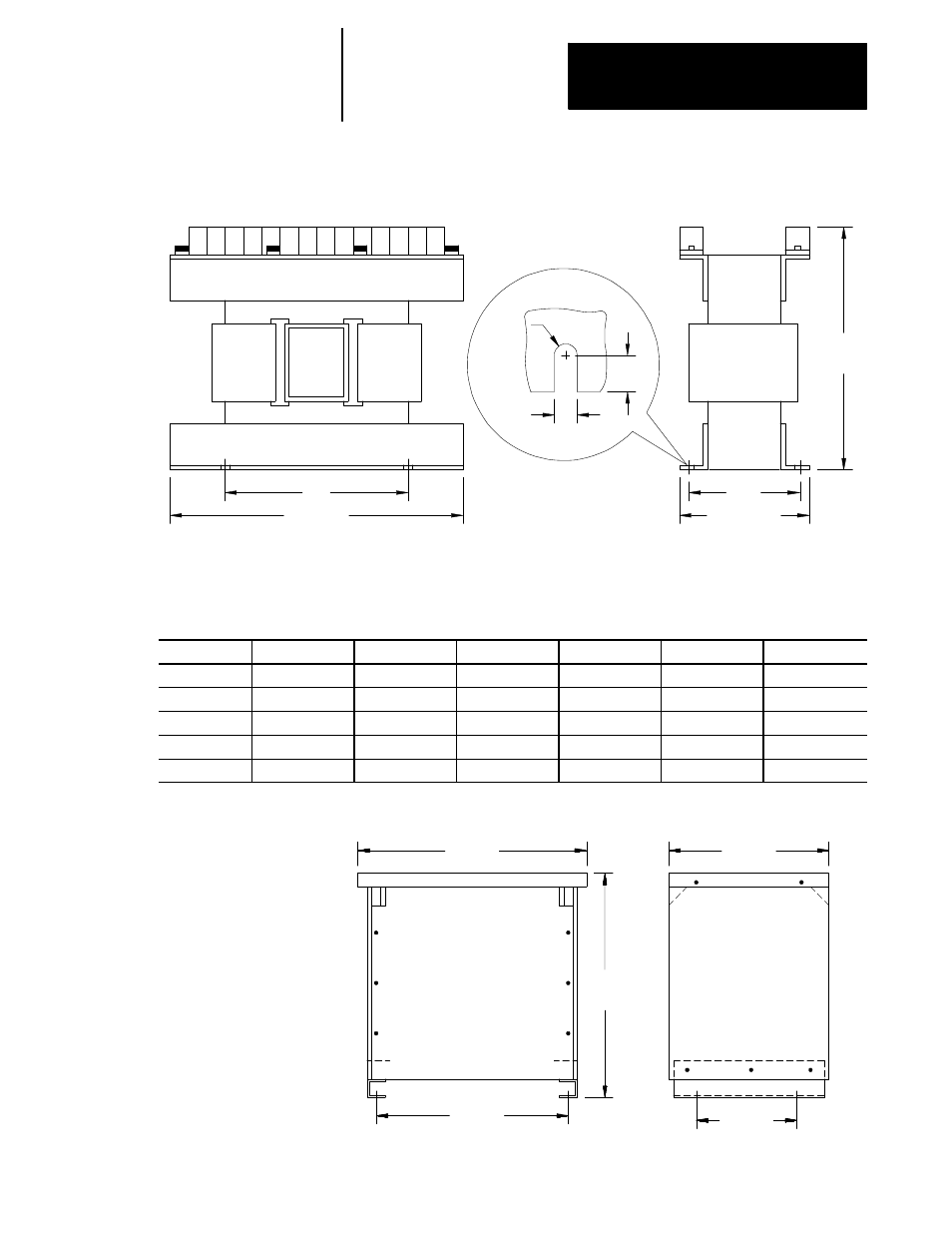

Figure 13A.8
Allen-Bradley 1389 Transformer Dimensions
Slot
0.22R
13.5
(0.53)
11.2 ref.
(0.44)
D
C max. A max.
E
B
max.
11195-I
mm
(in)
Table 13A.B
Allen-Bradley 1389 Transformer Dimensions mm (in.)
1389- A B C D E Weight
T015DA 228 mm (9 in) 254 mm (10 in) 330 mm (13 in) 127 mm (5 in) 79 mm (3.10 in) 12.7 kg (28 lbs)
T035DA 279 mm (11 in) 279 mm (11 in) 356 mm (14 in) 152 mm (6 in) 114 mm (4.5 in) 27.2 kg (60 lbs)
T050DA 279 mm (11 in) 279 mm (11 in) 356 mm (14 in) 152 mm (6 in) 133 mm (5.25 in) 34.0 kg (75 lbs)
T100DA 305 mm (12 in) 317 mm (12.5 in) 406 mm (16 in) 203 mm (8 in) 149 mm (5.85 in) 50.8 kg (112 lbs)
T125DA 305 mm (12 in) 317 mm (12.5 in) 406 mm (16 in) 203 mm (8 in) 143 mm (5.63 in) 59.5 kg (131 lbs)
Figure 13A.9
Allen-Bradley 1389 Transformer Dimensions
419.1
(16.50)
431.8
(17.00)
469.9
(18.50)
355.6
(14.00)
340.8
(12.00)
Side Front
11196-I
