System module, Cnc wiring board – Rockwell Automation 8520 9/Series CNC Integration Maintenance Manual Documentation Set User Manual
Page 617
Section 11A
Connecting 1394 Digital Drive Systems
11A-12

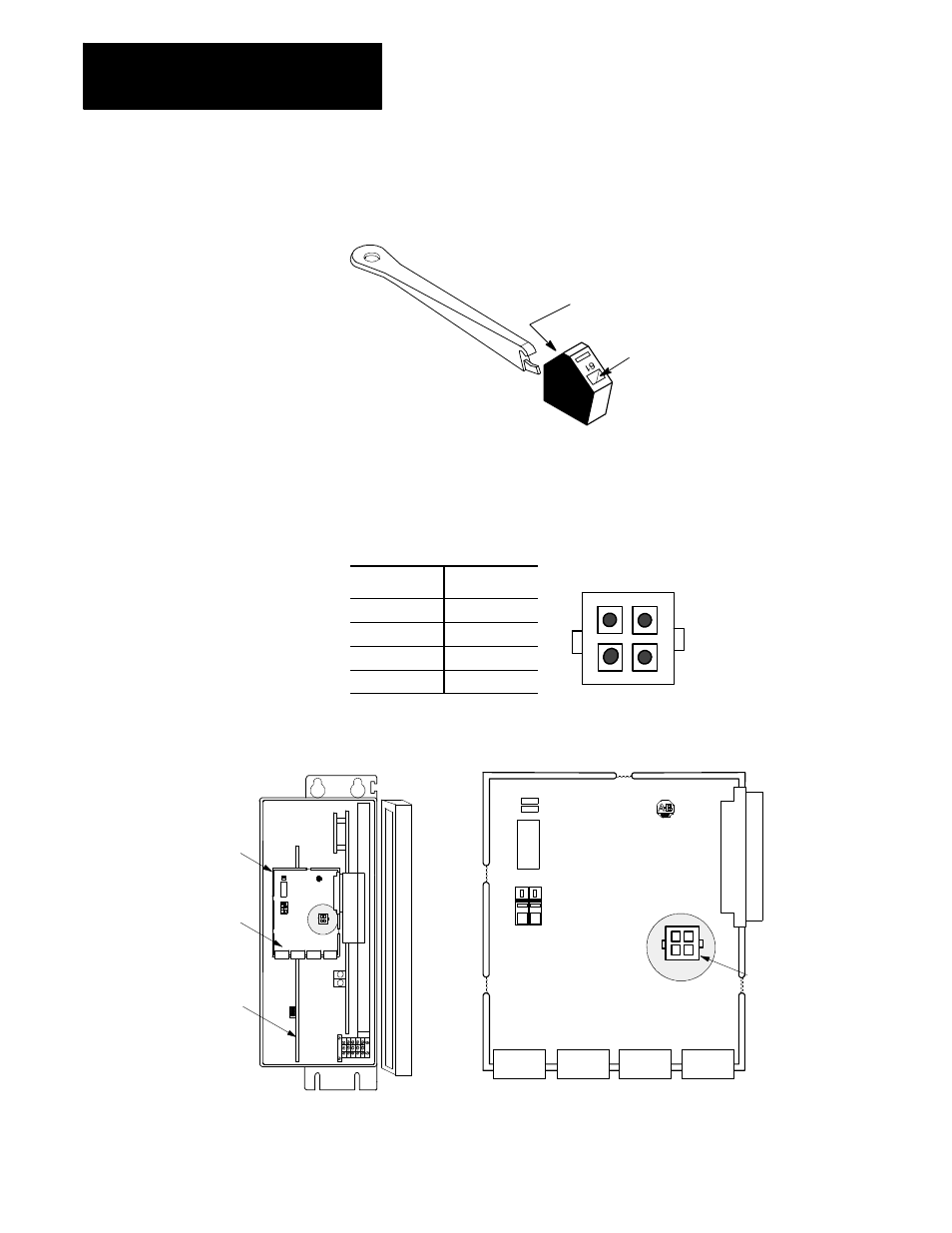

Important: To help you insert and remove wires on the Input Wiring
Board, the supplied “Terminal Block Operating Tool” (pictured below)
should be used as shown.
Bare, Stripped Wire
Insert (or Remove)
in Rear Slot to Release Lock
Insert Tool
TB3 contains four test points used for testing power supply voltage on the
CNC interface board. Test voltages are as follows:
TB3 Test Point Voltage
TB3-1
+5V dc
TB3-2
Common
TB3-3
+15Vdc
TB3-4
--15Vdc
CNC Wiring Board
CNC Interface Board
System Module
Resolver Connectors
2
TB1
1
DROK
TB3
FB3
FB2
FB1
FB0
J4
(cover removed)
CNC Wiring Board
Low Voltage
Test Points
11A.6
1394 Low Voltage Test
Points (TB3)
TB3
1
2
3
4
