I/O Interface
Section 10A
10A-43
Table 10A.AE lists the power requirements for the analog I/O.
Table 10A.AE
E- Series Analog I/O Power Requirements
Item Specifications
Rated Input Voltage 115/230 V ac 50/60 Hz
Input Voltage Range 85-132 V ac, 170-265 V ac, 47 Hz-63Hz
Power Consumption Less than 15 VA
Fuse Rating 315mA/250V
Power ON Indicator Lights up when +5V and ± 15V are
supplied to internal circuit
Connection Terminal Block

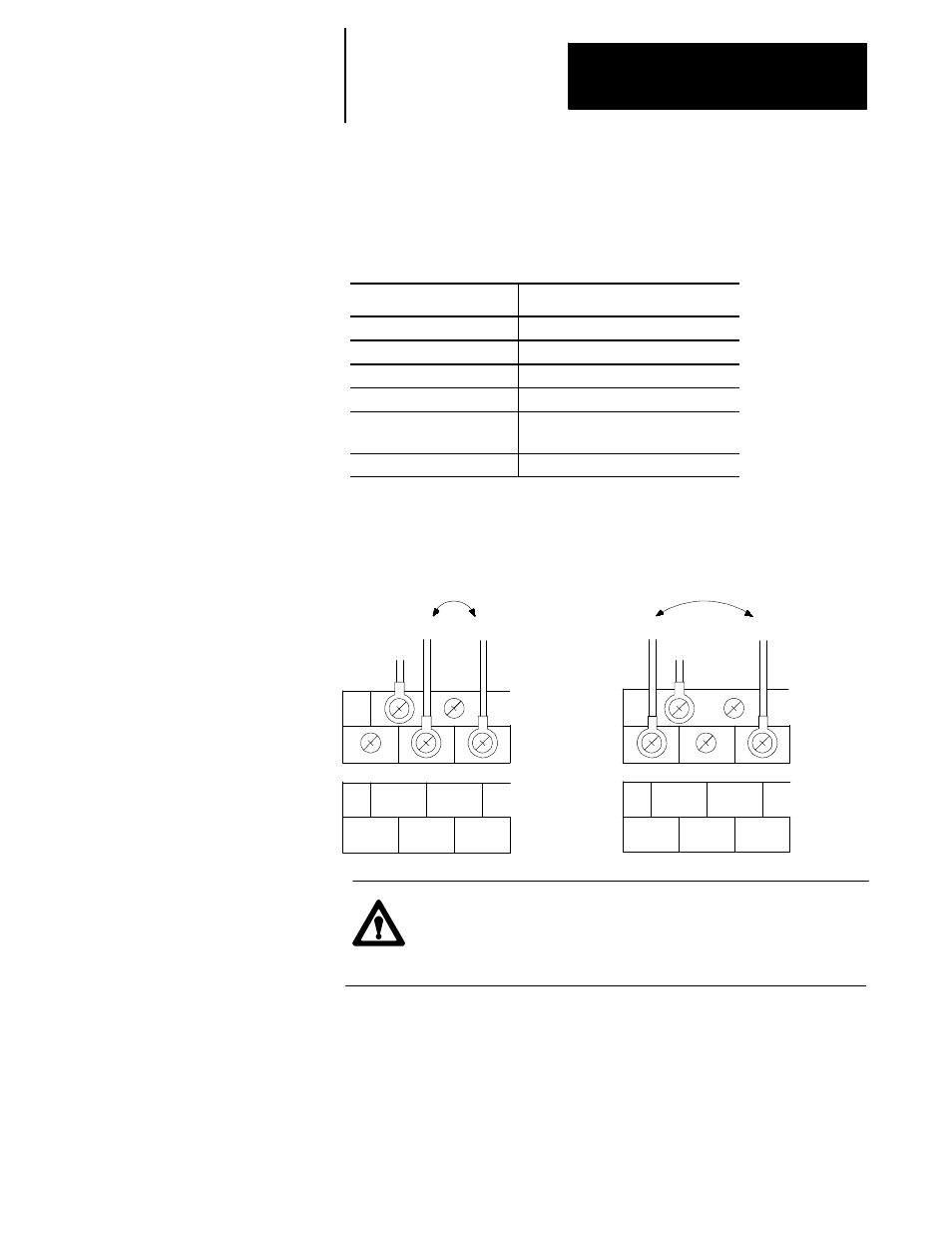

Figure 10A.34 shows the terminals of analog I/O terminal block used for
power source connection.
Figure 10A.34
E- Series Analog I/O Power Source Connection
CHASSIS
GND
NOT
USED
230V ac
NEUT
115V ac
NEUT
115/230
V ac
Terminal
Block
Label
Terminal
Block
Label
CHASSIS
GND
NOT
USED
230V ac
NEUT
115V ac
NEUT
115/230
V ac
115V ac
L H
To frame To frame
L H
230V ac
11339-I
ATTENTION: Incorrect wiring can cause damage to the
analog I/O power supply. Do not jumper the 115V ac NEUT
and the 230 V ac NEUT together. Do not jumper the 115V ac
NEUT or the unused 230V ac to the Chassis GND terminal.
10A.5.1
E- Series Analog I/O
Specifications
