Rockwell Automation 8520 9/Series CNC Integration Maintenance Manual Documentation Set User Manual
Page 613
Section 11A
Connecting 1394 Digital Drive Systems
11A-8
The 1394 digital drive must be placed in the 9/Series fiber optic ring.
Configure this drive into the I/O ring using the I/O configuration utility as
discussed in your 9/Series PAL Reference Manual. Since multiple 1394
drives (up to four) are allowed into the 9/Series I/O ring each drive must be

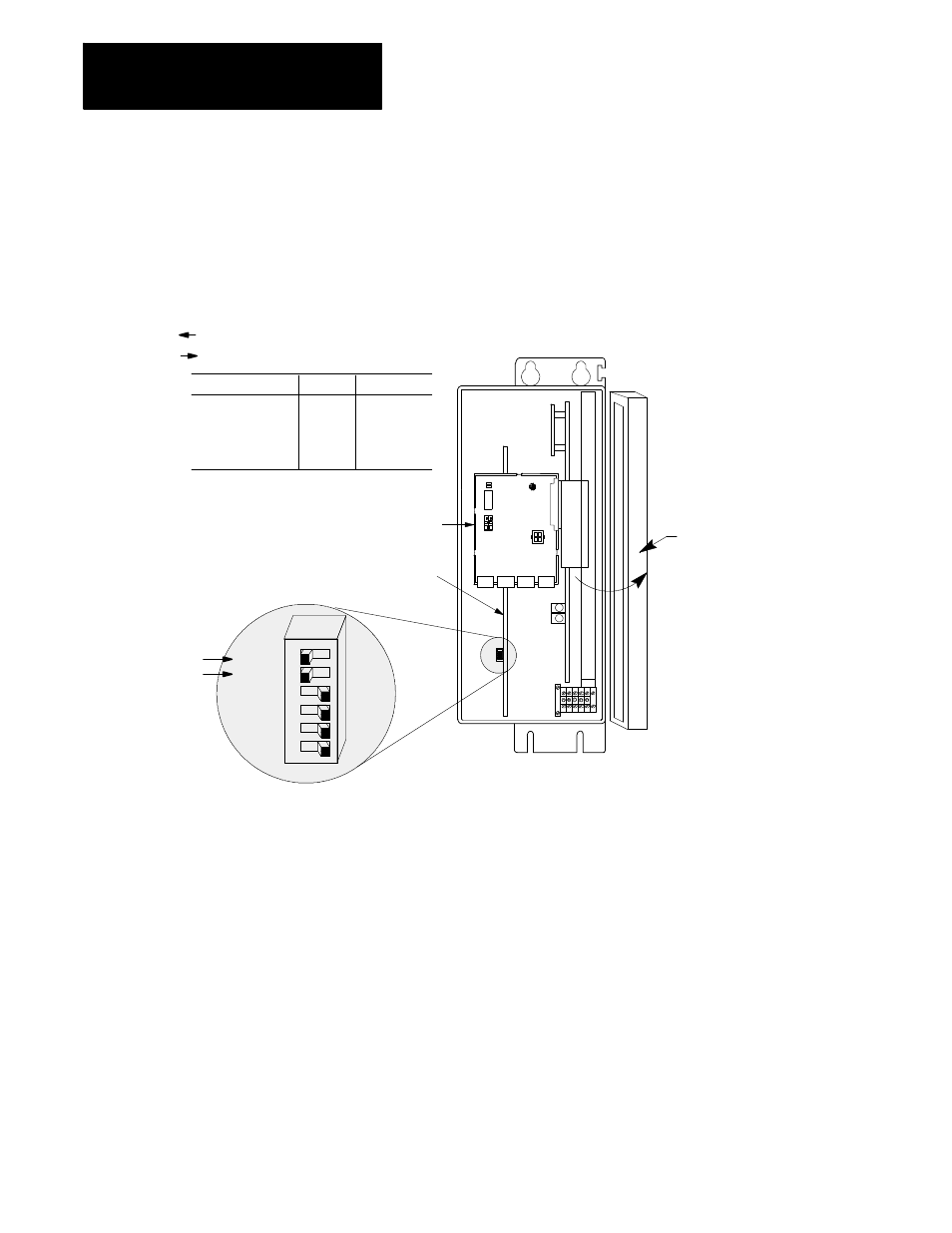

given an independent ASRN address on the ring. This ASRN ring
address is selected using a dip switch on the CNC interface module.
Open Cover
Switch SW1
Left (away from Interface Board) = Off
Right (towards interface board) = On
CNC Wiring Board
CNC Interface Board
System Module
ASRN 0
ASRN 1
AXIS 4
AXIS 3
AXIS 2
AXIS 1
Address
ASRN1
ASRN0
Address 00
Left
Left
Address 01
Left
Right
Address 02
Right
Left
Address 03
Right
Right
Press Cover
Release to Open
11A.4
1394 Addressing and Fiber
Optic Connections
