Section
2B
2B-1
Mounting Dimensions
9/230 Component Enclosure
This section covers the dimensions and weight of the component for the
9/230. The dimensions outside of the brackets are given in millimeters and
inside the brackets in inches. For additional information on this component
refer to page 3A-1.

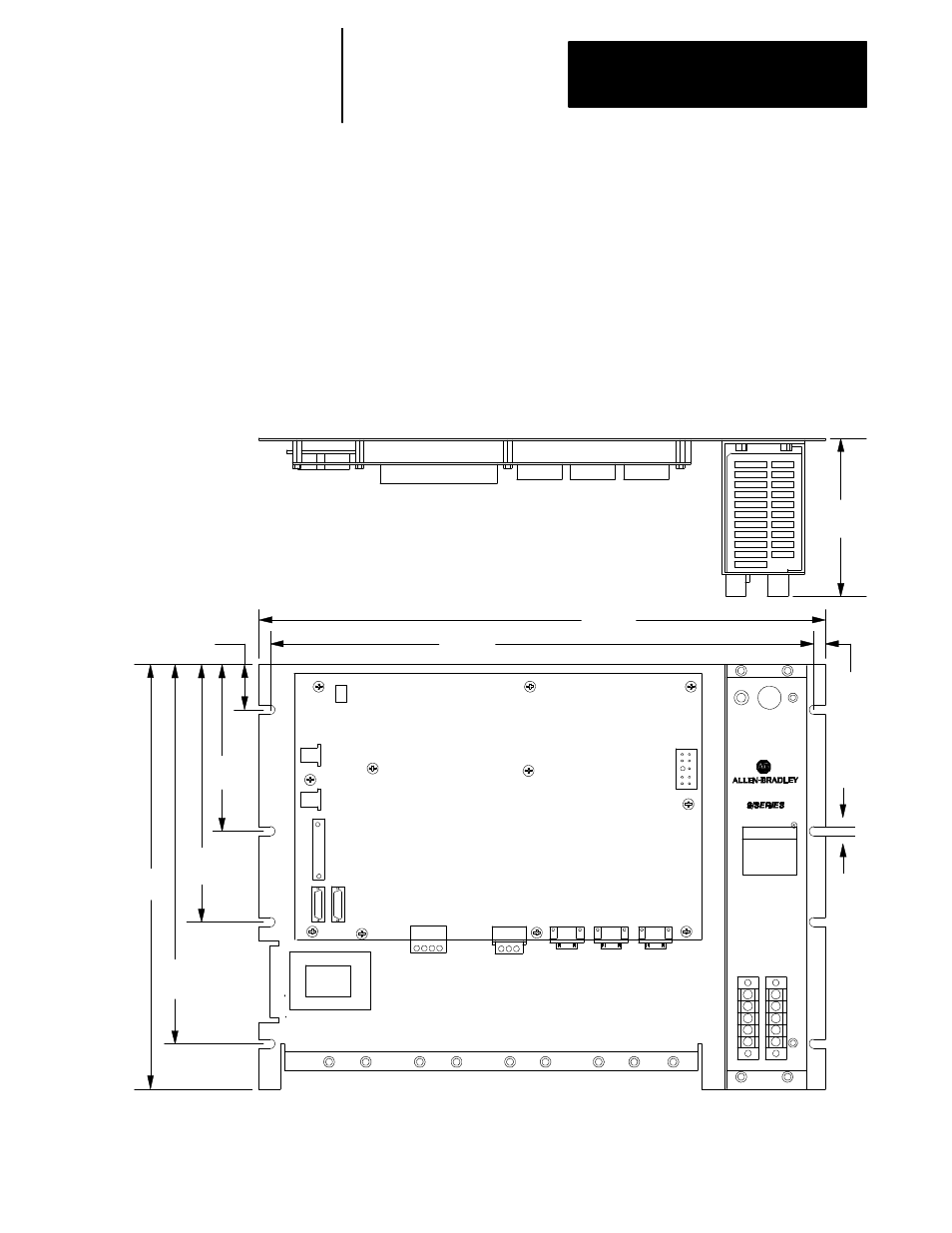

Figure 2B.1
9/230 Analog Component Enclosure Dimensions
37.3
(1.47)
138.9
(5.47)
215.1
(8.47 )
316.7
(12.47)
354.0
(13.94 )
465.1
(18.31 )
482.6
(19.0)
19415
143
(5.60)
8.8
(.34 5)
TB2 TB3 J3 J2 J1
TB1
INPUT
115/230V
8A/5.5A
47 - 63 Hz
mm
(in.)
6.5
(.26)
The 9/230 enclosure weighs 6.2 kg (13.7 lb).
2B.0
Processor Dimensions
