I/O Interface
Section 10A
10A-41
Different types of I/O devices can have the same node address, but devices
of the same type must each have a unique node address. Each
high--density I/O module is assigned a unique node address in the I/O
assignment file of ODS. This address corresponds to a switch setting on
the high--density I/O module.

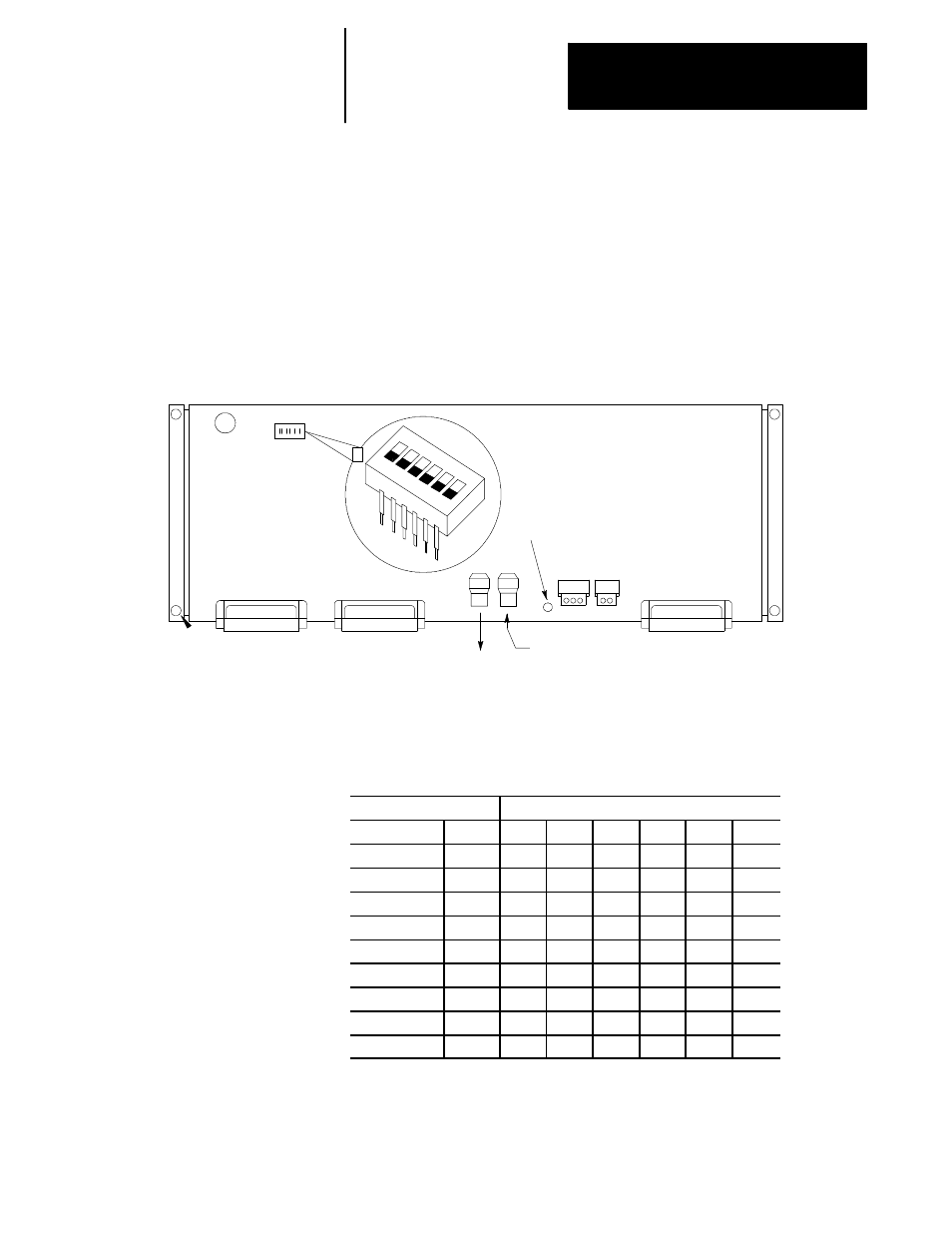

Figure 10A.32 shows the location of the node address switch assembly on
the high--density I/O.
Figure 10A.32
High- density I/O Module Switch Assembly Location
Optical connector
OP24 (IN) Optical connector
OP23 (OUT)
CN61M CN62M CN63F
Fuse
DIP switch
I/O Inputs I/O Outputs I/O Inputs
I/O Ring
Fault Indicator
BT33
1 2
3 4
5 6
ON
Set the switch assembly to correspond to the node address as shown in
Table 10A.AD.
Table 10A.AD
High- density I/O Module Node Address Setting
Node Address Switch Assembly Position
Hexadecimal Binary 1 2 3 4 5 6
00 00 0000 OFF OFF OFF OFF OFF OFF
01 00 0001 OFF OFF OFF OFF OFF ON
02 00 0010 OFF OFF OFF OFF ON OFF
. . . . . . . .
. . . . . . . .
. . . . . . . .
3D 11 1101 ON ON ON ON OFF ON
3E 11 1110 ON ON ON ON ON OFF
3F 11 1111 ON ON ON ON ON ON
10A.4.4
High Density I/O Module
Node Address Setting
