Rockwell Automation 8520 9/Series CNC Integration Maintenance Manual Documentation Set User Manual
Page 239
Section 4D
Power Distribution and Wiring Guidlines
4D-9
Connecting the Power Supply to the MTB Panel ON/Off Switch
Terminal block BT04 terminals ON-SW, COM and the OFF-SW are
connected to terminal block BT-20 terminals ON, COM and OFF on the
MTB panel using the ON/OFF signal cable C01. Figure 4D.7 shows
terminal block BT-20 on the MTB panel.

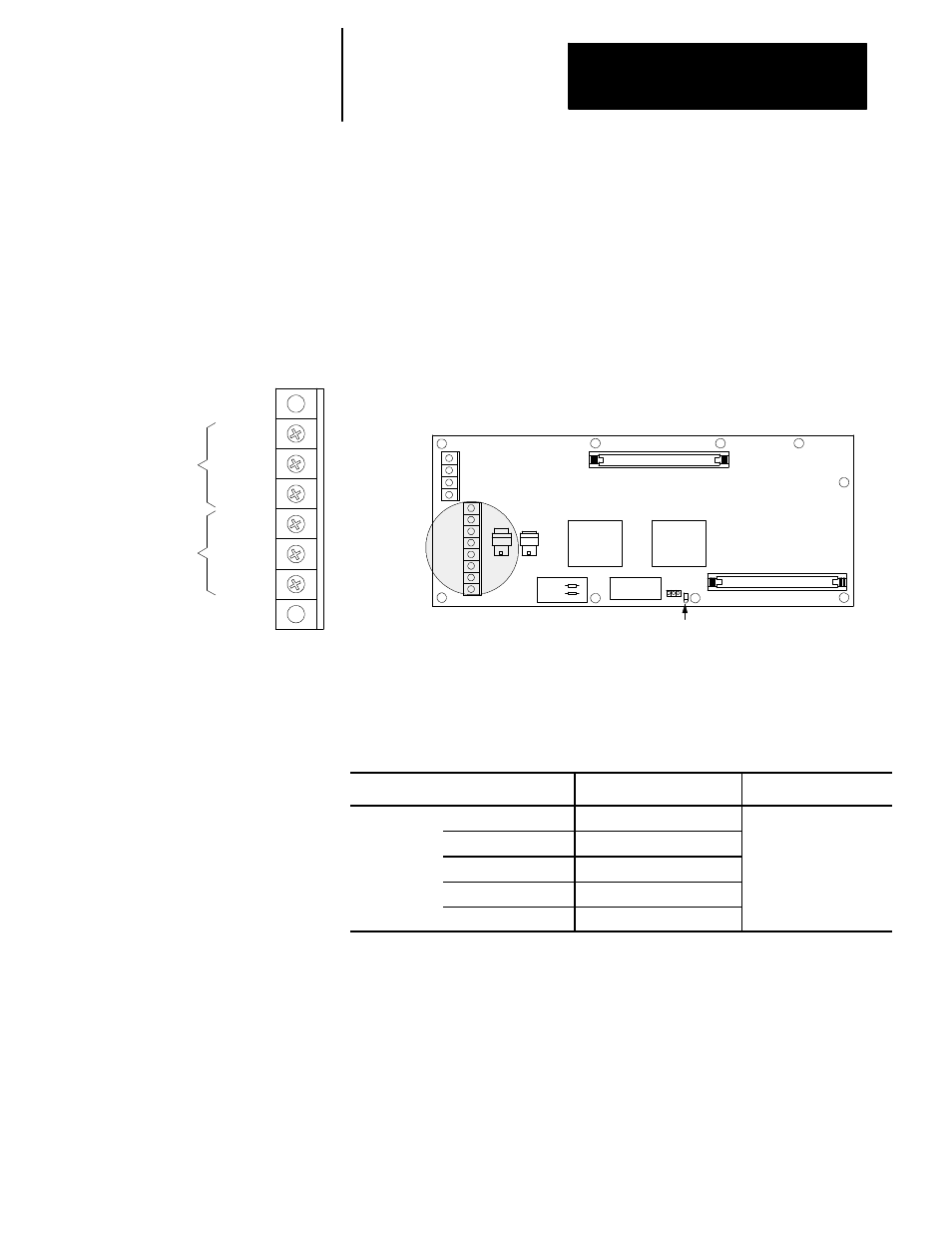

Figure 4D.7
MTB Panel ON/OFF Switch Connection
To Main Power
Supply (BT04)
To Motherboard/
Processor Board
(TB1)
PWR
ON
PWR
COM
PWR
OFF
ESTOP
ESTOP
COM
RESET
BT20
MTB Panel
+12V
GND
OP11
(out)
OP12
(in)
CN51
CN52
I/O ring fault indicator
JPR1
JPR2
Table 4D.B
Operator Panel or Portable Operator Panel Interface Assembly
Power Supply Input Power Specifications
Item
Specifications
Remark
Input
Rated Input
115/230V ac --- 50/60Hz
Input Range
90-265V ac --- 47-63Hz
Power Consumption
55 Watts
Fuse
2A/250V
Connection
Terminal Block
