Section 4C
Connecting the 4-axis Servo Module
4C-10
Servo Module Interface Connector - P1
The servo module is interfaced with the motherboard through connector
P1. The control transmits and receives various signals to and from the
servo module through this connector.
Servo Connectors - J1, J2, J3, and J4
The servo module sends drive signals to the servo amplifier through the
connectors labeled J1, J2, J3, and J4. Figure 4C.7, Figure 4C.8, and
Figure 4C.9 show an end views of one of these connectors and lists the pin
assignments for the different versions of 4-axis modules.

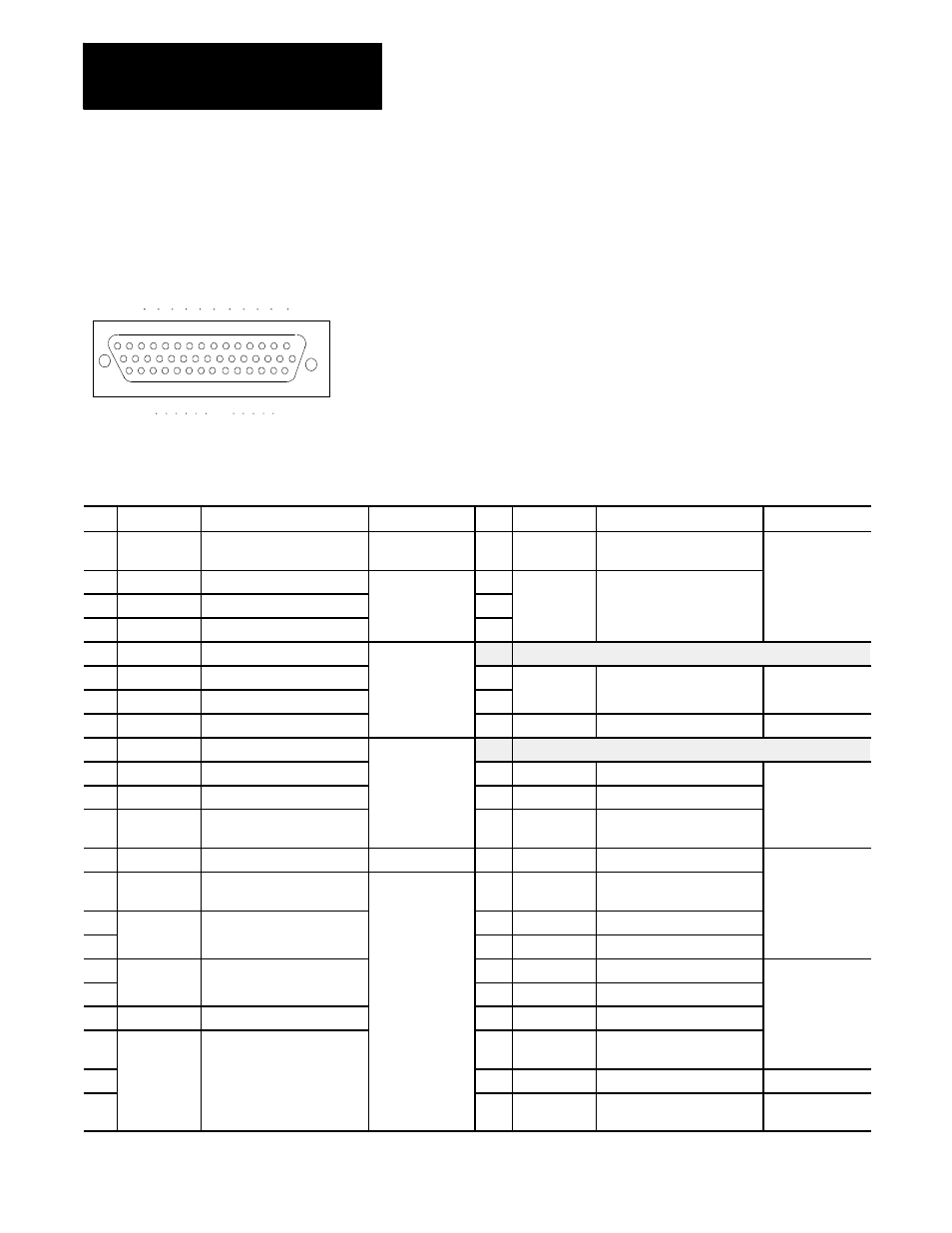

Figure 4C.7
Pinout for the Servo Connectors on 8520-ENC4
Pin Signal Description Connect Pin Signal Description Connect
1 Shield Chassis Ground Not Used 23 EXT_BAT Battery +/-- for absolute
encoder
Feedback Device
2 CHU_HI Channel U Sense_HI Feedback Device 24 +5V_ENC +5V Encoder Power Supply
3 CHV_HI Channel V Sense_HI 25
4 CHW_HI Channel W Sense_HI 26
5 /PWM_A_LO Current Cmd for Phase A_LO Servo Amplifier 27
6 /PWM_B_LO Current Cmd for Phase B_LO 28 GND Encoder Return Feedback Device
7 /PWM_C_LO Current Cmd for Phase C_LO 29
8 STATUS Amplifier Status_HI 30 Shield Chassis Ground Not Used
9 CHZ_LO Feedback device Channel Z Feedback Device 31
10 CHB_HI Feedback device Channel B 32 CHU_LO Channel U Sense_LO Feedback Device
11 CHA_HI Feedback device Channel A 33 CHV_LO Channel V Sense_LO
12 I
FDBK Phase B
(lb)
Current sensing from
feedback Phase _B
34 CHW_LO Channel W Sense_LO
13 ENABLE Motor Amplifier Enable_HI Servo Amplifier 35 PWM_A_HI Current Cmd for Phase A_HI Servo Amplifier
14 I
FDBK Phase A
(la)
Current sensing from
feedback Phase _A
Feedback Device 36 PWM_B_HI Current Cmd for Phase B_HI
15 GND Encoder Return 37 PWM_C_HI Current Cmd for Phase C_HI
16 38 /STATUS Amplifier Status_LO
17 +15V_ENC +15V Encoder Power Supply 39 CHZ_HI Feedback device Channel Z Feedback Device
18 40 CHB_LO Feedback device Channel B
19 GND Encoder Return 41 CHA_LO Feedback device Channel A
20 +5V_ENC +5V Encoder Power Supply 42 /I
FDBK Phase B
(/lb)
Current sensing from
feedback Phase _B
21 43 /ENABLE Motor Amplifier Enable_LO Servo Amplifier
22 44 /I
FDBK Phase A
(/la)
Current sensing from
feedback Phase _A
Feedback Device
