Section 7C
Power Distribution and Wiring Guidlines
7C-9
Table 7C.A
Allen-Bradley Surge Suppressors
Device Coil Voltage Surge Suppressor Catalog No.
Bulletin 509 Motor Starter
Bulletin 509 Motor Starter
120V ac
240V ac
599--K04
5990KA04
Bulletin 100 Contactor
Bulletin 100 Contactor
120V ac
240V ac
199--FSMA1
199--FSMA2
Bulletin 709 Motor Starter 120V ac 1401--N10
Bulletin 700 R, RM Type Relay ac coil (surge suppressor not required)
Bulletin 700 R Type Relay
Bulletin 700 RM Type Relay
12V dc
12V dc
700--N22
700--N28
Bulletin 700 R Type Relay
Bulletin 700 RM Type Relay
24V dc
24V dc
700--N10
700--N13
Bulletin 700 R Type Relay
Bulletin 700 RM Type Relay
48V dc
48V dc
700--N16
700--N17
Bulletin 700 R Type Relay
Bulletin 700 RM Type Relay
115--125V dc
115--125V dc
700--N11
700--N14
Bulletin 700 R Type Relay
Bulletin 700 RM Type Relay
230--250V dc
230--250V dc
700--N12
700--N15
Bulletin 700 N, P Type Relay 150V MAX. ac 700--N24
Electromagnetic device
whose sealed power is
limited to 35 VA.
150V max. ac or dc

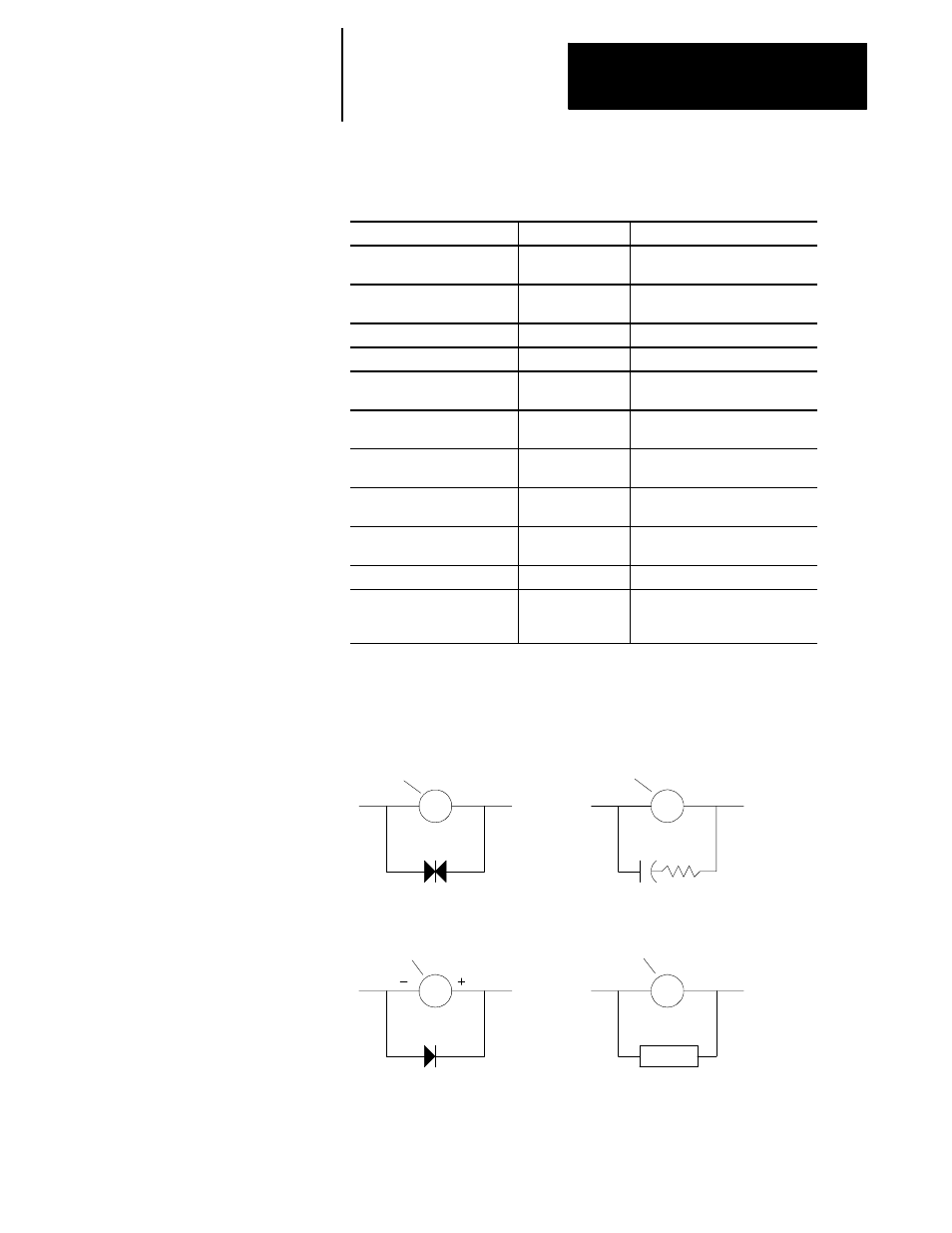

Typical surge protection circuit examples are shown in Figure 7C.11.
Figure 7C.11
Surge Protection Circuits for Inductive Load
Inductive output device Inductive output device
DC inductive load AC inductive load
Varistor RC circuit
Diode Surge suppressor 11247-I
