Brocade TurboIron 24X Series Configuration Guide

625

53-1003053-01

Configuring OSPF

NOTE

When you establish an area virtual link, you must configure it on both of the routers (both ends of
the virtual link).

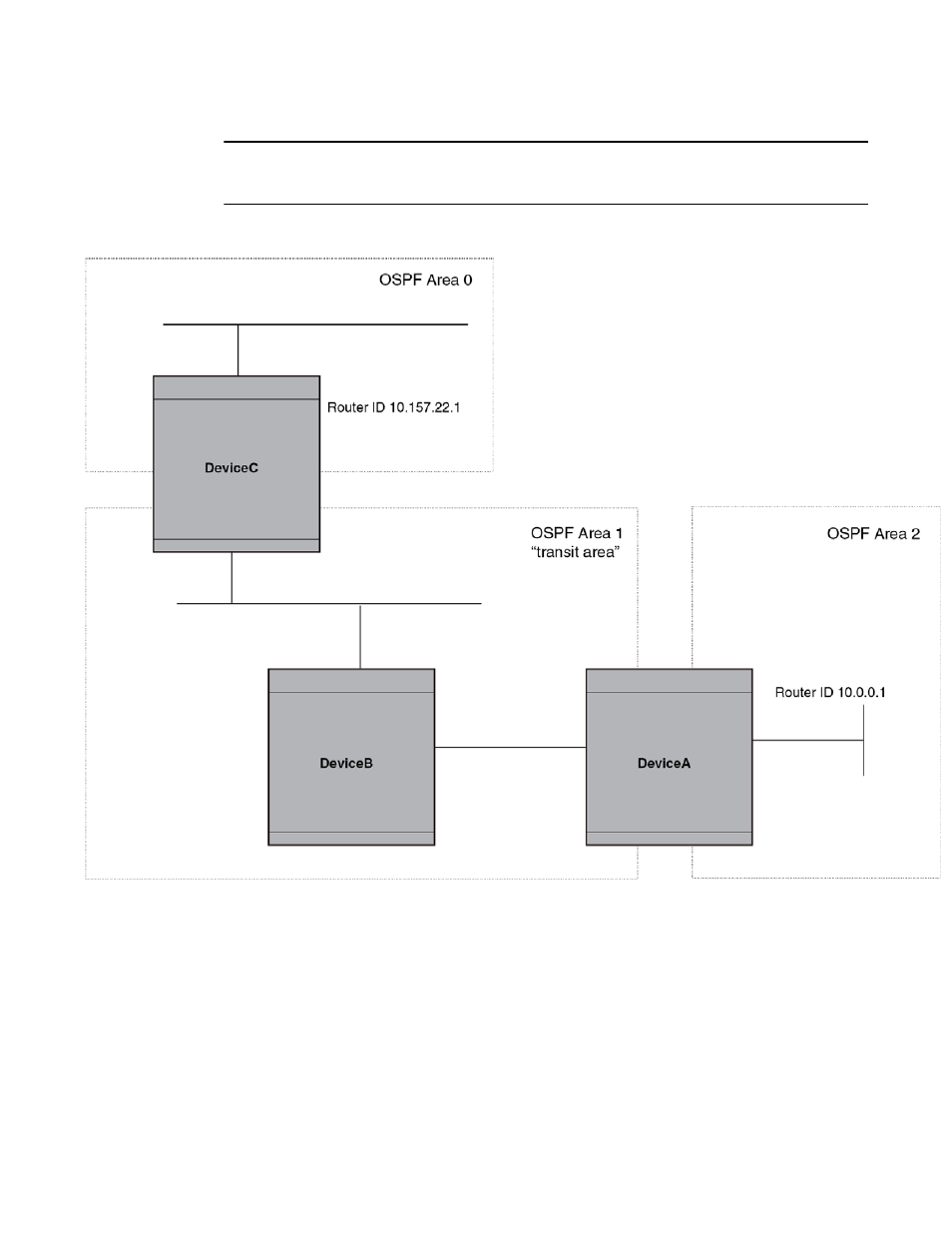

FIGURE 99

Defining OSPF virtual links within a network

Example

Figure 99

shows an OSPF area border router, DeviceA, that is cut off from the backbone area (area

0). To provide backbone access to DeviceA, you can add a virtual link between DeviceA and
DeviceC using area 1 as a transit area. To configure the virtual link, you define the link on the
router that is at each end of the link. No configuration for the virtual link is required on the routers
in the transit area.

To define the virtual link on DeviceA, enter the following commands.

TurboIronA(config-ospf-router)#area 1 virtual-link 10.157.22.1

TurboIronA(config-ospf-router)#write memory

Enter the following commands to configure the virtual link on DeviceC.
