Configuring STP related features
• Synced and Agree – When all the ports on the bridge assert their synced signals, the new Root
port asserts its own synced signal and sends an RST BPDU to Port4/Switch 60 that contains
an agreed flag (
Figure 74 ). The Root port also moves into a forwarding state.

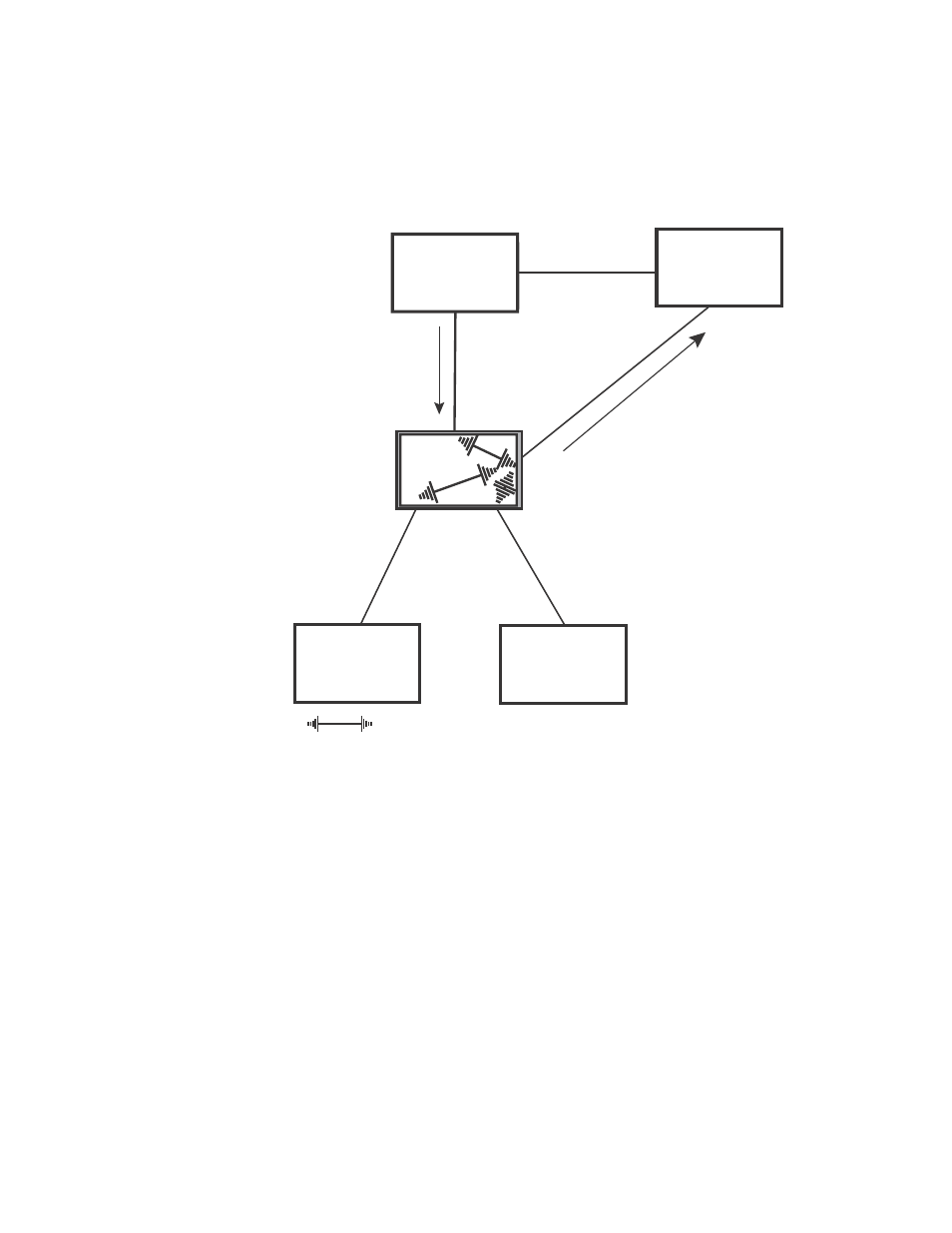

FIGURE 75 Rerooted, synced, and agreed
The old Root port on Switch 200 becomes an Alternate Port ( Figure 76 ). Other ports on that bridge
are elected to appropriate roles.
BigIron
Switch 100
Port2
Designated
port
Switch 60
Port4
Designated port
Forwarding
Port 2
Root port
Port1
Proposing
Port1
Rerooted
Synced
Discarding
Port4
Root port
Rerooted
Synced
Forwarding
Port3
Rerooted
Synced
Discarding
Port2
Rerooted
Synced
Discarding
Port2 Port3
Switch 300
Indicates a signal
Switch 200
Switch 400
RST BPDU
sent with
an Agreed
flag
