Layer 3 protocol-based vlans – Brocade TurboIron 24X Series Configuration Guide User Manual
Page 397
Brocade TurboIron 24X Series Configuration Guide
363
53-1003053-01
VLAN overview
Layer 3 protocol-based VLANs
If you want some or all of the ports within a port-based VLAN to be organized according to Layer 3
protocol, you must configure a Layer 3 protocol-based VLAN within the port-based VLAN.
You can configure each of the following types of protocol-based VLAN within a port-based VLAN. All
the ports in the Layer 3 VLAN must be in the same Layer 2 VLAN.
Layer 3 protocol-based VLANs are as follows:
•
AppleTalk – The device sends AppleTalk broadcasts to all ports within the AppleTalk protocol
VLAN.
•
IP – The device sends IP broadcasts to all ports within the IP protocol VLAN.
•
IPX – The device sends IPX broadcasts to all ports within the IPX protocol VLAN.
•
DECnet – The device sends DECnet broadcasts to all ports within the DECnet protocol VLAN.
•
NetBIOS – The device sends NetBIOS broadcasts to all ports within the NetBIOS protocol VLAN.
•
Other – The device sends broadcasts for all protocol types other than those listed above to all
ports within the VLAN.

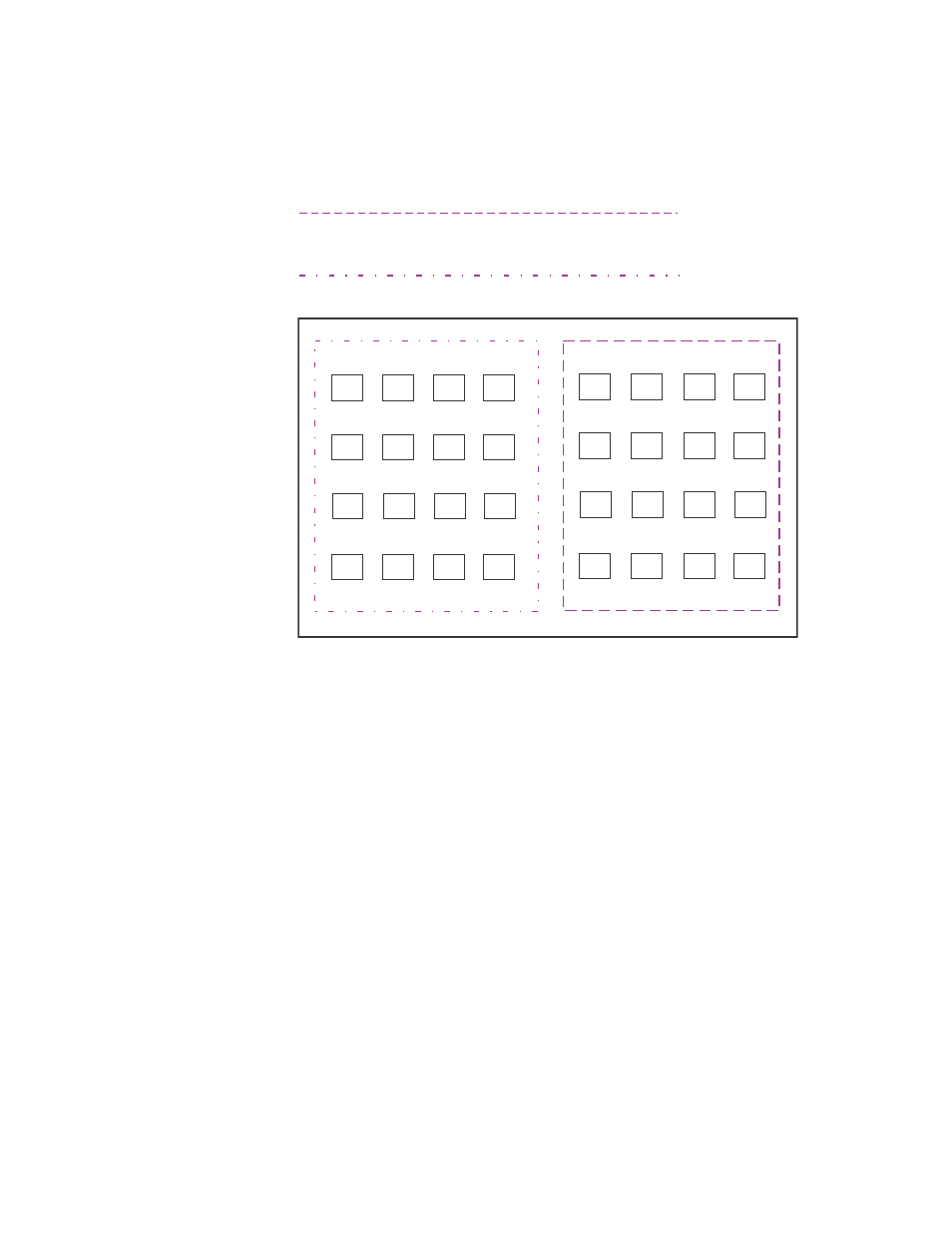

When you add a port-based VLAN,
the device removes all the ports in the
new VLAN from DEFAULT-VLAN.
User-configured port-based VLAN
DEFAULT-VLAN
VLAN ID = 1
Layer 2 Port-based VLAN
