PVST/PVST+ compatibility
Syntax: show span pvst-mode
This command displays the following information.
Configuration examples
The following examples show configuration examples for two common configurations:
• Untagged IEEE 802.1Q BPDUs on VLAN 1 and tagged PVST+ BPDUs on other VLANs
• Tagged IEEE 802.1Q BPDUs on VLAN 1 and untagged BPDUs on another VLAN
Tagged port using default VLAN 1 as its port native VLAN
Figure 90 shows an example of a PVST+ configuration that uses VLAN 1 as the untagged default
VLAN and VLANs 2, 3, and 4 as tagged VLANs.

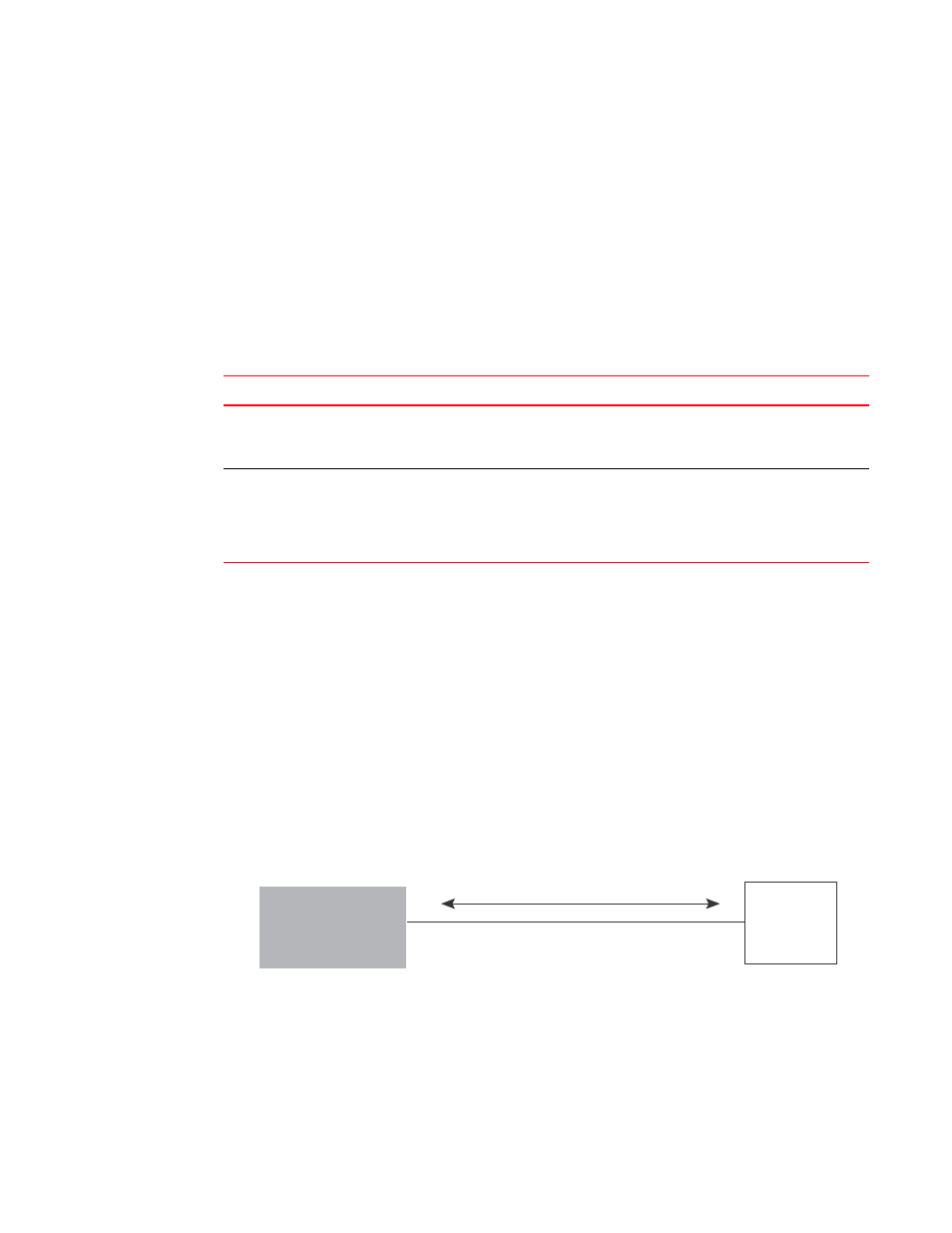

FIGURE 90 Default VLAN 1 for untagged BPDU
To implement this configuration, enter the following commands.
TABLE 93 CLI display of PVST+ information
This field... Displays...
Port The port number.
NOTE: The command lists information only for the ports on which
PVST+ support is enabled.
Method The method by which PVST+ support was enabled on the port. The
method can be one of the following:
•
Set by configuration – You enabled the support.
•
Set by auto-detect – The support was enabled automatically when
the port received a PVST+ BPDU.
TurboIron#show span pvst-mode
PVST+ Enabled on:
Port Method
1 Set by configuration
2 Set by configuration
10 Set by auto-detect
12 Set by configuration
24 Set by auto-detect
Port 2 Port 1
Untagged IEEE BPDU for VLAN 1
Untagged PVST BPDU for VLAN 1
Tagged PVST BPDUs for VLANs 2, 3, 4
Another
device
