534

Brocade TurboIron 24X Series Configuration Guide

53-1003053-01

Configuring STP related features

Synced – Once the Designated port changes into a discarding state, it asserts a synced signal.
Immediately, Alternate ports and Backup ports are synced. The Root port monitors the synced
signals from all the bridge ports. Once all bridge ports asserts a synced signal, the Root port
asserts its own synced signal (

Figure 69

).

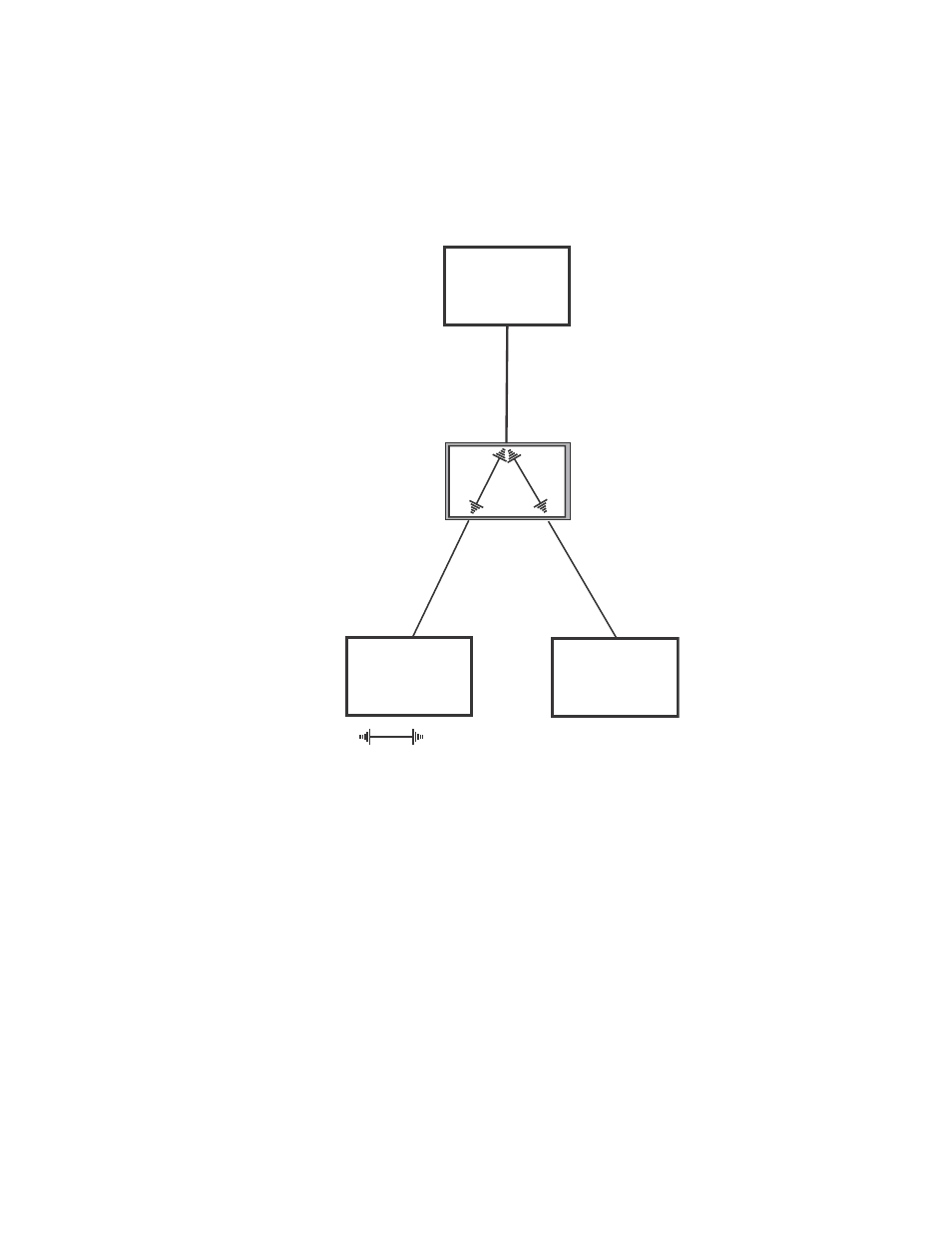

FIGURE 69

Synced stage

BigIron

Switch 100
Root Bridge

Switch 200

Switch 300

Switch 400

Port1
Designated port

Port1
Root port
Synced

Port2

Port3

Indicates a signal

Port2
Synced
Discarding

Port3
Synced
Discarding
