Brocade TurboIron 24X Series Configuration Guide 379
53-1003053-01
Routing between VLANs
Example 2

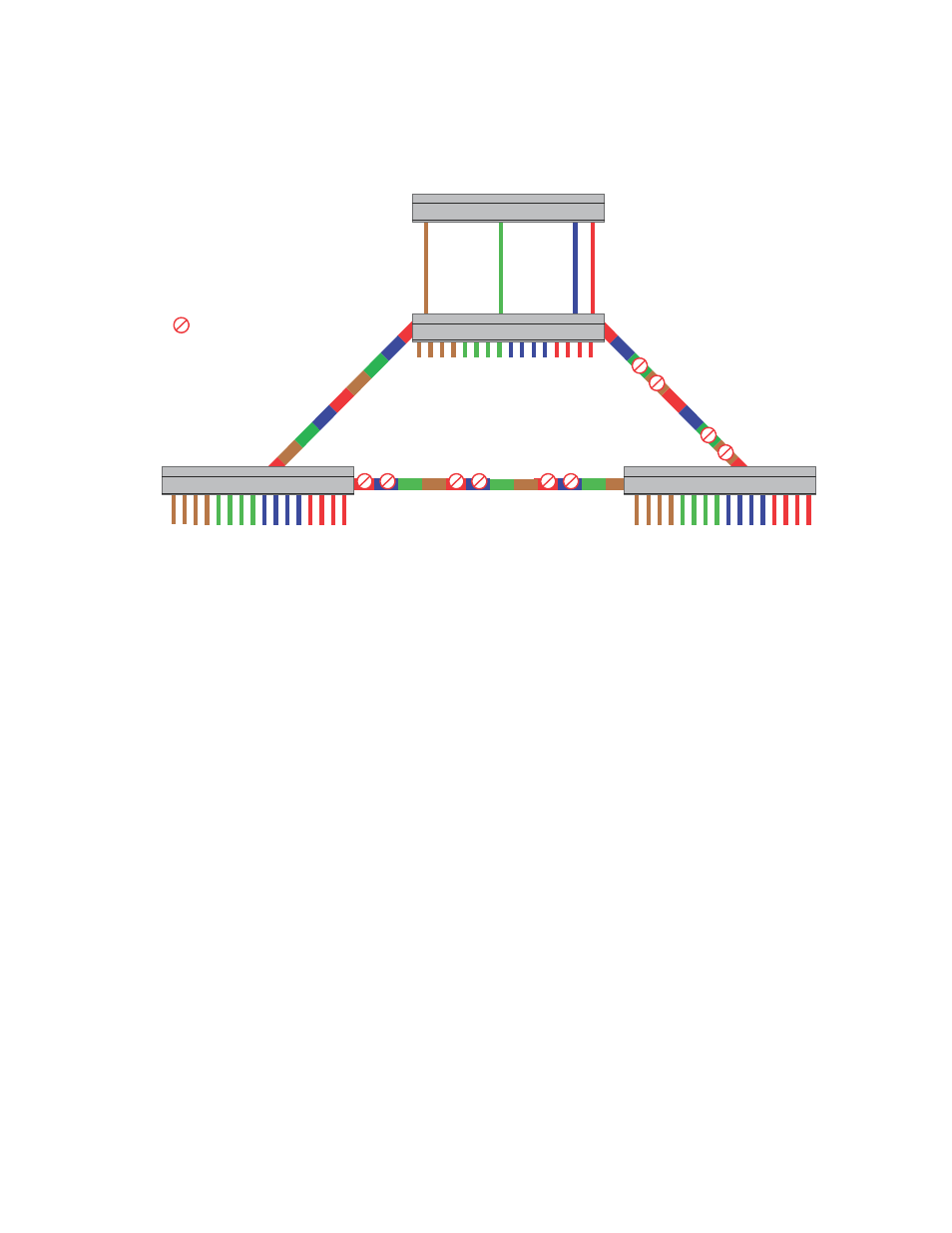

To configure the Port-based VLANs on the Layer 2 Switches in Figure Syntax: , use the following
method.
Configuring device-A
Enter the following commands to configure device-A.
TurboIron> enable
TurboIron#configure terminal
TurboIron(config)#hostname TurboIron-A
TurboIron-A(config)#vlan 2 name BROWN
TurboIron-A(config-vlan-2)#untag ethernet 1 to 4 ethernet 17
TurboIron-A(config-vlan-2)#tag ethernet 25 to 26
TurboIron-A(config-vlan-2)#spanning-tree
TurboIron-A(config-vlan-2)#vlan 3 name GREEN
TurboIron-A(config-vlan-3)#untag ethernet 5 to 8 ethernet 18
TurboIron-A(config-vlan-3)#tag ethernet 25 to 26
TurboIron-A(config-vlan-3)#spanning-tree
TurboIron-A(config-vlan-3)#vlan 4 name BLUE
TurboIron-A(config-vlan-4)#untag ethernet 9 to 12 ethernet 19
TurboIron-A(config-vlan-4)#tag ethernet 25 to 26
TurboIron-A(config-vlan-4)#spanning-tree
TurboIron-A(config-vlan-4)#spanning-tree priority 500
TurboIron-A(config-vlan-4)#vlan 5 name RED
TurboIron-A(config-vlan-5)#untag ethernet 13 to 16 ethernet 20
TurboIron-A(config-vlan-5)#tag ethernet 25 to 26
IP Subnet1
IPX Net 1
Atalk 100.1
Zone “A”
IP Subnet2
IPX Net 2
Atalk 200.1
Zone “B”
IP Subnet3
IPX Net 3
Atalk 300.1
Zone “C”
IP Subnet4
IPX Net 4
Atalk 400.1
Zone “D”
Port17 Port18 Port19 Port20
= STP Blocked VLAN
VLAN 2
Port 1-4
IP Sub1
IPXnet1
AT 100
Zone A
VLAN 3
Port 5-8
IP Sub2
IPXnet2
AT 200
Zone B
VLAN 4
Port 9-12
IP Sub3
IPXnet3
AT 300
Zone C
VLAN 5
Port 13-16
IP Sub4
IPXnet4
AT 400
Zone D
VLAN 2
Port 1-4
IP Sub1
IPXnet1
AT 100
Zone A
VLAN 3
Port 5-8
IP Sub2
IPXnet2
AT 200
Zone B
VLAN 4
Port 9-12
IP Sub3
IPXnet3
AT 300
Zone C
VLAN 5
Port 13-16
IP Sub4
IPXnet4
AT 400
Zone D
VLAN 4
Port 9-12
IP Sub3
IPXnet3
AT 300
Zone C
VLAN 5
Port 13-16
IP Sub4
IPXnet4
AT 400
Zone D
ROOT BRIDGE
FOR
VLAN - BLUE
VLAN - RED
ROOT BRIDGE
FOR
VLAN - BROWN
VLAN - GREEN
VLAN 2
Port 1-4
IP Sub1
IPXnet1
AT 100
Zone A
VLAN 3
Port 5-8
IP Sub2
IPXnet2
AT 200
Zone B
Device-A
Device-B
Device
Device-A
Device-B Device-C
