802.1s Multiple Spanning Tree Protocol
Forcing ports to transmit an MSTP BPDU
To force a port to transmit an MSTP BPDU, use a command such as the following at the Global
Configuration level.
TurboIron(config)#mstp force-migration-check ethernet 1
Syntax: [no] mstp force-migration-check ethernet
The variable specifies the port or ports from which you want to transmit an MSTP
BPDU.
Activating MSTP on a switch
MSTP scope must be enabled on the switch as described in “Configuring MSTP mode and scope”
on page 580 before MSTP can be enabled.
To enable MSTP on your switch, use the following at the Global Configuration level.
TurboIron(config)#mstp start
Syntax: [no] mstp start
The [no] option disables MSTP from operating on a switch.
Example
In Figure 93 four device routers are configured in two regions. There are four VLANs in four
instances in Region 2. Region 1 is in the CIST.

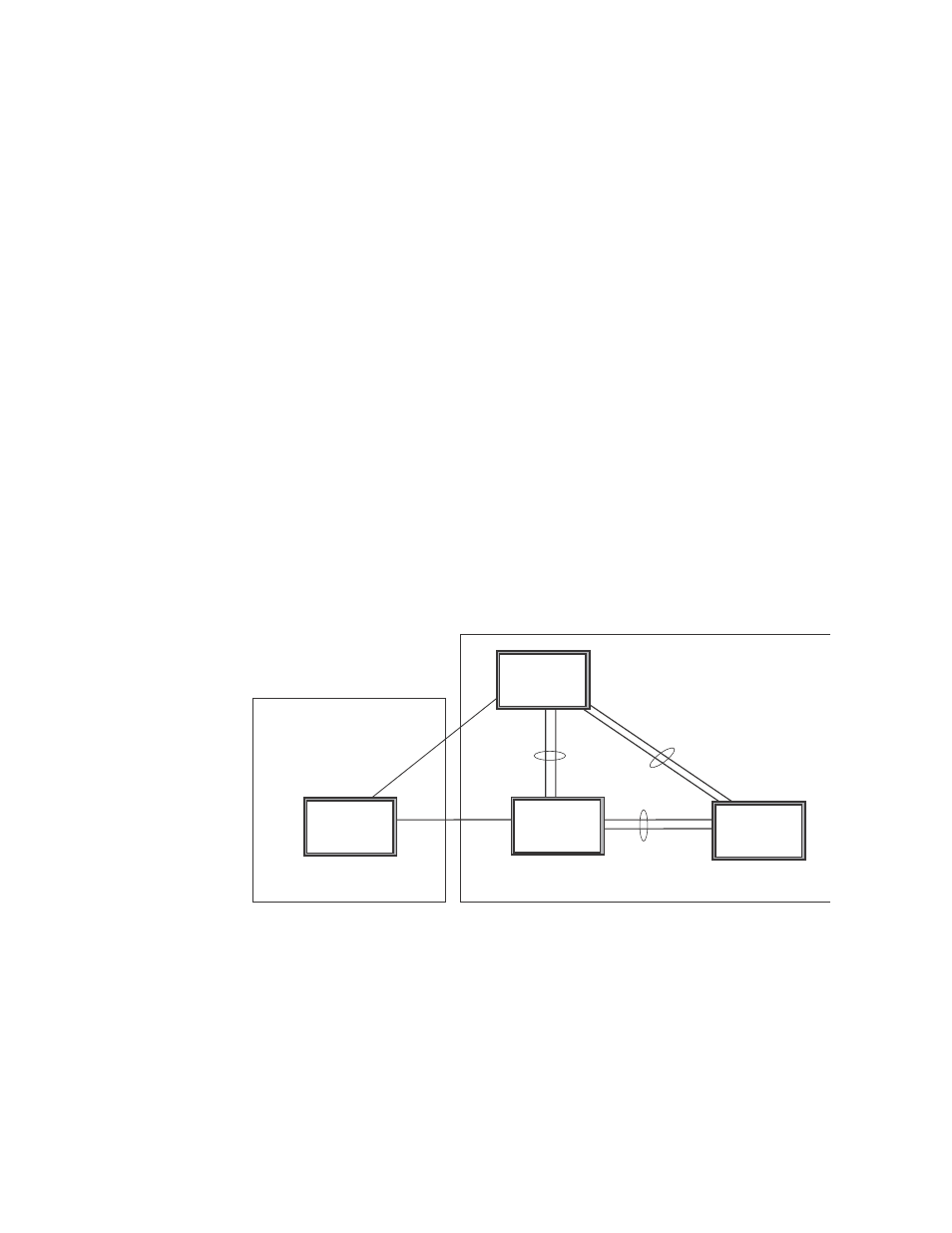

FIGURE 93 Sample MSTP configuration
RTR1 configuration
TurboIron(config-vlan-4093)#tagged ethernet 1 to 2
TurboIron(config-vlan-4093)#exit
TurboIron(config)#mstp scope all
TurboIron(config)#mstp name Reg1
TurboIron(config)#mstp revision 1
TurboIron(config)#mstp admin-pt2pt-mac ethernet 1 to 2
TurboIron(config)#mstp start
TurboIron(config)#hostname RTR1
BigIron
BigIron
BigIron
BigIron
Core1
Core2
LAN4
RTR1
Region 1
Region 2
Port 1
Port 2 Port 10
Ports
1-2
Ports
13-14
Ports
9-12
Ports
17-20
Ports
5-6 Ports
5-6
Port
16
