Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 97
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
The dialog shows the current port configuration. To select a port configuration, click the
down arrow to display the Select Port Configuration dialog.

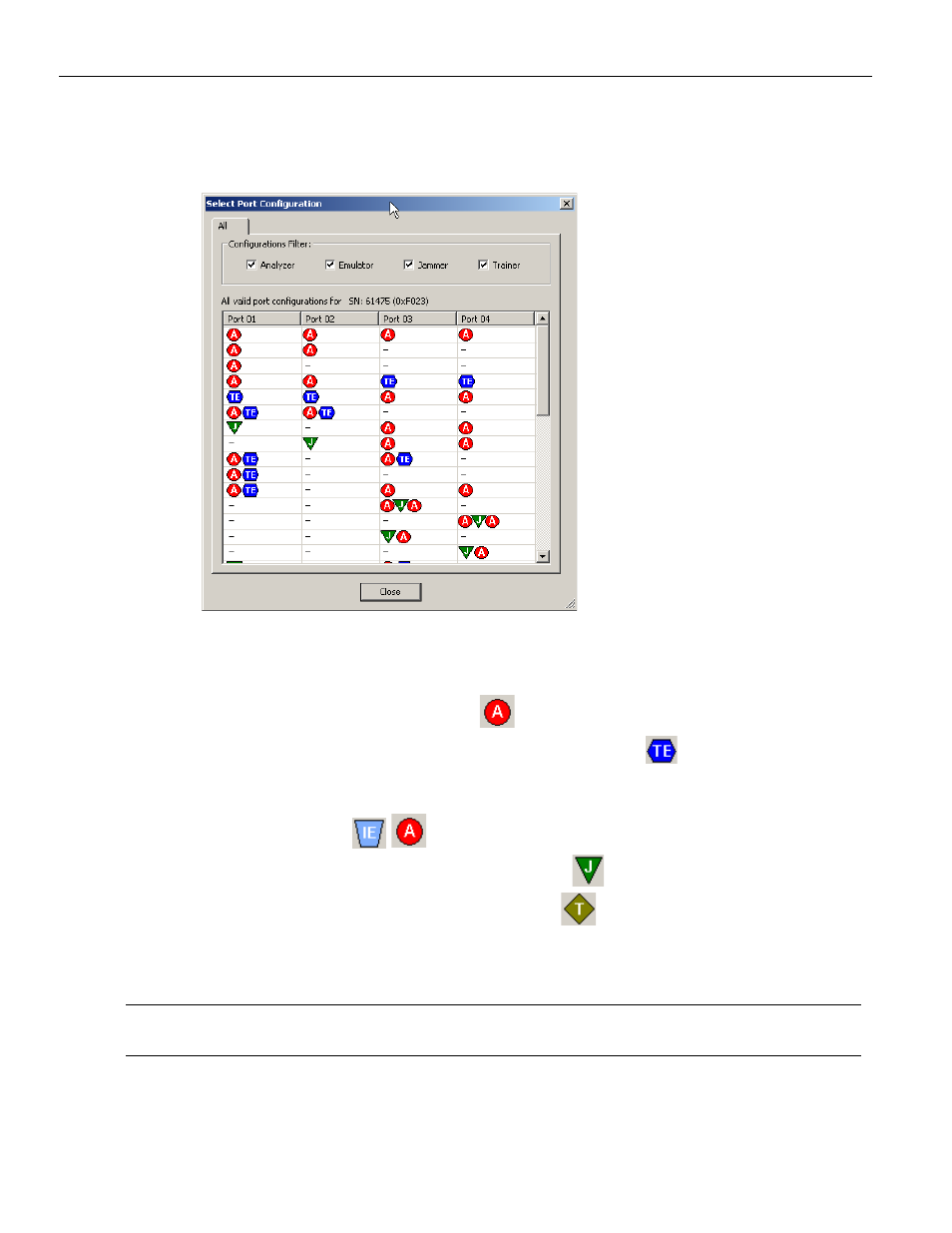

Figure 2.70: SAS: Select Port Configuration Dialog
Port configuration depends on the application you run.
 To act as analyzer, select the Analyzer port configuration.
 To activate a Device emulator on a port, select the 
TargetEmulator port configuration.
 To activate the Initiator Emulator on a port and run the Analyzer on the same
port, select InitiatorEmulator/Analyzer.
 To activate the InFusion on a port, select Jammer.
 To activate the Trainer on a port, select Trainer.
Sierra M6‐2 can have Analyzer and Trainer or Analyzer and Jammer on the same port.
Note:
To display the current Port Configuration, click the green button in the lower right corner to
display the Port Status window (see “Port Status” on page 211 ).
