LeCroy Corporation Display Configuration
246 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Set As Default
If you want to set these SAS address aliases for sample files that will be captured later,
you can set them as default, and new samples will be opened by these default SAS
address aliases.
Tx Vout
The analyzer incorporates the ability to select TX Vout for the transmitter on each port.
Selecting TX Vout increases the output voltage swing above the nominal value, for test
and characterization purposes. This feature is also useful to compensate for line loss
when driving long cables.

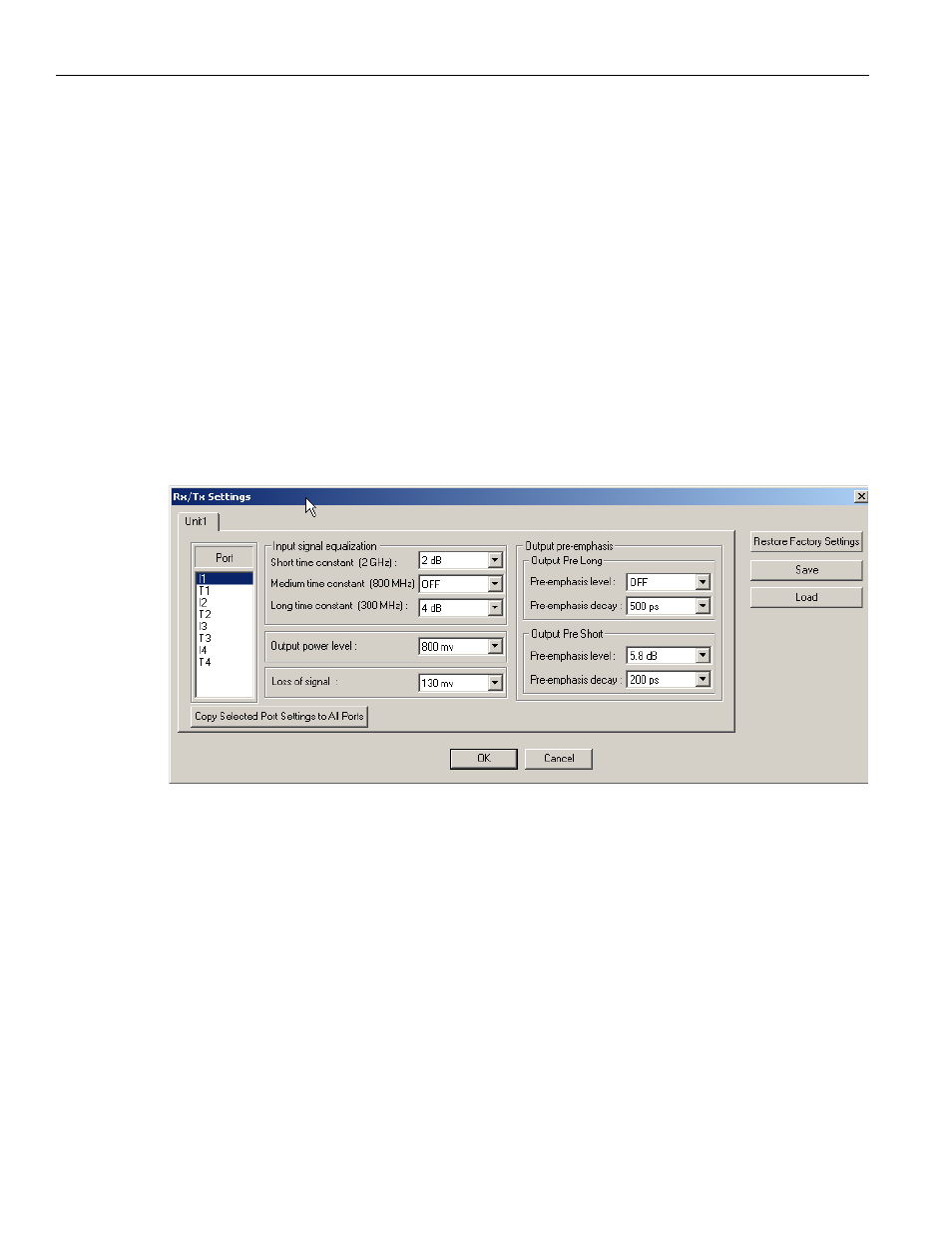

To select TX Vout, select Configuration > Tx Vout & Preemphasis to display the 
Rx/Tx Settings dialog:
Figure 3.73: Choose Port for TX Vout
Copy Selected Port Settings to All Ports implements one port's setting into all other port
settings.
Restore Factory Settings restores default values.
Save saves the new values as a *.sng file.
Load loads back the saved *.sng file.
Software Settings
Software settings allows you to define template files for new Analyzer projects, to specify
how sample files appear when opened, and to set ATAPI and SCSI Spec Assignments.
To perform software settings in an open sample view, click Configuration on the toolbar
and choose Software Settings.
